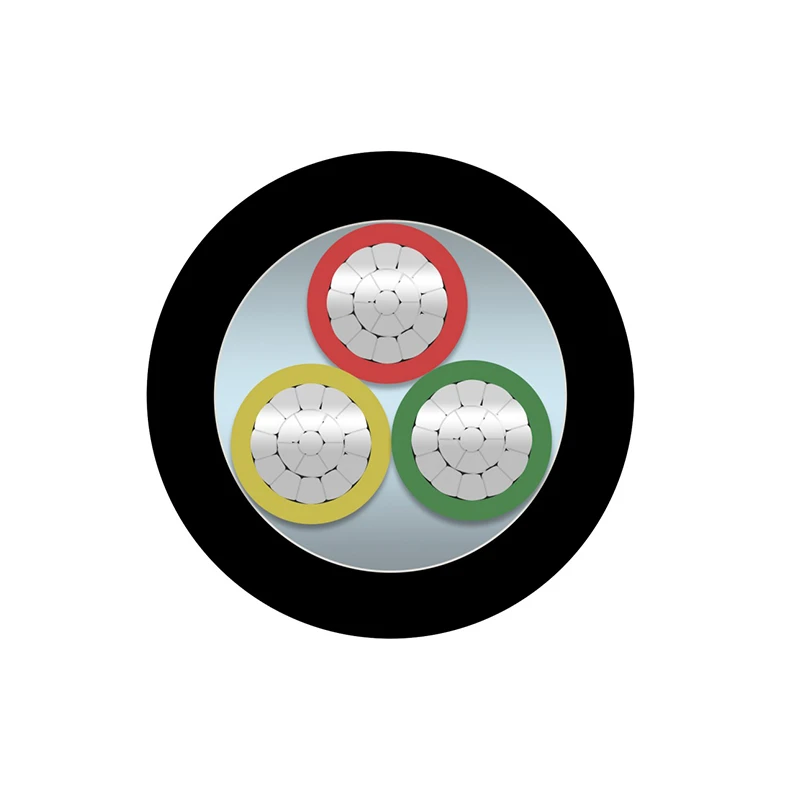

Manufactured by Zhongdong Cable, the 0.6/1 kV AL/XLPE/PVC Multicore Power Cable is designed for fixed low-voltage power distribution. It combines stranded aluminum conductors with XLPE insulation and a durable PVC outer sheath to provide dependable performance in everyday electrical installations. By integrating multiple insulated conductors into a single cable, the multicore design helps simplify cable routing, reduce installation time, and make better use of available space. Produced in accordance with IEC 60502-1, the cable is available in a range of core configurations to suit different project requirements.
|
Type |
Unarmoured Low Voltage Power Cable |
Voltage |
0.6/1 kV |
|
Cores |
2 Core to 5 Core |
Conductor |
Stranded Aluminum Conductor (IEC 60228) |
|
Insulation |
XLPE |
Sheath |
PVC ST2 |
|
Conductor Sizes |
16 mm² – 630 mm² |
Standards |
IEC 60502-1 / DIN VDE 0276-603 |
|
Cross-Ref |
YJLV / NA2XY |
|
|
Conductor: Stranded aluminum conductor complying with IEC 60228 Class 2.
Insulation:Cross-linked polyethylene (XLPE) insulation rated for 90°C continuous operation.
Core Assembly: Individually insulated cores are laid up together to form a compact multicore cable.
Outer Sheath: PVC ST2 outer sheath providing protection against abrasion, moisture, and normal environmental conditions.
AL/XLPE/PVC Multicore Power Cables are commonly selected for low-voltage circuits that require several insulated conductors within a single cable. By combining multiple cores into one assembly, they help simplify installation, improve cable organization, and reduce the amount of space needed for cable routing.
Typical installation environments include:
Building electrical distribution systems
Industrial production facilities
Commercial and public buildings
Utility and infrastructure projects
IEC: IEC 60502-1, IEC 60228
VDE / EN: DIN VDE 0276-603
BS: BS 7889
AS/NZS: AS/NZS 5000.1
ASTM (US): ASTM B230, ASTM B231
|
No. of Cores and Nominal Cross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight（Al） |
Max. D.C. Resistance of Conductor at 20℃（Al） |
|
No. × mm² |
mm |
mm |
mm |
kg/km |
Ω/km |
|
2×1.5 |
0.7 |
1.8 |
9.4 |
– |
– |
|
2×2.5 |
0.7 |
1.8 |
10.2 |
103 |
12.1 |
|
2×4 |
0.7 |
1.8 |
11.2 |
124 |
7.41 |
|
2×6 |
0.7 |
1.8 |
12.2 |
150 |
4.61 |
|
2×10 |
0.7 |
1.8 |
14.7 |
199 |
3.08 |
|
2×16 |
0.7 |
1.8 |
16.3 |
263 |
1.91 |
|
2×25 |
0.9 |
1.8 |
19.5 |
372 |
1.2 |
|
2×35 |
0.9 |
1.8 |
21.5 |
461 |
0.868 |
|
2×50 |
1 |
1.8 |
24.5 |
582 |
0.641 |
|
2×70 |
1.1 |
1.8 |
27.9 |
754 |
0.443 |
|
2×95 |
1.1 |
2 |
32.2 |
1007 |
0.32 |
|
2×120 |
1.2 |
2.1 |
35.6 |
1224 |
0.253 |
|
2×150 |
1.4 |
2.2 |
39.6 |
1508 |
0.206 |
|
2×185 |
1.6 |
2.3 |
43.8 |
1855 |
0.164 |
|
2×240 |
1.7 |
2.5 |
49.2 |
2374 |
0.125 |
|
2×300 |
1.8 |
2.7 |
54.4 |
2919 |
0.1 |
|
2×400 |
2 |
2.9 |
61.2 |
3692 |
0.0778 |
|
3×1.5 |
0.7 |
1.8 |
9.9 |
– |
– |
|
3×2.5 |
0.7 |
1.8 |
10.7 |
118 |
12.1 |
|
3×4 |
0.7 |
1.8 |
11.7 |
144 |
7.41 |
|
3×6 |
0.7 |
1.8 |
12.8 |
177 |
4.61 |
|
3×10 |
0.7 |
1.8 |
15.6 |
238 |
3.08 |
|
3×16 |
0.7 |
1.8 |
17.3 |
319 |
1.91 |
|
3×25 |
0.9 |
1.8 |
20.7 |
459 |
1.2 |
|
3×35 |
0.9 |
1.8 |
22.9 |
575 |
0.868 |
|
3×50 |
1 |
1.8 |
26.1 |
733 |
0.641 |
|
3×70 |
1.1 |
1.9 |
30.3 |
992 |
0.443 |
|
3×95 |
1.1 |
2 |
34.4 |
1297 |
0.32 |
|
3×120 |
1.2 |
2.1 |
38.1 |
1586 |
0.253 |
|
3×150 |
1.4 |
2.3 |
42.6 |
1973 |
0.206 |
|
3×185 |
1.6 |
2.4 |
47.1 |
2434 |
0.164 |
|
3×240 |
1.7 |
2.6 |
52.9 |
3123 |
0.125 |
|
3×300 |
1.8 |
2.8 |
58.5 |
3849 |
0.1 |
|
3×400 |
2 |
3.1 |
66 |
4908 |
0.0778 |
|
4×1.5 |
0.7 |
1.8 |
10.6 |
– |
– |
|
4×2.5 |
0.7 |
1.8 |
11.5 |
137 |
12.1 |
|
4×4 |
0.7 |
1.8 |
12.7 |
170 |
7.41 |
|
4×6 |
0.7 |
1.8 |
13.9 |
211 |
4.61 |
|
4×10 |
0.7 |
1.8 |
17 |
287 |
3.08 |
It simplifies cable routing, reduces installation time, and keeps wiring more organized.
The cable is rated for 90°C continuous operation and 250°C for up to 5 seconds under short-circuit conditions.
The recommended minimum bending radius is 12 × the overall cable diameter (12 × OD).
Yes. Various core configurations and conductor sizes are available to meet different project requirements.
