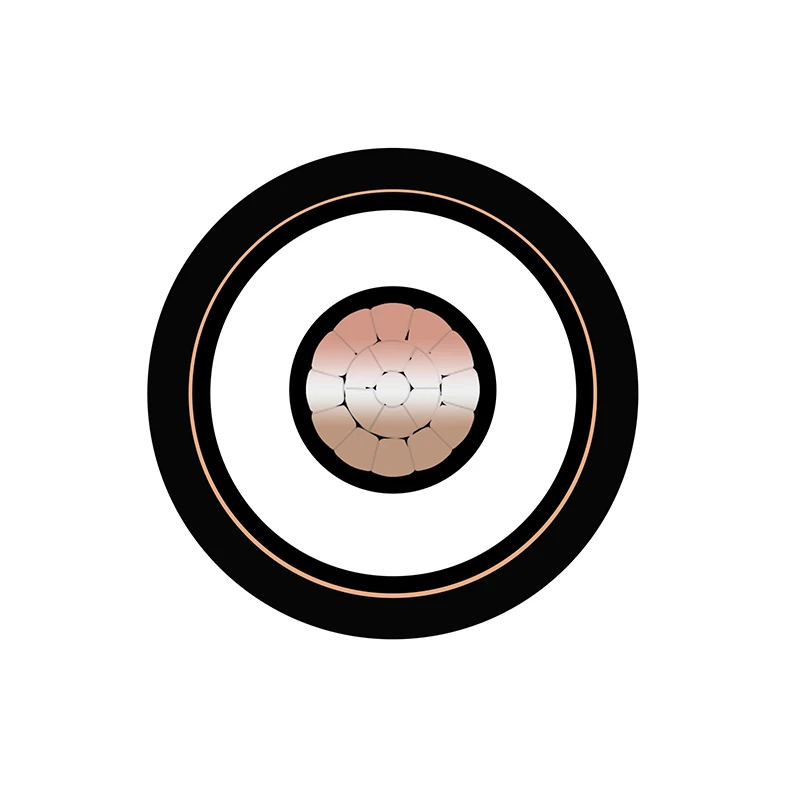

Zhongdong Cable manufactures high-quality CU/XLPE/CTS/PVC single-core power cables (6/10kV), engineered strictly in accordance with IEC 60502-2 and IEC 60228 standards. Featuring a premium plain annealed copper conductor (Class 1 or Class 2) and individual Copper Tape Screening (CTS), this medium-voltage unarmoured cable ensures excellent electrical conductivity, uniform electric field distribution, and minimal transmission loss.
Thanks to its unarmoured design, it offers exceptional flexibility, making it the preferred choice for EPC contractors and utility engineers looking to optimize installation efficiency in pre-existing conduits, cable trays, and underground trenches.
|
Type |
Unarmoured Medium Voltage Power Cable |
Voltage |
6/10 kV |
|
Cores |
1 Core |
Conductor |
Plain Copper Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Screen |
Copper Tape Screen (CTS) |
|
Sheath |
PVC ST2 |
Standards |
IEC 60502-2 / IEC 60228 |
|
Cross-Ref |
YJV / N2XSY Equivalent |
|
|

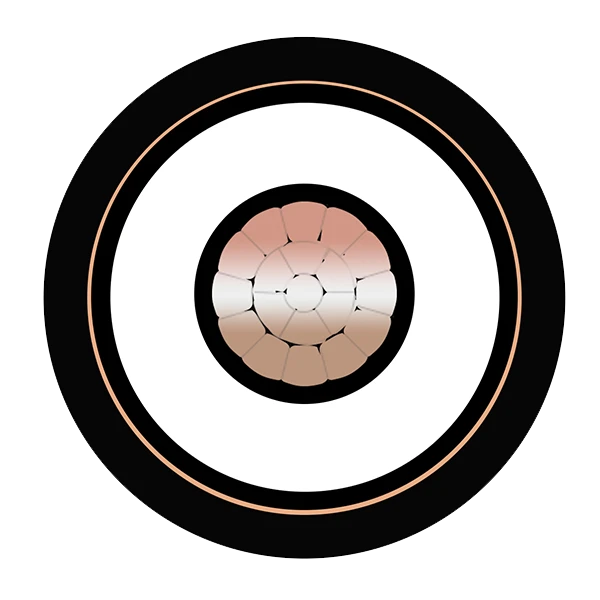

Conductor: High-purity plain annealed copper, Class 1 (solid) or Class 2 (stranded) complying with IEC 60228.
Insulation: XLPE (Cross-linked Polyethylene) with superior thermal stability, capable of continuous operation at a 90°C conductor temperature.
Metallic Screen: Helically applied Copper Tape Screen (CTS) to ground fault currents and control electrical stress.
Outer Sheath: Robust PVC ST2, providing strong resistance to moisture, abrasion, and environmental aging.
N2XSY single-core medium voltage cables are intended for fixed installation in power distribution systems where stable electrical performance, effective screening, and long service life are required. The copper tape screen provides reliable electric field control and reduces electromagnetic interference, while XLPE insulation ensures strong thermal endurance and dielectric stability. These cables are suitable for installation in cable ducts, trenches, conduits, or direct burial systems with appropriate mechanical protection.
Utility distribution networks and grid reinforcement projects
Railway and metro traction power supply substations
Airport and seaport electrical infrastructure systems
Oil & gas facilities and petrochemical plant distribution networks
Mining and heavy-duty industrial power supply systems
Large-scale infrastructure projects (tunnels, bridges, and smart city systems)
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
|
No.of Cores |
Nominal |
Nominal |
Approx. |
Approx.Weight |
Max.DC Resistance |
|
1×25 |
3.4 |
1.6 |
19.3 |
569 |
0.727 |
|
1×35 |
3.4 |
1.6 |
20.3 |
680 |
0.524 |
|
1×50 |
3.4 |
1.6 |
21.4 |
816 |
0.387 |
|
1×70 |
3.4 |
1.7 |
23.3 |
1054 |
0.268 |
|
1×95 |
3.4 |
1.7 |
25.1 |
1332 |
0.193 |
|
1×120 |
3.4 |
1.8 |
26.5 |
1592 |
0.153 |
|
1×150 |
3.4 |
1.8 |
28.0 |
1875 |
0.124 |
|
1×185 |
3.4 |
1.9 |
29.9 |
2265 |
0.0991 |
|
1×240 |
3.4 |
2.0 |
32.4 |
2834 |
0.0754 |
|
1×300 |
3.4 |
2.0 |
34.6 |
3432 |
0.0601 |
|
1×400 |
3.4 |
2.2 |
37.7 |
4302 |
0.0470 |
|
1×500 |
3.4 |
2.2 |
41.1 |
5332 |
0.0366 |
|
1×630 |
3.4 |
2.4 |
45.2 |
6760 |
0.0283 |
Yes. This cable is designed as a technical equivalent to N2XSY and complies with IEC 60502-2, making it suitable for most EU MV distribution systems.
CTS controls electrical stress around the conductor, reduces partial discharge, and improves operational stability in medium voltage networks.
CTS uses copper tape and is suitable for standard fault levels, while CWS (copper wire screen) is used in higher short-circuit current environments.
Only with proper sand bedding or protective ducts. As it is unarmoured, it must not be installed in rocky or mechanically harsh soil conditions.
90°C continuous operating temperature and up to 250°C under short-circuit conditions (max. 5 seconds).
