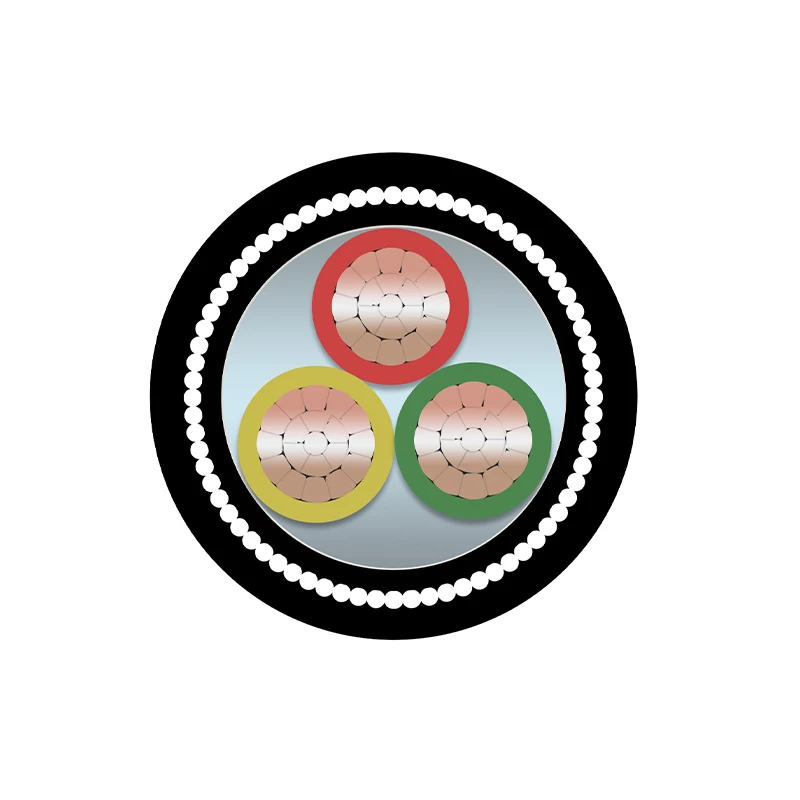

The 0.6/1 kV CU/XLPE/SWA/PVC Multicore Power Cable, manufactured by Zhongdong Cable, combines stranded copper conductors, XLPE insulation, steel wire armour (SWA), and a PVC outer sheath in a durable cable construction. Designed for fixed low-voltage power systems, it offers increased resistance to mechanical stress while maintaining dependable electrical performance. The cable is manufactured in accordance with IEC 60502-1.
|
Type |
Armoured Low Voltage Power Cable |
Voltage |
0.6/1 kV |
|
Cores |
2 Core to 5 Core |
Conductor |
Stranded Copper Conductor(IEC 60228) |
|
Insulation |
XLPE |
Sheath |
PVC ST2 |
|
Armour |
Steel Wire Armour (SWA) |
Conductor Sizes |
16 mm²- 630 mm² |
|
Standards |
IEC 60502-1 / DIN VDE 0276-603 |
Cross-Ref |
YJV32 / N2XRY |

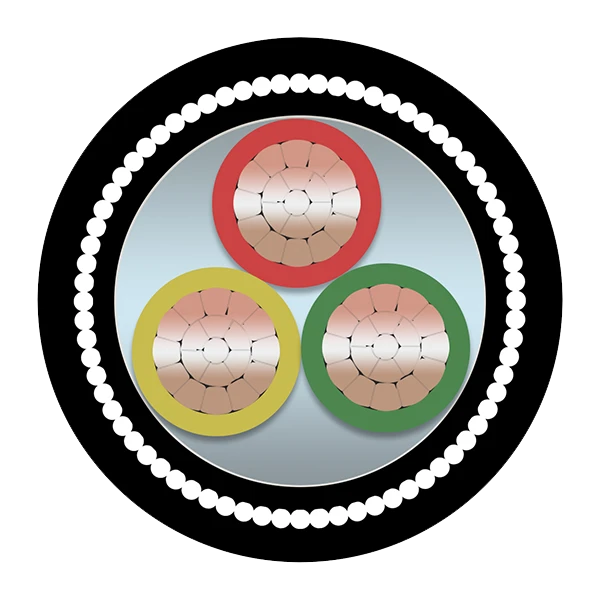

Conductor: Stranded copper conductor complying with IEC 60228 Class 2.
Insulation: Cross-linked polyethylene (XLPE) insulation rated for 90°C continuous operation.
Core Assembly: Insulated cores laid up with fillers where required.
Armour: Steel wire armour (SWA).
Outer Sheath: PVC ST2 outer sheath.
This cable is a common choice for power distribution circuits that require a durable cable construction. It is frequently installed in industrial plants, commercial buildings, utility facilities, and other fixed electrical systems where cables are expected to withstand everyday mechanical loads.
Typical applications include:
Electrical distribution rooms
Industrial production lines
Commercial developments
Infrastructure and utility projects
IEC: IEC 60502-1, IEC 60228
VDE / EN: DIN VDE 0276-603
BS: BS 7889
AS/NZS: AS/NZS 5000.1
ASTM (US): ASTM B3, ASTM B8
|
No. of Cores and |
Nominal |
Nominal Steel |
Nominal |
Approx. |
Approx. Weight |
Max. D.C. Resistance |
||
|
Nominal Cross Section |
Insulation Thickness |
Wire Diameter |
Sheath Thickness |
Overall Diameter |
of Conductor at 20℃ |
|||
|
|
|
|
|
|
Cu |
Al |
Cu |
Al |
|
No. × mm² |
mm |
mm |
mm |
mm |
kg/km |
kg/km |
Ω/km |
Ω/km |
|
2×1.5 |
0.7 |
0.8 |
1.8 |
13.3 |
300 |
– |
12.1 |
– |
|
2×2.5 |
0.7 |
0.8 |
1.8 |
14.1 |
343 |
314 |
7.41 |
12.1 |
|
2×4 |
0.7 |
0.8 |
1.8 |
15.1 |
404 |
357 |
4.61 |
7.41 |
|
2×6 |
0.7 |
0.8 |
1.8 |
16.1 |
476 |
406 |
3.08 |
4.61 |
|
2×10 |
0.7 |
1.25 |
1.8 |
19.5 |
763 |
619 |
1.83 |
3.08 |
|
2×16 |
0.7 |
1.25 |
1.8 |
21.1 |
942 |
743 |
1.15 |
1.91 |
|
2×25 |
0.9 |
1.6 |
1.8 |
25 |
1384 |
1078 |
0.727 |
1.2 |
|
2×35 |
0.9 |
1.6 |
1.8 |
27 |
1668 |
1243 |
0.524 |
0.868 |
|
2×50 |
1 |
1.6 |
1.8 |
30 |
2061 |
1459 |
0.387 |
0.641 |
|
2×70 |
1.1 |
1.6 |
2 |
33.8 |
2628 |
1796 |
0.268 |
0.443 |
|
2×95 |
1.1 |
2 |
2.1 |
39.1 |
3649 |
2495 |
0.193 |
0.32 |
|
2×120 |
1.2 |
2 |
2.2 |
42.5 |
4334 |
2836 |
0.153 |
0.253 |
|
2×150 |
1.4 |
2 |
2.3 |
46.5 |
5134 |
3330 |
0.124 |
0.206 |
|
2×185 |
1.6 |
2.5 |
2.5 |
52.3 |
6658 |
4386 |
0.0991 |
0.164 |
|
2×240 |
1.7 |
2.5 |
2.7 |
57.7 |
8140 |
5192 |
0.0754 |
0.125 |
|
2×300 |
1.8 |
2.5 |
2.8 |
63.1 |
9754 |
6049 |
0.0601 |
0.1 |
|
2×400 |
2 |
2.5 |
3.1 |
70.1 |
12015 |
7194 |
0.047 |
0.0778 |
|
3×1.5 |
0.7 |
0.8 |
1.8 |
13.8 |
331 |
– |
12.1 |
– |
|
3×2.5 |
0.7 |
0.8 |
1.8 |
14.6 |
384 |
340 |
7.41 |
12.1 |
|
3×4 |
0.7 |
0.8 |
1.8 |
15.6 |
460 |
388 |
4.61 |
7.41 |
|
3×6 |
0.7 |
0.8 |
1.8 |
16.7 |
552 |
448 |
3.08 |
4.61 |
|
3×10 |
0.7 |
1.25 |
1.8 |
20.4 |
889 |
682 |
1.83 |
3.08 |
|
3×16 |
0.7 |
1.25 |
1.8 |
22.1 |
1133 |
835 |
1.15 |
1.91 |
|
3×25 |
0.9 |
1.6 |
1.8 |
26.2 |
1680 |
1221 |
0.727 |
1.2 |
|
3×35 |
0.9 |
1.6 |
1.8 |
28.4 |
2051 |
1414 |
0.524 |
0.868 |
|
3×50 |
1 |
1.6 |
1.9 |
31.8 |
2572 |
1681 |
0.387 |
0.641 |
|
3×70 |
1.1 |
2 |
2 |
37.2 |
3637 |
2389 |
0.268 |
0.443 |
|
3×95 |
1.1 |
2 |
2.2 |
41.5 |
4626 |
2895 |
0.193 |
0.32 |
|
3×120 |
1.2 |
2 |
2.3 |
45.2 |
5565 |
3336 |
0.153 |
0.253 |
|
3×150 |
1.4 |
2.5 |
2.5 |
51.1 |
7121 |
4415 |
0.124 |
0.206 |
|
3×185 |
1.6 |
2.5 |
2.6 |
55.6 |
8522 |
5113 |
0.0991 |
0.164 |
|
3×240 |
1.7 |
2.5 |
2.8 |
61.8 |
10612 |
6188 |
0.0754 |
0.125 |
|
3×300 |
1.8 |
2.5 |
3 |
67.4 |
12798 |
7206 |
0.0601 |
0.1 |
|
3×400 |
2 |
2.5 |
3.2 |
74.7 |
15826 |
8623 |
0.047 |
0.0778 |
|
4×1.5 |
0.7 |
0.8 |
1.8 |
14.5 |
372 |
– |
12.1 |
– |
|
4×2.5 |
0.7 |
0.8 |
1.8 |
15.4 |
435 |
377 |
7.41 |
12.1 |
|
4×4 |
0.7 |
0.8 |
1.8 |
16.6 |
531 |
436 |
4.61 |
7.41 |
|
4×6 |
0.7 |
1.25 |
1.8 |
18.7 |
765 |
631 |
3.08 |
4.61 |
|
4×10 |
0.7 |
1.25 |
1.8 |
21.8 |
1049 |
779 |
1.83 |
3.08 |
|
4×16 |
0.7 |
1.6 |
1.8 |
24.4 |
1473 |
1076 |
1.15 |
1.91 |
|
4×25 |
0.9 |
1.6 |
1.8 |
28.3 |
2017 |
1404 |
0.727 |
1.2 |
|
4×35 |
0.9 |
1.6 |
1.9 |
30.9 |
2495 |
1645 |
0.524 |
0.868 |
|
4×50 |
1 |
2 |
2 |
34.7 |
3157 |
1977 |
0.387 |
0.641 |
|
4×70 |
1.1 |
2 |
2.2 |
40.7 |
4493 |
2829 |
0.268 |
0.443 |
|
4×95 |
1.1 |
2 |
2.3 |
45.3 |
5742 |
3434 |
0.193 |
0.32 |
|
4×120 |
1.2 |
2.5 |
2.5 |
51 |
7417 |
4442 |
0.153 |
0.253 |
|
4×150 |
1.4 |
2.5 |
2.6 |
55.8 |
8806 |
5198 |
0.124 |
0.206 |
|
4×185 |
1.6 |
2.5 |
2.8 |
61.4 |
10739 |
6194 |
0.0991 |
0.164 |
|
4×240 |
1.7 |
2.5 |
3 |
67.9 |
13321 |
7424 |
0.0754 |
0.125 |
|
4×300 |
1.8 |
2.5 |
3.2 |
74.1 |
16097 |
8695 |
0.0601 |
0.1 |
|
4×400 |
2 |
3.15 |
3.5 |
84.1 |
21074 |
11526 |
0.047 |
0.0778 |
|
5×1.5 |
0.7 |
0.8 |
1.8 |
15.3 |
414 |
– |
12.1 |
– |
|
5×2.5 |
0.7 |
0.8 |
1.8 |
16.3 |
492 |
419 |
7.41 |
12.1 |
|
5×4 |
0.7 |
1.25 |
1.8 |
18.5 |
726 |
606 |
4.61 |
7.41 |
|
5×6 |
0.7 |
1.25 |
1.8 |
19.9 |
874 |
704 |
3.08 |
4.61 |
|
5×10 |
0.7 |
1.25 |
1.8 |
23.3 |
1214 |
870 |
1.83 |
3.08 |
|
5×16 |
0.7 |
1.6 |
1.8 |
26.1 |
1723 |
1227 |
1.15 |
1.91 |
|
5×25 |
0.9 |
1.6 |
1.8 |
30.5 |
2362 |
1597 |
0.727 |
1.2 |
|
5×35 |
0.9 |
1.6 |
1.9 |
33.4 |
2953 |
1890 |
0.524 |
0.868 |
|
5×50 |
1 |
2 |
2.1 |
39.3 |
4090 |
2609 |
0.387 |
0.641 |
|
5×70 |
1.1 |
2 |
2.3 |
44.3 |
5352 |
3271 |
0.268 |
0.443 |
|
5×95 |
1.1 |
2.5 |
2.5 |
51 |
7379 |
4494 |
0.193 |
0.32 |
|
5×120 |
1.2 |
2.5 |
2.6 |
55.5 |
8856 |
5148 |
0.153 |
0.253 |
|
5×150 |
1.4 |
2.5 |
2.8 |
61.4 |
10690 |
6181 |
0.124 |
0.206 |
|
5×185 |
1.6 |
2.5 |
3 |
67.2 |
12917 |
7236 |
0.0991 |
0.164 |
|
5×240 |
1.7 |
2.5 |
3.2 |
74.4 |
16133 |
8761 |
0.0754 |
0.125 |
|
5×300 |
1.8 |
3.15 |
3.4 |
82.9 |
20582 |
11266 |
0.0601 |
0.1 |
|
5×400 |
2 |
3.15 |
3.8 |
92.4 |
25587 |
13590 |
0.047 |
0.0778 |
The recommended minimum bending radius is 12 × the overall cable diameter (12 × OD).
SWA provides additional mechanical strength and helps protect the cable from external damage.
Yes. It can be installed by direct burial where local installation standards and site conditions permit.
