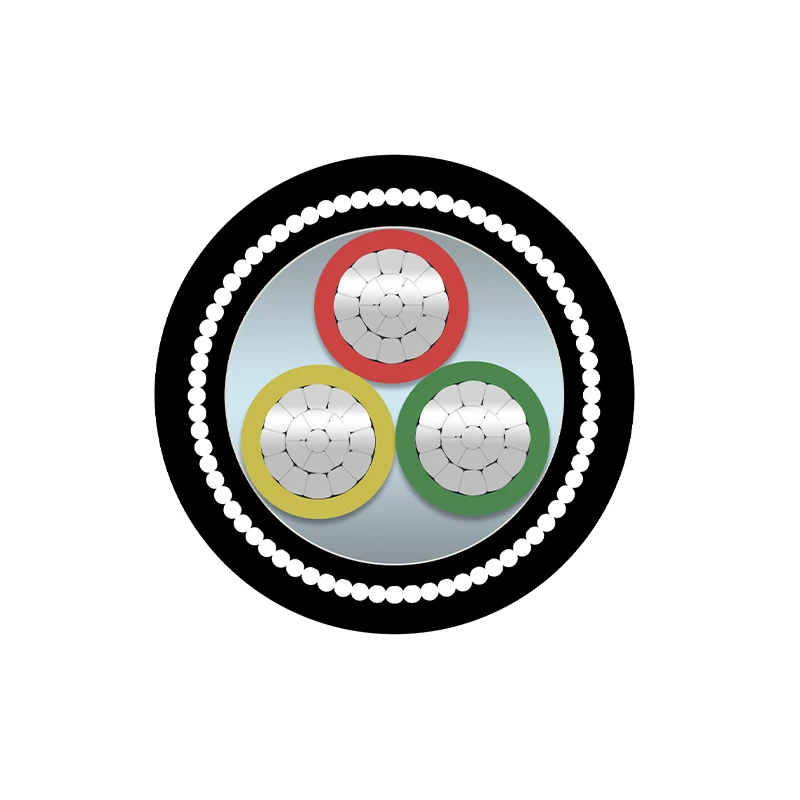

The 0.6/1 kV AL/XLPE/SWA/PVC Multicore Power Cable, manufactured by Zhongdong Cable, is developed for fixed power installations where cable durability and project economy are equally important. By combining aluminum conductors with steel wire armour (SWA), the cable reduces installation weight while providing reliable mechanical protection throughout its service life. Manufactured to IEC 60502-1, it is suitable for a wide range of low-voltage distribution applications.
|
Type |
Armoured Low Voltage Power Cable |
Voltage |
0.6/1 kV |
|
Cores |
2 Core to 5 Core |
Conductor |
Stranded Aluminum Conductor(IEC 60228) |
|
Insulation |
XLPE |
Sheath |
PVC ST2 |
|
Armour |
Steel Wire Armour (SWA) |
Conductor Sizes |
16 mm²- 630 mm² |
|
Standards |
IEC 60502-1 / DIN VDE 0276-603 |
Cross-Ref |
YJLV32 / NA2XRY |

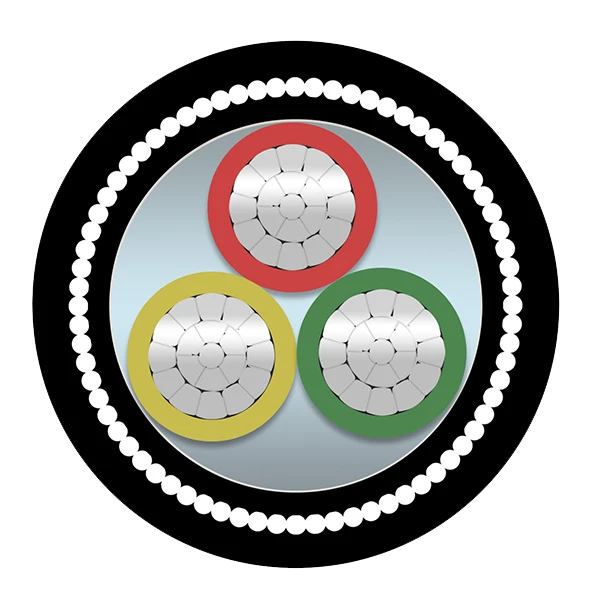

Conductor: Stranded aluminum conductor complying with IEC 60228 Class 2.
Insulation: Cross-linked polyethylene (XLPE) insulation designed for continuous operation at 90°C.
Core Assembly: Individually insulated cores twisted together with non-hygroscopic fillers where required to maintain a stable cable structure.
Armour: Steel wire armour (SWA) providing increased mechanical strength for fixed installations.
Outer Sheath: PVC ST2 outer sheath offering protection against abrasion, moisture, and normal environmental exposure.
This cable is frequently specified for projects where reducing installation weight is an important consideration without sacrificing mechanical protection. It performs well in fixed low-voltage distribution systems and is suitable for locations where cables are expected to remain in service for many years with minimal maintenance.
Typical applications include:
Main distribution feeders
Manufacturing and logistics facilities
Public infrastructure projects
IEC: IEC 60502-1, IEC 60228
VDE / EN: DIN VDE 0276-603
BS: BS 7889
AS/NZS: AS/NZS 5000.1
ASTM (US): ASTM B230, ASTM B231
|
No. of Cores and |
Nominal |
Nominal Steel |
Nominal |
Approx. |
Approx. Weight |
Max. D.C. Resistance |
||
|
Nominal Cross Section |
Insulation Thickness |
Wire Diameter |
Sheath Thickness |
Overall Diameter |
of Conductor at 20℃ |
|||
|
|
|
|
|
|
Cu |
Al |
Cu |
Al |
|
No. × mm² |
mm |
mm |
mm |
mm |
kg/km |
kg/km |
Ω/km |
Ω/km |
|
2×1.5 |
0.7 |
0.8 |
1.8 |
13.3 |
300 |
– |
12.1 |
– |
|
2×2.5 |
0.7 |
0.8 |
1.8 |
14.1 |
343 |
314 |
7.41 |
12.1 |
|
2×4 |
0.7 |
0.8 |
1.8 |
15.1 |
404 |
357 |
4.61 |
7.41 |
|
2×6 |
0.7 |
0.8 |
1.8 |
16.1 |
476 |
406 |
3.08 |
4.61 |
|
2×10 |
0.7 |
1.25 |
1.8 |
19.5 |
763 |
619 |
1.83 |
3.08 |
|
2×16 |
0.7 |
1.25 |
1.8 |
21.1 |
942 |
743 |
1.15 |
1.91 |
|
2×25 |
0.9 |
1.6 |
1.8 |
25 |
1384 |
1078 |
0.727 |
1.2 |
|
2×35 |
0.9 |
1.6 |
1.8 |
27 |
1668 |
1243 |
0.524 |
0.868 |
|
2×50 |
1 |
1.6 |
1.8 |
30 |
2061 |
1459 |
0.387 |
0.641 |
|
2×70 |
1.1 |
1.6 |
2 |
33.8 |
2628 |
1796 |
0.268 |
0.443 |
|
2×95 |
1.1 |
2 |
2.1 |
39.1 |
3649 |
2495 |
0.193 |
0.32 |
|
2×120 |
1.2 |
2 |
2.2 |
42.5 |
4334 |
2836 |
0.153 |
0.253 |
|
2×150 |
1.4 |
2 |
2.3 |
46.5 |
5134 |
3330 |
0.124 |
0.206 |
|
2×185 |
1.6 |
2.5 |
2.5 |
52.3 |
6658 |
4386 |
0.0991 |
0.164 |
|
2×240 |
1.7 |
2.5 |
2.7 |
57.7 |
8140 |
5192 |
0.0754 |
0.125 |
|
2×300 |
1.8 |
2.5 |
2.8 |
63.1 |
9754 |
6049 |
0.0601 |
0.1 |
|
2×400 |
2 |
2.5 |
3.1 |
70.1 |
12015 |
7194 |
0.047 |
0.0778 |
|
3×1.5 |
0.7 |
0.8 |
1.8 |
13.8 |
331 |
– |
12.1 |
– |
|
3×2.5 |
0.7 |
0.8 |
1.8 |
14.6 |
384 |
340 |
7.41 |
12.1 |
|
3×4 |
0.7 |
0.8 |
1.8 |
15.6 |
460 |
388 |
4.61 |
7.41 |
|
3×6 |
0.7 |
0.8 |
1.8 |
16.7 |
552 |
448 |
3.08 |
4.61 |
|
3×10 |
0.7 |
1.25 |
1.8 |
20.4 |
889 |
682 |
1.83 |
3.08 |
|
3×16 |
0.7 |
1.25 |
1.8 |
22.1 |
1133 |
835 |
1.15 |
1.91 |
|
3×25 |
0.9 |
1.6 |
1.8 |
26.2 |
1680 |
1221 |
0.727 |
1.2 |
|
3×35 |
0.9 |
1.6 |
1.8 |
28.4 |
2051 |
1414 |
0.524 |
0.868 |
|
3×50 |
1 |
1.6 |
1.9 |
31.8 |
2572 |
1681 |
0.387 |
0.641 |
|
3×70 |
1.1 |
2 |
2 |
37.2 |
3637 |
2389 |
0.268 |
0.443 |
|
3×95 |
1.1 |
2 |
2.2 |
41.5 |
4626 |
2895 |
0.193 |
0.32 |
|
3×120 |
1.2 |
2 |
2.3 |
45.2 |
5565 |
3336 |
0.153 |
0.253 |
|
3×150 |
1.4 |
2.5 |
2.5 |
51.1 |
7121 |
4415 |
0.124 |
0.206 |
|
3×185 |
1.6 |
2.5 |
2.6 |
55.6 |
8522 |
5113 |
0.0991 |
0.164 |
|
3×240 |
1.7 |
2.5 |
2.8 |
61.8 |
10612 |
6188 |
0.0754 |
0.125 |
|
3×300 |
1.8 |
2.5 |
3 |
67.4 |
12798 |
7206 |
0.0601 |
0.1 |
|
3×400 |
2 |
2.5 |
3.2 |
74.7 |
15826 |
8623 |
0.047 |
0.0778 |
|
4×1.5 |
0.7 |
0.8 |
1.8 |
14.5 |
372 |
– |
12.1 |
– |
|
4×2.5 |
0.7 |
0.8 |
1.8 |
15.4 |
435 |
377 |
7.41 |
12.1 |
|
4×4 |
0.7 |
0.8 |
1.8 |
16.6 |
531 |
436 |
4.61 |
7.41 |
|
4×6 |
0.7 |
1.25 |
1.8 |
18.7 |
765 |
631 |
3.08 |
4.61 |
|
4×10 |
0.7 |
1.25 |
1.8 |
21.8 |
1049 |
779 |
1.83 |
3.08 |
|
4×16 |
0.7 |
1.6 |
1.8 |
24.4 |
1473 |
1076 |
1.15 |
1.91 |
|
4×25 |
0.9 |
1.6 |
1.8 |
28.3 |
2017 |
1404 |
0.727 |
1.2 |
|
4×35 |
0.9 |
1.6 |
1.9 |
30.9 |
2495 |
1645 |
0.524 |
0.868 |
|
4×50 |
1 |
2 |
2 |
34.7 |
3157 |
1977 |
0.387 |
0.641 |
|
4×70 |
1.1 |
2 |
2.2 |
40.7 |
4493 |
2829 |
0.268 |
0.443 |
|
4×95 |
1.1 |
2 |
2.3 |
45.3 |
5742 |
3434 |
0.193 |
0.32 |
|
4×120 |
1.2 |
2.5 |
2.5 |
51 |
7417 |
4442 |
0.153 |
0.253 |
|
4×150 |
1.4 |
2.5 |
2.6 |
55.8 |
8806 |
5198 |
0.124 |
0.206 |
|
4×185 |
1.6 |
2.5 |
2.8 |
61.4 |
10739 |
6194 |
0.0991 |
0.164 |
|
4×240 |
1.7 |
2.5 |
3 |
67.9 |
13321 |
7424 |
0.0754 |
0.125 |
|
4×300 |
1.8 |
2.5 |
3.2 |
74.1 |
16097 |
8695 |
0.0601 |
0.1 |
|
4×400 |
2 |
3.15 |
3.5 |
84.1 |
21074 |
11526 |
0.047 |
0.0778 |
|
5×1.5 |
0.7 |
0.8 |
1.8 |
15.3 |
414 |
– |
12.1 |
– |
|
5×2.5 |
0.7 |
0.8 |
1.8 |
16.3 |
492 |
419 |
7.41 |
12.1 |
|
5×4 |
0.7 |
1.25 |
1.8 |
18.5 |
726 |
606 |
4.61 |
7.41 |
|
5×6 |
0.7 |
1.25 |
1.8 |
19.9 |
874 |
704 |
3.08 |
4.61 |
|
5×10 |
0.7 |
1.25 |
1.8 |
23.3 |
1214 |
870 |
1.83 |
3.08 |
|
5×16 |
0.7 |
1.6 |
1.8 |
26.1 |
1723 |
1227 |
1.15 |
1.91 |
|
5×25 |
0.9 |
1.6 |
1.8 |
30.5 |
2362 |
1597 |
0.727 |
1.2 |
|
5×35 |
0.9 |
1.6 |
1.9 |
33.4 |
2953 |
1890 |
0.524 |
0.868 |
|
5×50 |
1 |
2 |
2.1 |
39.3 |
4090 |
2609 |
0.387 |
0.641 |
|
5×70 |
1.1 |
2 |
2.3 |
44.3 |
5352 |
3271 |
0.268 |
0.443 |
|
5×95 |
1.1 |
2.5 |
2.5 |
51 |
7379 |
4494 |
0.193 |
0.32 |
|
5×120 |
1.2 |
2.5 |
2.6 |
55.5 |
8856 |
5148 |
0.153 |
0.253 |
|
5×150 |
1.4 |
2.5 |
2.8 |
61.4 |
10690 |
6181 |
0.124 |
0.206 |
|
5×185 |
1.6 |
2.5 |
3 |
67.2 |
12917 |
7236 |
0.0991 |
0.164 |
|
5×240 |
1.7 |
2.5 |
3.2 |
74.4 |
16133 |
8761 |
0.0754 |
0.125 |
|
5×300 |
1.8 |
3.15 |
3.4 |
82.9 |
20582 |
11266 |
0.0601 |
0.1 |
|
5×400 |
2 |
3.15 |
3.8 |
92.4 |
25587 |
13590 |
0.047 |
0.0778 |
