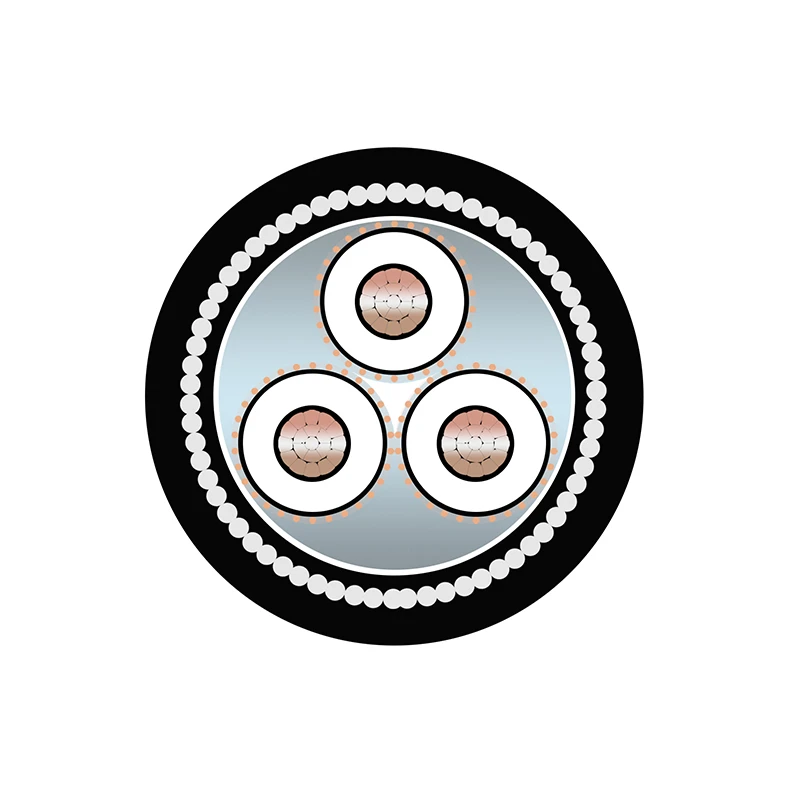

The CU/XLPE/CWS/SWA/PVC three-core power cable 26/35kV manufactured by Zhongdong Cable is designed in accordance with IEC 60502-2 and IEC 60228 (Class 1 or Class 2 copper conductor). It adopts copper conductors, XLPE insulation, copper wire screen (CWS), steel wire armour (SWA), and PVC outer sheath, providing a reliable solution for high medium-voltage underground distribution systems.
At 26/35kV level, the cable is mainly used in primary distribution networks where higher insulation performance and stronger mechanical protection are required.
|
Type |
Steel Wire Armoured MV Power Cable |
Voltage Rating |
26/35 kV |
|
Cores |
3 Core |
Conductor |
Copper, Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE |
Screen |
Copper Wire Screen (CWS) |
|
Armour |
Galvanized Steel Wire Armour (SWA) |
Sheath |
PVC ST2 |
|
Standards |
IEC 60502-2 / IEC 60228 |
Cross Reference |
YJSV32 / N2XSERY-Armoured Equivalent |

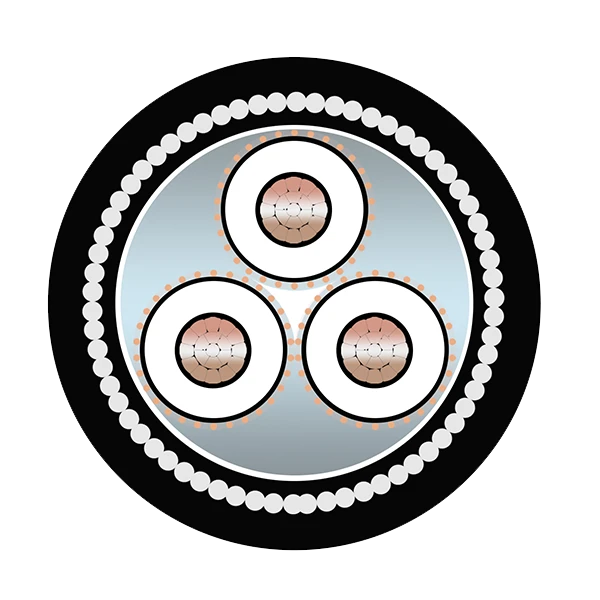

Conductor: Stranded copper conductor
Conductor Screen: Semi-conductive layer for electric field control
Insulation: XLPE with stable thermal and dielectric performance
Insulation Screen: Semi-conductive layer for uniform field distribution
Metallic Screen: Copper wire screen for grounding and fault current path
Armour: Galvanized steel wire armour (SWA) for high tensile strength and mechanical protection
Fillers: To maintain circular cable shape and stability
Outer Sheath: PVC (ST2), resistant to moisture and abrasion
Design: Three-core SWA armoured MV cable (26/35 kV)
This 26/35kV 3-core copper SWA cable is used in medium-voltage networks where higher system voltage and strong mechanical protection are required.
Typical applications:
Primary power distribution networks
Large industrial power systems
Substation incoming and outgoing feeders
Urban grid reinforcement projects
Underground transmission corridors
Infrastructure and utility backbone systems
Renewable energy evacuation networks (large-scale plants)
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
|
No. of Cores |
Nominal |
Nominal |
Nominal |
Approx. |
Approx. Weight (kg/km) |
Max. DC Resistance of Conductor at 20℃ (Ω/km) |
|
and Nominal |
Insulation |
Steel Wire |
Sheath |
Overall |
||
|
Cross Section |
Thickness |
Diameter |
Thickness |
Diameter |
||
|
(mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
||
|
3*25 |
4.5 |
2.5 |
2.6 |
53 |
4695 |
0.727 |
|
3*35 |
4.5 |
2.5 |
2.7 |
55.4 |
5217 |
0.524 |
|
3*50 |
4.5 |
2.5 |
2.8 |
58.1 |
5853 |
0.387 |
|
3*70 |
4.5 |
2.5 |
3 |
62.4 |
6906 |
0.268 |
|
3×95 |
4.5 |
2.5 |
3.1 |
66.5 |
8030 |
0.193 |
|
3×120 |
4.5 |
2.5 |
3.2 |
69.5 |
9102 |
0.153 |
|
3×150 |
4.5 |
3.15 |
3.3 |
74.2 |
11048 |
0.124 |
|
3×185 |
4.5 |
3.15 |
3.5 |
78.5 |
12639 |
0.0991 |
|
3×240 |
4.5 |
3.15 |
3.6 |
83.9 |
14820 |
0.0754 |
|
3×300 |
4.5 |
3.15 |
3.8 |
89.2 |
17314 |
0.0601 |
|
3×400 |
4.5 |
3.15 |
4 |
95.6 |
20532 |
0.047 |
|
3×500 |
4.5 |
3.15 |
4.2 |
103.7 |
24575 |
0.0366 |
|
3×630 |
4.5 |
3.15 |
4.5 |
112.7 |
29682 |
0.0283 |
It is mainly used in primary MV distribution systems and large industrial power networks where higher voltage levels are required.
SWA provides strong mechanical protection for underground installation, especially in areas with soil pressure or risk of external damage.
Yes, it is commonly used in compact urban grids where space saving and simplified installation are important.
Due to higher voltage and larger size, proper cable handling and controlled pulling force are critical during laying.
Yes, but route design should minimize sharp bends and reduce installation stress to maintain insulation integrity.
