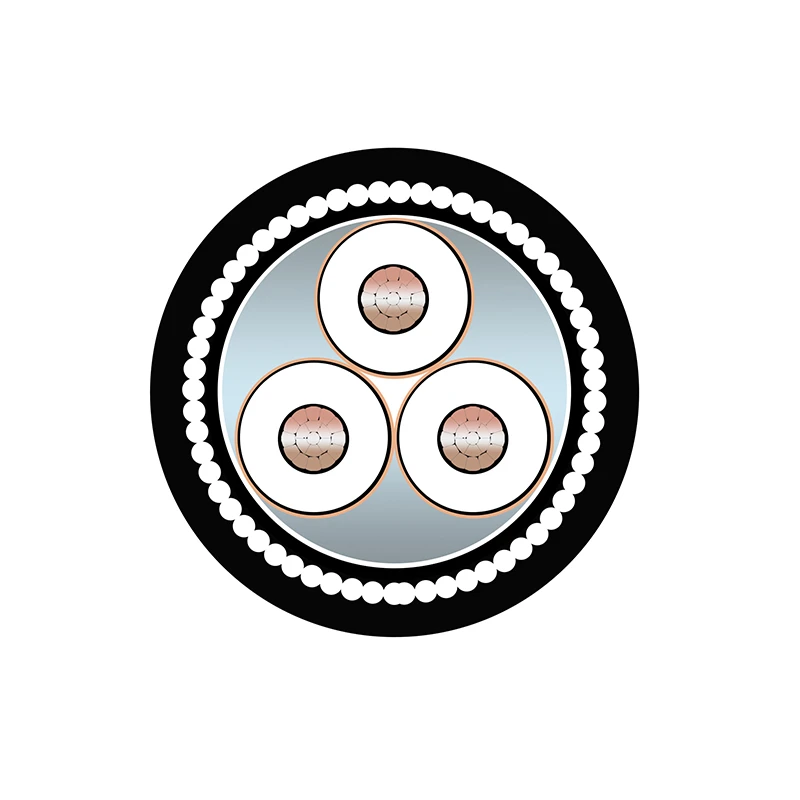

The CU/XLPE/CWS/SWA/PVC three-core power cable 8.7/15kV manufactured by Zhongdong Cable is designed in accordance with IEC 60502-2 and IEC 60228 (Class 1 or Class 2 copper conductor). It uses copper conductors, XLPE insulation, copper wire screen (CWS), steel wire armour (SWA), and PVC outer sheath, providing strong mechanical protection for medium-voltage underground distribution systems.
Compared with tape armoured structures, SWA offers higher tensile strength, making it more suitable for long pulling distances and installations with higher mechanical stress.
|
Type |
Steel Tape Armoured Medium Voltage Power Cable |
Voltage Rating |
8.7/15 kV |
|
Cores |
3 Core |
Conductor |
Copper, Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE |
Screen |
Copper Tape Screen (CTS) |
|
Armour |
Galvanized Steel Wire Armour (SWA) |
Sheath |
PVC ST2 |
|
Standards |
IEC 60502-2 / IEC 60228 |
Cross Reference |
YJV32 / N2XSERY-Armoured Equivalent |

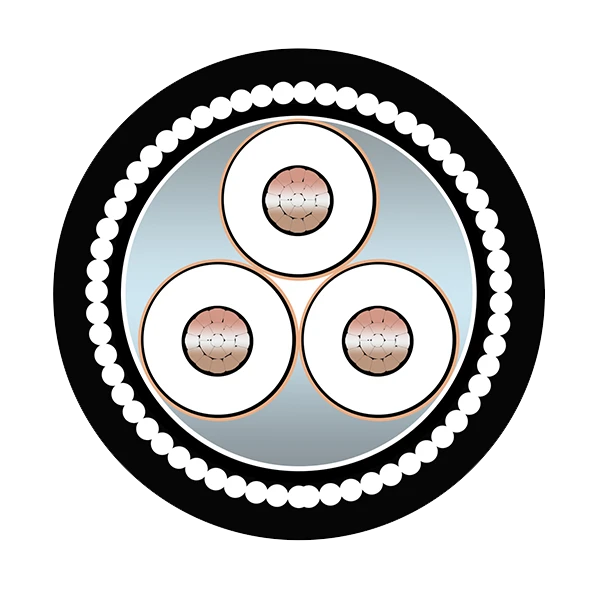

Conductor: Stranded copper conductor
Conductor Screen: Semi-conductive layer for electric field control
Insulation: XLPE with stable thermal and dielectric performance
Insulation Screen: Semi-conductive layer for uniform field distribution
Metallic Screen: Copper Tape screen for grounding and fault current path
Armour: Galvanized steel wire armour (SWA) for high tensile strength and mechanical protection
Fillers: To maintain circular cable shape and stability
Outer Sheath: PVC (ST2), resistant to moisture and abrasion
Design: Three-core SWA armoured MV cable (8.7/15 kV)
This cable is used where mechanical pulling stress and underground protection are both required.
Typical applications:
Long-distance underground cable routes
Industrial power distribution systems
Substation feeder circuits
Mining and heavy-load environments
Tunnel and utility corridor installations
Infrastructure projects with complex routing
Direct buried trench systems
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
|
No. of Cores |
Nominal |
Nominal |
Nominal |
Approx. |
Approx. Weight (kg/km) |
Max. DC Resistance of Conductor at 20℃ (Ω/km) |
|
and Nominal |
Insulation |
Steel Wire |
Sheath |
Overall |
||
|
Cross Section |
Thickness |
Diameter |
Thickness |
Diameter |
||
|
(mm²) |
(mm) |
(mm) |
(mm) |
(mm) |
||
|
3*25 |
4.5 |
2.5 |
2.6 |
53 |
4695 |
0.727 |
|
3*35 |
4.5 |
2.5 |
2.7 |
55.4 |
5217 |
0.524 |
|
3*50 |
4.5 |
2.5 |
2.8 |
58.1 |
5853 |
0.387 |
|
3*70 |
4.5 |
2.5 |
3 |
62.4 |
6906 |
0.268 |
|
3×95 |
4.5 |
2.5 |
3.1 |
66.5 |
8030 |
0.193 |
|
3×120 |
4.5 |
2.5 |
3.2 |
69.5 |
9102 |
0.153 |
|
3×150 |
4.5 |
3.15 |
3.3 |
74.2 |
11048 |
0.124 |
|
3×185 |
4.5 |
3.15 |
3.5 |
78.5 |
12639 |
0.0991 |
|
3×240 |
4.5 |
3.15 |
3.6 |
83.9 |
14820 |
0.0754 |
|
3×300 |
4.5 |
3.15 |
3.8 |
89.2 |
17314 |
0.0601 |
|
3×400 |
4.5 |
3.15 |
4 |
95.6 |
20532 |
0.047 |
|
3×500 |
4.5 |
3.15 |
4.2 |
103.7 |
24575 |
0.0366 |
|
3×630 |
4.5 |
3.15 |
4.5 |
112.7 |
29682 |
0.0283 |
SWA is chosen when the installation involves long pulling distances or higher tensile stress during laying.
Yes, slightly. It increases stiffness, so larger bending radius is required during installation.
Typically 15 × cable OD for installation and 12 × OD for fixed installation.
Up to 90°C continuous, with short-circuit up to 250°C (max 5 seconds).
Yes. SWA provides sufficient mechanical protection for direct burial with proper trench bedding.
Avoid sharp bends, control pulling force, and use rollers for long routes to prevent sheath damage.
