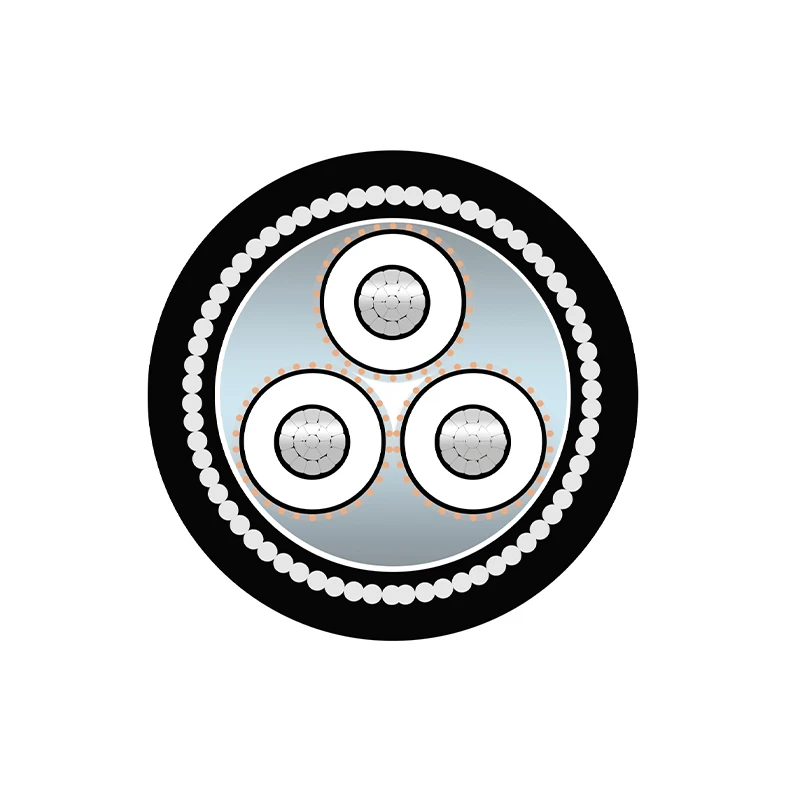

The AL/XLPE/CWS/SWA/PVC three-core power cable 26/35kV manufactured by Zhongdong Cable is designed in accordance with IEC 60502-2 and IEC 60228 (Class 1 or Class 2 aluminium conductor). It adopts aluminium conductors, XLPE insulation, copper wire screen (CWS), steel wire armour (SWA), and PVC outer sheath, providing a practical solution for high-capacity medium-voltage underground distribution systems.
The aluminium conductor helps reduce cable weight and overall project cost, while the SWA layer provides additional mechanical protection for underground installations and long cable routes.
|
Type |
Steel Wire Armoured MV Power Cable |
Voltage Rating |
26/35 kV |
|
Cores |
3 Core |
Conductor |
Copper, Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE |
Screen |
Copper Wire Screen (CWS) |
|
Armour |
Galvanized Steel Wire Armour (SWA) |
Sheath |
PVC ST2 |
|
Standards |
IEC 60502-2 / IEC 60228 |
Cross Reference |
YJLSV32 / NA2XSERY-Armoured Equivalent |

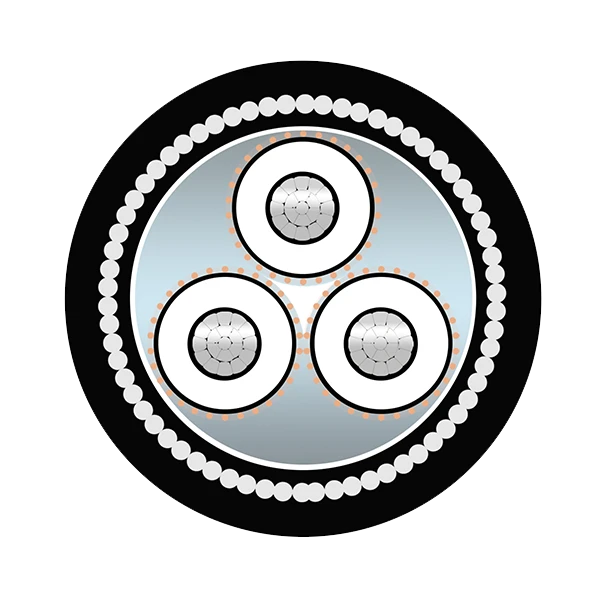

Conductor: Stranded Aluminium conductor
Conductor Screen: Semi-conductive layer for electric field control
Insulation: XLPE with stable thermal and dielectric performance
Insulation Screen: Semi-conductive layer for uniform field distribution
Metallic Screen: Copper wire screen for grounding and fault current path
Armour: Galvanized steel wire armour (SWA) for high tensile strength and mechanical protection
Fillers: To maintain circular cable shape and stability
Outer Sheath: PVC (ST2), resistant to moisture and abrasion
Design: Three-core SWA armoured MV cable (26/35 kV)
The 26/35kV aluminium SWA three-core cable is suitable for projects where economical power transmission and mechanical protection are required.
Typical applications:
Utility medium-voltage distribution networks
Industrial power supply systems
Renewable energy collection networks
Substation feeder connections
Underground infrastructure projects
Mining and remote power supply systems
Direct burial cable installations
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
|
No.of Cores and Nominal Cross Section (mm²) |
Nominal Insulation Thickness (mm) |
Nominal Steel Wire Diameter (mm) |
Nominal Sheath Thickness (mm) |
Approx. Overal Diameter (mm) |
Approx. Weight (kg/km) |
Max. DC Resistance of Conductor at 20℃ (Ω/km) |
|
Al |
Al |
|||||
|
3×50 |
8 |
3.15 |
3.5 |
81.1 |
8742 |
0.641 |
|
3×70 |
8 |
3.15 |
3.6 |
85.2 |
9453 |
0.443 |
|
3×95 |
8 |
3.15 |
3.7 |
89.2 |
10259 |
0.32 |
|
3×120 |
8 |
3.15 |
3.8 |
92.2 |
10964 |
0.253 |
|
3×150 |
8 |
3.15 |
3.9 |
95.9 |
11965 |
0.206 |
|
3×185 |
8 |
3.15 |
4.1 |
100 |
12916 |
0.164 |
|
3×240 |
8 |
3.15 |
4.2 |
105.3 |
14180 |
0.125 |
|
3×300 |
8 |
3.15 |
4.4 |
110.7 |
15595 |
0.1 |
|
3×400 |
8 |
3.15 |
4.6 |
117.3 |
17675 |
0.0778 |
|
3×500 |
8 |
3.15 |
4.8 |
125.4 |
20009 |
0.0605 |
|
3×630 |
8 |
3.15 |
5.1 |
134.2 |
22527 |
0.0469 |
It is mainly used in primary MV distribution systems and large industrial power networks where higher voltage levels are required.
SWA provides strong mechanical protection for underground installation, especially in areas with soil pressure or risk of external damage.
Yes, it is commonly used in compact urban grids where space saving and simplified installation are important.
Due to higher voltage and larger size, proper cable handling and controlled pulling force are critical during laying.
Yes, but route design should minimize sharp bends and reduce installation stress to maintain insulation integrity.
