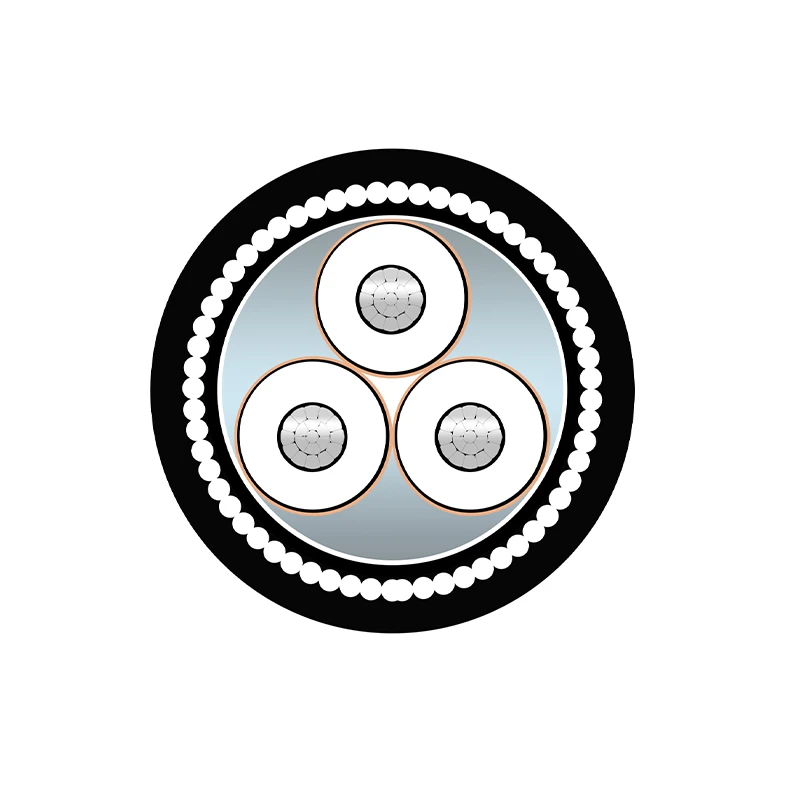

The AL/XLPE/CTS/SWA/PVC three-core power cable 8.7/15kV manufactured by Zhongdong Cable is designed in accordance with IEC 60502-2 and IEC 60228 (Class 1 or Class 2 aluminium conductor). It uses aluminium conductors, XLPE insulation, copper wire screen (CTS), steel wire armour (SWA), and PVC outer sheath, providing a cost-efficient solution for medium-voltage underground distribution systems with strong mechanical protection.
The SWA structure improves tensile strength, making the cable suitable for long pulling routes and underground installations where higher mechanical stress may occur.
|
Type |
Steel Tape Armoured Medium Voltage Power Cable |
Voltage Rating |
8.7/15 kV |
|
Cores |
3 Core |
Conductor |
Aluminium, Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE |
Screen |
Copper Tape Screen (CTS) |
|
Armour |
Galvanized Steel Wire Armour (SWA) |
Sheath |
PVC ST2 |
|
Standards |
IEC 60502-2 / IEC 60228 |
Cross Reference |
YJLV32 / NA2XSERY-Armoured Equivalent |

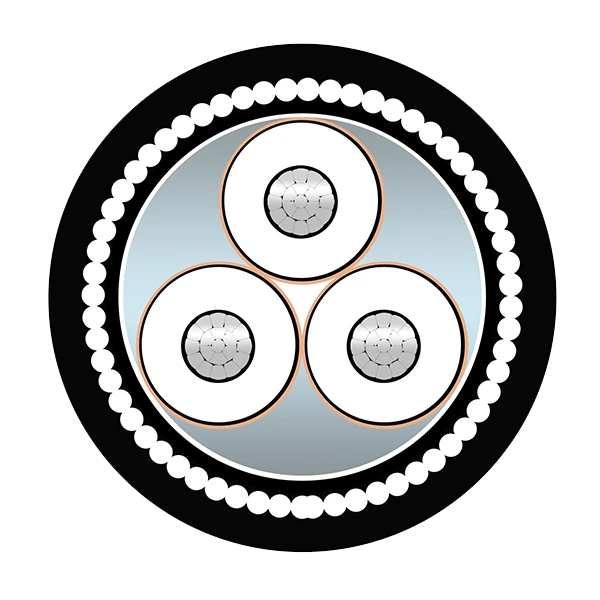

Conductor: Stranded aluminium conductor
Conductor Screen: Semi-conductive layer for electric field control
Insulation: XLPE with stable thermal and dielectric performance
Insulation Screen: Semi-conductive layer for uniform field distribution
Metallic Screen: Copper Tape screen for grounding and fault current path
Armour: Galvanized steel wire armour (SWA) for high tensile strength and mechanical protection
Fillers: To maintain circular cable shape and stability
Outer Sheath: PVC (ST2), resistant to moisture and abrasion
Design: Three-core SWA armoured MV cable (8.7/15 kV)
This 8.7/15kV aluminium SWA three-core cable is commonly used in underground MV systems where cost control and mechanical protection are both required.
Typical applications:
Long-distance underground distribution networks
Utility and municipal power systems
Industrial plant power supply
Substation feeder circuits
Road and railway crossing installations
Tunnel and corridor cable systems
Cost-sensitive infrastructure projects
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
|
No. of Cores and Nominal Cross Section (mm²) |
Nominal Insulation Thickness (mm) |
Nominal Steel Wire Diameter (mm) |
Nominal Sheath Thickness (mm) |
Approx. |
Approx. Weight (kg/km) |
Max. DC Resistance of Conductor at 20℃ (Ω/km) |
|
Overall |
||||||
|
Diameter |
||||||
|
(mm) |
||||||
|
3*25 |
4.5 |
2.5 |
2.6 |
53 |
4235 |
1.2 |
|
3*35 |
4.5 |
2.5 |
2.7 |
55.4 |
4580 |
0.868 |
|
3*50 |
4.5 |
2.5 |
2.8 |
58.1 |
4989 |
0.641 |
|
3*70 |
4.5 |
2.5 |
3 |
62.4 |
5657 |
0.443 |
|
3×95 |
4.5 |
2.5 |
3.1 |
66.5 |
6299 |
0.32 |
|
3×120 |
4.5 |
2.5 |
3.2 |
69.5 |
6912 |
0.253 |
|
3×150 |
4.5 |
3.15 |
3.3 |
74.2 |
8342 |
0.206 |
|
3×185 |
4.5 |
3.15 |
3.5 |
78.5 |
9231 |
0.164 |
|
3×240 |
4.5 |
3.15 |
3.6 |
83.9 |
10397 |
0.125 |
|
3×300 |
4.5 |
3.15 |
3.8 |
89.2 |
11770 |
0.1 |
|
3×400 |
4.5 |
3.15 |
4 |
95.6 |
13389 |
0.0778 |
|
3×500 |
4.5 |
3.15 |
4.2 |
103.7 |
15509 |
0.0605 |
|
3×630 |
4.5 |
3.15 |
4.5 |
112.7 |
17910 |
0.0469 |
It reduces cable cost and weight, making it suitable for long-distance underground distribution projects.
SWA increases tensile strength and mechanical protection, especially during pulling and direct burial installation.
Yes, aluminium has higher resistance than copper, so conductor size is usually increased to meet the same load requirement.
Typically 15 × overall cable diameter during installation and 12 × diameter for fixed installation.
Yes. SWA provides sufficient mechanical protection for direct burial in properly prepared trenches.
Avoid sharp bends, control pulling force, and use rollers for long runs to prevent sheath and armour damage.
