The 0.6/1 kV CU/XLPE/STA/PVC Multicore Power Cable, manufactured by Zhongdong Cable, is built for low-voltage electrical installations that require both multicore construction and mechanical protection. It incorporates stranded copper conductors, XLPE insulation, steel tape armour (STA), and a PVC outer sheath to provide a durable cable structure for fixed installations. Manufactured in accordance with IEC 60502-1, it is supplied in a range of core configurations and conductor sizes for different project requirements.
|
Type |
Armoured Low Voltage Power Cable |
Voltage |
0.6/1 kV |
|
Cores |
2 Core to 5 Core |
Conductor |
Stranded Copper Conductor(IEC 60228) |
|
Insulation |
XLPE |
Sheath |
PVC ST2 |
|
Armour |
Steel Tape Armour (STA) |
Conductor Sizes |
16 mm²- 630 mm² |
|
Standards |
IEC 60502-1 / DIN VDE 0276-603 |
Cross-Ref |
YJV22 / N2XBY |

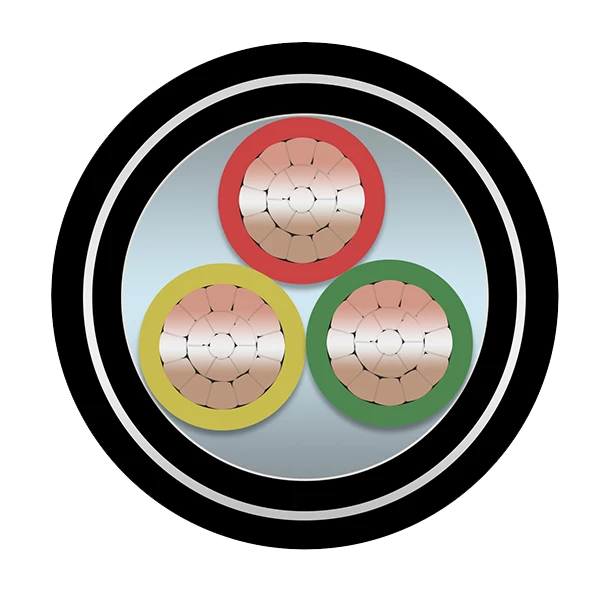

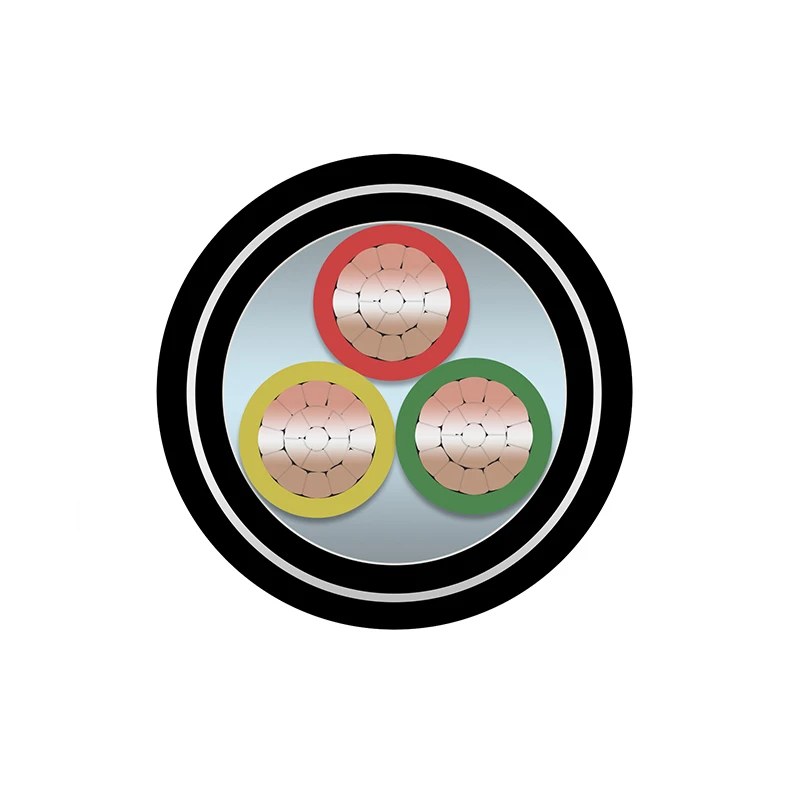

Conductor: Stranded Copper conductor complying with IEC 60228 Class 2.
Insulation:Cross-linked polyethylene (XLPE) insulation rated for 90°C continuous operation.
Core Assembly: Insulated cores laid up with fillers where required.
Armour: Steel tape armour (STA).
Outer Sheath: PVC ST2 outer sheath.
CU/XLPE/STA/PVC Multicore Power Cables are used for fixed low-voltage power distribution where the cable may be exposed to mechanical stress during installation or service. The steel tape armour provides added protection, making the cable suitable for indoor and outdoor installations, cable trenches, underground ducts, and other locations where extra mechanical strength is required.
Typical applications include:
Industrial Facilities: Supplying power to production equipment, workshops, and manufacturing plants.
Commercial Buildings: Feeding distribution boards, electrical rooms, and building services.
Utility Networks: Used in substations, pumping stations, and municipal power distribution systems.
Underground Installations: Suitable for cable ducts, trenches, and other protected underground installations.
IEC: IEC 60502-1, IEC 60228
VDE / EN: DIN VDE 0276-603
BS: BS 7889
AS/NZS: AS/NZS 5000.1
ASTM (US): ASTM B3, ASTM B8
|
No. of Cores and Nominal Cross Section |
Nominal Insulation Thickness |
Nominal Galvanized Steel Tape Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight |
Max. D.C. Resistance of Conductor at 20℃ |
||
|
No. × mm² |
mm |
mm |
mm |
mm |
Cu |
Al |
Cu |
Al |
|
kg/km |
kg/km |
Ω/km |
Ω/km |
|||||
|
2×1.5 |
0.7 |
0.2 |
1.8 |
12.2 |
220 |
– |
12.1 |
– |
|
2×2.5 |
0.7 |
0.2 |
1.8 |
13 |
256 |
228 |
7.41 |
12.1 |
|
2×4 |
0.7 |
0.2 |
1.8 |
14 |
307 |
260 |
4.61 |
7.41 |
|
2×6 |
0.7 |
0.2 |
1.8 |
15 |
370 |
300 |
3.08 |
4.61 |
|
2×10 |
0.7 |
0.2 |
1.8 |
17.5 |
509 |
373 |
1.83 |
3.08 |
|
2×16 |
0.7 |
0.2 |
1.8 |
19.1 |
659 |
461 |
1.15 |
1.91 |
|
2×25 |
0.9 |
0.2 |
1.8 |
22.3 |
915 |
609 |
0.727 |
1.2 |
|
2×35 |
0.9 |
0.2 |
1.8 |
24.3 |
1147 |
722 |
0.524 |
0.868 |
|
2×50 |
1 |
0.2 |
1.8 |
27.3 |
1463 |
874 |
0.387 |
0.641 |
|
2×70 |
1.1 |
0.2 |
1.9 |
30.9 |
1939 |
1106 |
0.268 |
0.443 |
|
2×95 |
1.1 |
0.2 |
2 |
35.4 |
2587 |
1433 |
0.193 |
0.32 |
|
2×120 |
1.2 |
0.5 |
2.2 |
40.2 |
3557 |
2078 |
0.153 |
0.253 |
|
2×150 |
1.4 |
0.5 |
2.3 |
44.2 |
4269 |
2465 |
0.124 |
0.206 |
|
2×185 |
1.6 |
0.5 |
2.5 |
49 |
5250 |
2977 |
0.0991 |
0.164 |
|
2×240 |
1.7 |
0.5 |
2.6 |
54.2 |
6551 |
3603 |
0.0754 |
0.125 |
|
2×300 |
1.8 |
0.5 |
2.8 |
59.8 |
8038 |
4330 |
0.0601 |
0.1 |
|
2×400 |
2 |
0.5 |
3 |
66.6 |
10056 |
5268 |
0.047 |
0.0778 |
|
3×1.5 |
0.7 |
0.2 |
1.8 |
12.7 |
246 |
– |
12.1 |
– |
|
3×2.5 |
0.7 |
0.2 |
1.8 |
13.5 |
292 |
249 |
7.41 |
12.1 |
|
3×4 |
0.7 |
0.2 |
1.8 |
14.5 |
359 |
287 |
4.61 |
7.41 |
|
3×6 |
0.7 |
0.2 |
1.8 |
15.6 |
441 |
335 |
3.08 |
4.61 |
|
3×10 |
0.7 |
0.2 |
1.8 |
18.4 |
621 |
422 |
1.83 |
3.08 |
|
3×16 |
0.7 |
0.2 |
1.8 |
20.1 |
827 |
529 |
1.15 |
1.91 |
|
3×25 |
0.9 |
0.2 |
1.8 |
23.5 |
1170 |
711 |
0.727 |
1.2 |
|
3×35 |
0.9 |
0.2 |
1.8 |
25.7 |
1491 |
853 |
0.524 |
0.868 |
|
3×50 |
1 |
0.2 |
1.8 |
28.9 |
1922 |
1045 |
0.387 |
0.641 |
|
3×70 |
1.1 |
0.2 |
2 |
33.7 |
2657 |
1409 |
0.268 |
0.443 |
|
3×95 |
1.1 |
0.5 |
2.2 |
39.2 |
3884 |
2153 |
0.193 |
0.32 |
|
3×120 |
1.2 |
0.5 |
2.3 |
42.9 |
4728 |
2517 |
0.153 |
0.253 |
|
3×150 |
1.4 |
0.5 |
2.4 |
47.6 |
5749 |
3043 |
0.124 |
0.206 |
|
3×185 |
1.6 |
0.5 |
2.6 |
52.3 |
7049 |
3636 |
0.0991 |
0.164 |
|
3×240 |
1.7 |
0.5 |
2.7 |
58.3 |
8927 |
4504 |
0.0754 |
0.125 |
|
3×300 |
1.8 |
0.5 |
2.9 |
63.9 |
10919 |
5362 |
0.0601 |
0.1 |
|
3×400 |
2 |
0.5 |
3.2 |
71.4 |
13772 |
6602 |
0.047 |
0.0778 |
|
4×1.5 |
0.7 |
0.2 |
1.8 |
13.4 |
279 |
– |
12.1 |
– |
|
4×2.5 |
0.7 |
0.2 |
1.8 |
14.3 |
336 |
278 |
7.41 |
12.1 |
|
4×4 |
0.7 |
0.2 |
1.8 |
15.5 |
420 |
325 |
4.61 |
7.41 |
|
4×6 |
0.7 |
0.2 |
1.8 |
16.7 |
525 |
383 |
3.08 |
4.61 |
|
4×10 |
0.7 |
0.2 |
1.8 |
19.8 |
751 |
487 |
1.83 |
3.08 |
|
4×16 |
0.7 |
0.2 |
1.8 |
21.7 |
1016 |
619 |
1.15 |
1.91 |
|
4×25 |
0.9 |
0.2 |
1.8 |
25.6 |
1455 |
843 |
0.727 |
1.2 |
|
4×35 |
0.9 |
0.2 |
1.8 |
28 |
1871 |
1021 |
0.524 |
0.868 |
|
4×50 |
1 |
0.2 |
1.9 |
31.8 |
2440 |
1274 |
0.387 |
0.641 |
|
4×70 |
1.1 |
0.2 |
2.1 |
37 |
3387 |
1723 |
0.268 |
0.443 |
|
4×95 |
1.1 |
0.5 |
2.3 |
43 |
4907 |
2599 |
0.193 |
0.32 |
|
4×120 |
1.2 |
0.5 |
2.4 |
47.5 |
6044 |
3100 |
0.153 |
0.253 |
|
4×150 |
1.4 |
0.5 |
2.6 |
52.5 |
7332 |
3724 |
0.124 |
0.206 |
|
4×185 |
1.6 |
0.5 |
2.7 |
57.9 |
9048 |
4503 |
0.0991 |
0.164 |
|
4×240 |
1.7 |
0.5 |
2.9 |
64.4 |
11449 |
5552 |
0.0754 |
0.125 |
|
4×300 |
1.8 |
0.5 |
3.1 |
70.6 |
14041 |
6634 |
0.0601 |
0.1 |
|
4×400 |
2 |
0.5 |
3.4 |
79.3 |
17835 |
8279 |
0.047 |
0.0778 |
|
5×1.5 |
0.7 |
0.2 |
1.8 |
14.2 |
314 |
– |
12.1 |
– |
|
5×2.5 |
0.7 |
0.2 |
1.8 |
15.2 |
383 |
311 |
7.41 |
12.1 |
|
5×4 |
0.7 |
0.2 |
1.8 |
16.5 |
485 |
365 |
4.61 |
7.41 |
|
5×6 |
0.7 |
0.2 |
1.8 |
17.9 |
613 |
434 |
3.08 |
4.61 |
|
5×10 |
0.7 |
0.2 |
1.8 |
21.3 |
886 |
558 |
1.83 |
3.08 |
|
5×16 |
0.7 |
0.2 |
1.8 |
23.4 |
1212 |
717 |
1.15 |
1.91 |
|
5×25 |
0.9 |
0.2 |
1.8 |
27.8 |
1751 |
985 |
0.727 |
1.2 |
|
5×35 |
0.9 |
0.2 |
1.9 |
30.7 |
2277 |
1214 |
0.524 |
0.868 |
|
5×50 |
1 |
0.2 |
2 |
35.6 |
3029 |
1571 |
0.387 |
0.641 |
|
5×70 |
1.1 |
0.5 |
2.3 |
42 |
4551 |
2470 |
0.268 |
0.443 |
|
5×95 |
1.1 |
0.5 |
2.4 |
47.5 |
6006 |
3121 |
0.193 |
0.32 |
|
5×120 |
1.2 |
0.5 |
2.5 |
52 |
7354 |
3677 |
0.153 |
0.253 |
STA provides additional mechanical protection against external impact and installation damage.
The cable is rated for 90°C continuous operation and 250°C for up to 5 seconds under short-circuit conditions.
The recommended minimum bending radius is 12 × the overall cable diameter (12 × OD).
Yes. It is suitable for installation in cable trenches, underground ducts, and other fixed installations with appropriate protection.
