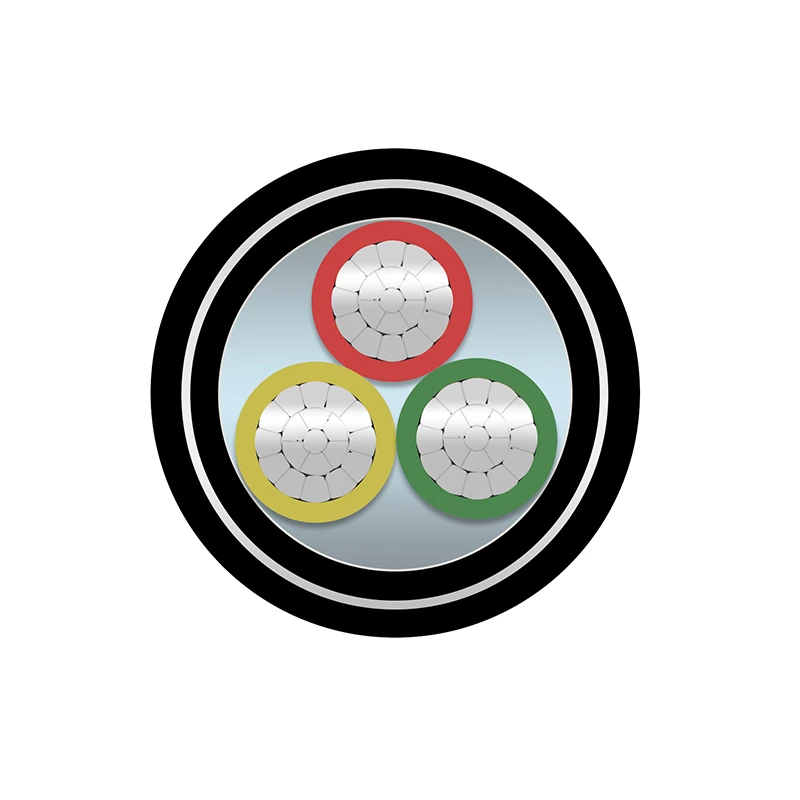

The 0.6/1 kV AL/XLPE/STA/PVC Multicore Power Cable, manufactured by Zhongdong Cable, is a dependable choice for low-voltage electrical networks where durability and cost efficiency are equally important. The combination of aluminum conductors and steel tape armour reduces material costs while providing additional mechanical protection for fixed installations. Manufactured to IEC 60502-1, the cable is available in multiple core configurations and conductor sizes.
|
Type |
Armoured Low Voltage Power Cable |
Voltage |
0.6/1 kV |
|
Cores |
2 Core to 5 Core |
Conductor |
Stranded Aluminum Conductor(IEC 60228) |
|
Insulation |
XLPE |
Sheath |
PVC ST2 |
|
Armour |
Steel Tape Armour (STA) |
Conductor Sizes |
16 mm²- 630 mm² |
|
Standards |
IEC 60502-1 / DIN VDE 0276-603 |
Cross-Ref |
YJLV22 / NA2XBY |

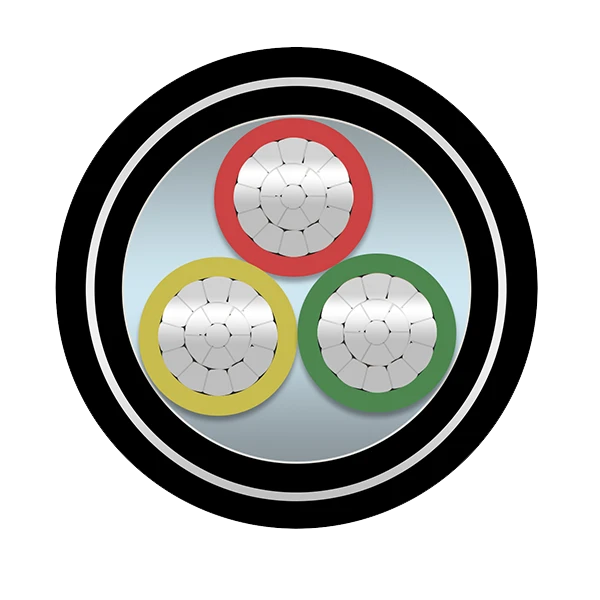

Conductor: Stranded aluminum conductor complying with IEC 60228 Class 2.
Insulation:Cross-linked polyethylene (XLPE) insulation rated for 90°C continuous operation.
Core Assembly: Insulated cores laid up with fillers where required.
Armour: Steel tape armour (STA).
Outer Sheath: PVC ST2 outer sheath.
AL/XLPE/STA/PVC Multicore Power Cables are designed for fixed low-voltage power distribution in locations where additional mechanical protection is required.The steel tape armour helps protect the cable from mechanical damage, making it suitable for fixed installations in industrial, commercial, and public utility projects.
Typical applications include:
Building electrical distribution systems
Industrial power networks
Municipal infrastructure
Underground duct and trench installations
IEC: IEC 60502-1, IEC 60228
VDE / EN: DIN VDE 0276-603
BS: BS 7889
AS/NZS: AS/NZS 5000.1
ASTM (US): ASTM B230, ASTM B231
|
No. of Cores and Nominal Cross Section |
Nominal Insulation Thickness |
Nominal Galvanized Steel Tape Thickness |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight |
Max. D.C. Resistance of Conductor at 20℃ |
||
|
No. × mm² |
mm |
mm |
mm |
mm |
Cu |
Al |
Cu |
Al |
|
kg/km |
kg/km |
Ω/km |
Ω/km |
|||||
|
2×1.5 |
0.7 |
0.2 |
1.8 |
12.2 |
220 |
– |
12.1 |
– |
|
2×2.5 |
0.7 |
0.2 |
1.8 |
13 |
256 |
228 |
7.41 |
12.1 |
|
2×4 |
0.7 |
0.2 |
1.8 |
14 |
307 |
260 |
4.61 |
7.41 |
|
2×6 |
0.7 |
0.2 |
1.8 |
15 |
370 |
300 |
3.08 |
4.61 |
|
2×10 |
0.7 |
0.2 |
1.8 |
17.5 |
509 |
373 |
1.83 |
3.08 |
|
2×16 |
0.7 |
0.2 |
1.8 |
19.1 |
659 |
461 |
1.15 |
1.91 |
|
2×25 |
0.9 |
0.2 |
1.8 |
22.3 |
915 |
609 |
0.727 |
1.2 |
|
2×35 |
0.9 |
0.2 |
1.8 |
24.3 |
1147 |
722 |
0.524 |
0.868 |
|
2×50 |
1 |
0.2 |
1.8 |
27.3 |
1463 |
874 |
0.387 |
0.641 |
|
2×70 |
1.1 |
0.2 |
1.9 |
30.9 |
1939 |
1106 |
0.268 |
0.443 |
|
2×95 |
1.1 |
0.2 |
2 |
35.4 |
2587 |
1433 |
0.193 |
0.32 |
|
2×120 |
1.2 |
0.5 |
2.2 |
40.2 |
3557 |
2078 |
0.153 |
0.253 |
|
2×150 |
1.4 |
0.5 |
2.3 |
44.2 |
4269 |
2465 |
0.124 |
0.206 |
|
2×185 |
1.6 |
0.5 |
2.5 |
49 |
5250 |
2977 |
0.0991 |
0.164 |
|
2×240 |
1.7 |
0.5 |
2.6 |
54.2 |
6551 |
3603 |
0.0754 |
0.125 |
|
2×300 |
1.8 |
0.5 |
2.8 |
59.8 |
8038 |
4330 |
0.0601 |
0.1 |
|
2×400 |
2 |
0.5 |
3 |
66.6 |
10056 |
5268 |
0.047 |
0.0778 |
|
3×1.5 |
0.7 |
0.2 |
1.8 |
12.7 |
246 |
– |
12.1 |
– |
|
3×2.5 |
0.7 |
0.2 |
1.8 |
13.5 |
292 |
249 |
7.41 |
12.1 |
|
3×4 |
0.7 |
0.2 |
1.8 |
14.5 |
359 |
287 |
4.61 |
7.41 |
|
3×6 |
0.7 |
0.2 |
1.8 |
15.6 |
441 |
335 |
3.08 |
4.61 |
|
3×10 |
0.7 |
0.2 |
1.8 |
18.4 |
621 |
422 |
1.83 |
3.08 |
|
3×16 |
0.7 |
0.2 |
1.8 |
20.1 |
827 |
529 |
1.15 |
1.91 |
|
3×25 |
0.9 |
0.2 |
1.8 |
23.5 |
1170 |
711 |
0.727 |
1.2 |
|
3×35 |
0.9 |
0.2 |
1.8 |
25.7 |
1491 |
853 |
0.524 |
0.868 |
|
3×50 |
1 |
0.2 |
1.8 |
28.9 |
1922 |
1045 |
0.387 |
0.641 |
|
3×70 |
1.1 |
0.2 |
2 |
33.7 |
2657 |
1409 |
0.268 |
0.443 |
|
3×95 |
1.1 |
0.5 |
2.2 |
39.2 |
3884 |
2153 |
0.193 |
0.32 |
|
3×120 |
1.2 |
0.5 |
2.3 |
42.9 |
4728 |
2517 |
0.153 |
0.253 |
|
3×150 |
1.4 |
0.5 |
2.4 |
47.6 |
5749 |
3043 |
0.124 |
0.206 |
|
3×185 |
1.6 |
0.5 |
2.6 |
52.3 |
7049 |
3636 |
0.0991 |
0.164 |
|
3×240 |
1.7 |
0.5 |
2.7 |
58.3 |
8927 |
4504 |
0.0754 |
0.125 |
|
3×300 |
1.8 |
0.5 |
2.9 |
63.9 |
10919 |
5362 |
0.0601 |
0.1 |
|
3×400 |
2 |
0.5 |
3.2 |
71.4 |
13772 |
6602 |
0.047 |
0.0778 |
|
4×1.5 |
0.7 |
0.2 |
1.8 |
13.4 |
279 |
– |
12.1 |
– |
|
4×2.5 |
0.7 |
0.2 |
1.8 |
14.3 |
336 |
278 |
7.41 |
12.1 |
|
4×4 |
0.7 |
0.2 |
1.8 |
15.5 |
420 |
325 |
4.61 |
7.41 |
|
4×6 |
0.7 |
0.2 |
1.8 |
16.7 |
525 |
383 |
3.08 |
4.61 |
|
4×10 |
0.7 |
0.2 |
1.8 |
19.8 |
751 |
487 |
1.83 |
3.08 |
|
4×16 |
0.7 |
0.2 |
1.8 |
21.7 |
1016 |
619 |
1.15 |
1.91 |
|
4×25 |
0.9 |
0.2 |
1.8 |
25.6 |
1455 |
843 |
0.727 |
1.2 |
|
4×35 |
0.9 |
0.2 |
1.8 |
28 |
1871 |
1021 |
0.524 |
0.868 |
|
4×50 |
1 |
0.2 |
1.9 |
31.8 |
2440 |
1274 |
0.387 |
0.641 |
|
4×70 |
1.1 |
0.2 |
2.1 |
37 |
3387 |
1723 |
0.268 |
0.443 |
|
4×95 |
1.1 |
0.5 |
2.3 |
43 |
4907 |
2599 |
0.193 |
0.32 |
|
4×120 |
1.2 |
0.5 |
2.4 |
47.5 |
6044 |
3100 |
0.153 |
0.253 |
|
4×150 |
1.4 |
0.5 |
2.6 |
52.5 |
7332 |
3724 |
0.124 |
0.206 |
|
4×185 |
1.6 |
0.5 |
2.7 |
57.9 |
9048 |
4503 |
0.0991 |
0.164 |
|
4×240 |
1.7 |
0.5 |
2.9 |
64.4 |
11449 |
5552 |
0.0754 |
0.125 |
|
4×300 |
1.8 |
0.5 |
3.1 |
70.6 |
14041 |
6634 |
0.0601 |
0.1 |
|
4×400 |
2 |
0.5 |
3.4 |
79.3 |
17835 |
8279 |
0.047 |
0.0778 |
|
5×1.5 |
0.7 |
0.2 |
1.8 |
14.2 |
314 |
– |
12.1 |
– |
|
5×2.5 |
0.7 |
0.2 |
1.8 |
15.2 |
383 |
311 |
7.41 |
12.1 |
|
5×4 |
0.7 |
0.2 |
1.8 |
16.5 |
485 |
365 |
4.61 |
7.41 |
|
5×6 |
0.7 |
0.2 |
1.8 |
17.9 |
613 |
434 |
3.08 |
4.61 |
|
5×10 |
0.7 |
0.2 |
1.8 |
21.3 |
886 |
558 |
1.83 |
3.08 |
|
5×16 |
0.7 |
0.2 |
1.8 |
23.4 |
1212 |
717 |
1.15 |
1.91 |
|
5×25 |
0.9 |
0.2 |
1.8 |
27.8 |
1751 |
985 |
0.727 |
1.2 |
|
5×35 |
0.9 |
0.2 |
1.9 |
30.7 |
2277 |
1214 |
0.524 |
0.868 |
|
5×50 |
1 |
0.2 |
2 |
35.6 |
3029 |
1571 |
0.387 |
0.641 |
|
5×70 |
1.1 |
0.5 |
2.3 |
42 |
4551 |
2470 |
0.268 |
0.443 |
|
5×95 |
1.1 |
0.5 |
2.4 |
47.5 |
6006 |
3121 |
0.193 |
0.32 |
|
5×120 |
1.2 |
0.5 |
2.5 |
52 |
7354 |
3677 |
0.153 |
0.253 |
It provides extra mechanical protection for fixed cable installations.
No. The armour provides mechanical protection and is not intended to carry load current.
The cable is rated for 90°C continuous operation and 250°C for up to 5 seconds under short-circuit conditions.
Aluminum offers a lighter and more economical alternative for many power distribution applications.
