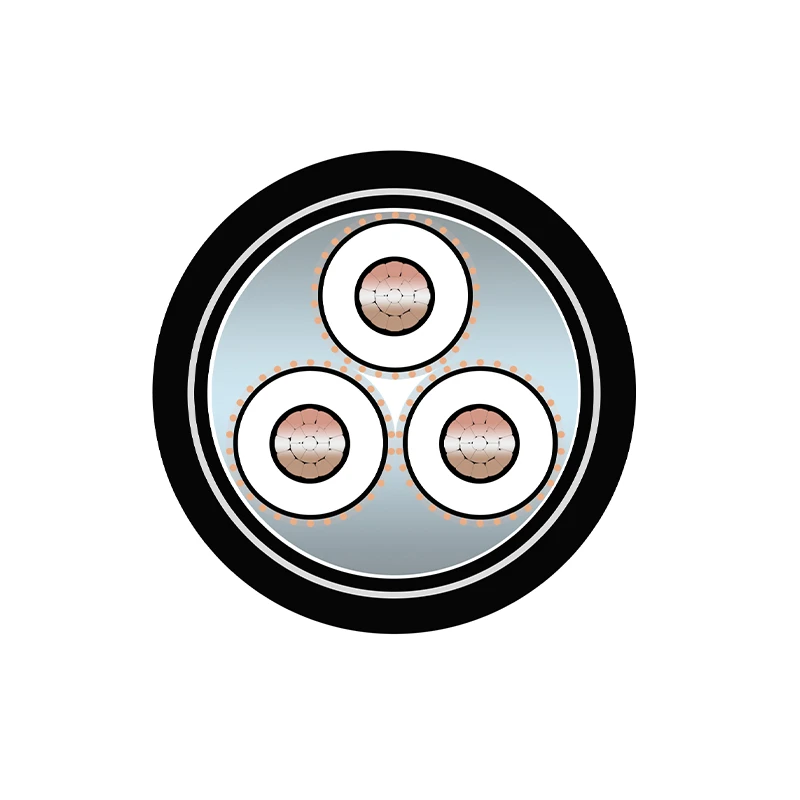

The CU/XLPE/CWS/STA/PVC three-core power cable 18/30kV manufactured by Zhongdong Cable is designed in accordance with IEC 60502-2 and IEC 60228 (Class 1 or Class 2 copper conductor). It combines copper conductors, XLPE insulation, copper wire screen (CWS), steel tape armour (STA), and PVC sheath, providing a stable and cost-effective solution for medium-voltage underground networks.
The three-core construction is widely used in balanced three-phase systems, while the STA layer improves resistance to mechanical stress and makes the cable suitable for direct burial and long-term underground use.
|
Type |
Stainless Steel Tape Armoured Medium Voltage Power Cable |
Voltage Rating |
18/30 kV |
|
Cores |
3 Core |
Conductor |
Copper, Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Screen |
Copper Wire Screen (CWS) |
|
Armour |
Stainless Steel Tape Armour (SSTA) |
Sheath |
PVC ST2 |
|
Standards |
IEC 60502-2 / IEC 60228 |
Cross Reference |
YJSV62/ N2XSBY Equivalent |

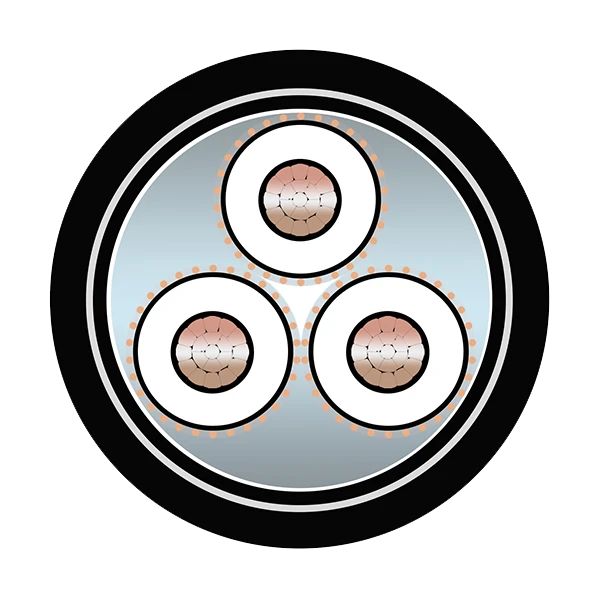

Conductor: Stranded copper conductor(Class 1 or Class 2)
Conductor Screen: Semi-conductive layer for electric field control
Insulation: XLPE with high thermal endurance and dielectric strength
Insulation Screen: Semi-conductive layer for uniform stress distribution
Metallic Screen: Copper wire screen (CWS) for fault current return and grounding
Armour: Stainless steel tape armour (SSTA) for mechanical protection and anti-rodent performance
Bedding: Protective layer separating armour from insulation system
Outer Sheath: PVC (ST2), moisture and abrasion resistant
Design: Single-core, SSTA armoured high-voltage MV cable (18/30 kV)
This 18/30kV 3-core copper STA cable is used in underground MV systems where space, protection, and installation efficiency all matter.
Typical applications:
Urban underground power distribution
Substation feeder and outgoing circuits
Industrial plant power systems
Road and railway crossings
Tunnel and utility corridors
Renewable energy distribution networks
Direct buried trench installations
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
It is usually chosen when trench space is limited and installers want to avoid laying three separate single-core cables.
Yes. The cable is stiffer, so it needs careful drum handling and steady pulling during installation.
Yes, but cable route planning is important to avoid too many sharp turns or heavy pulling sections.
The bedding must be even. Uneven ground can create pressure points on the steel tape armour.
For larger sizes, a cable roller and controlled tension equipment are recommended to avoid sheath damage.
It reduces installation complexity and keeps the phase arrangement fixed, especially in compact urban cable corridors.
