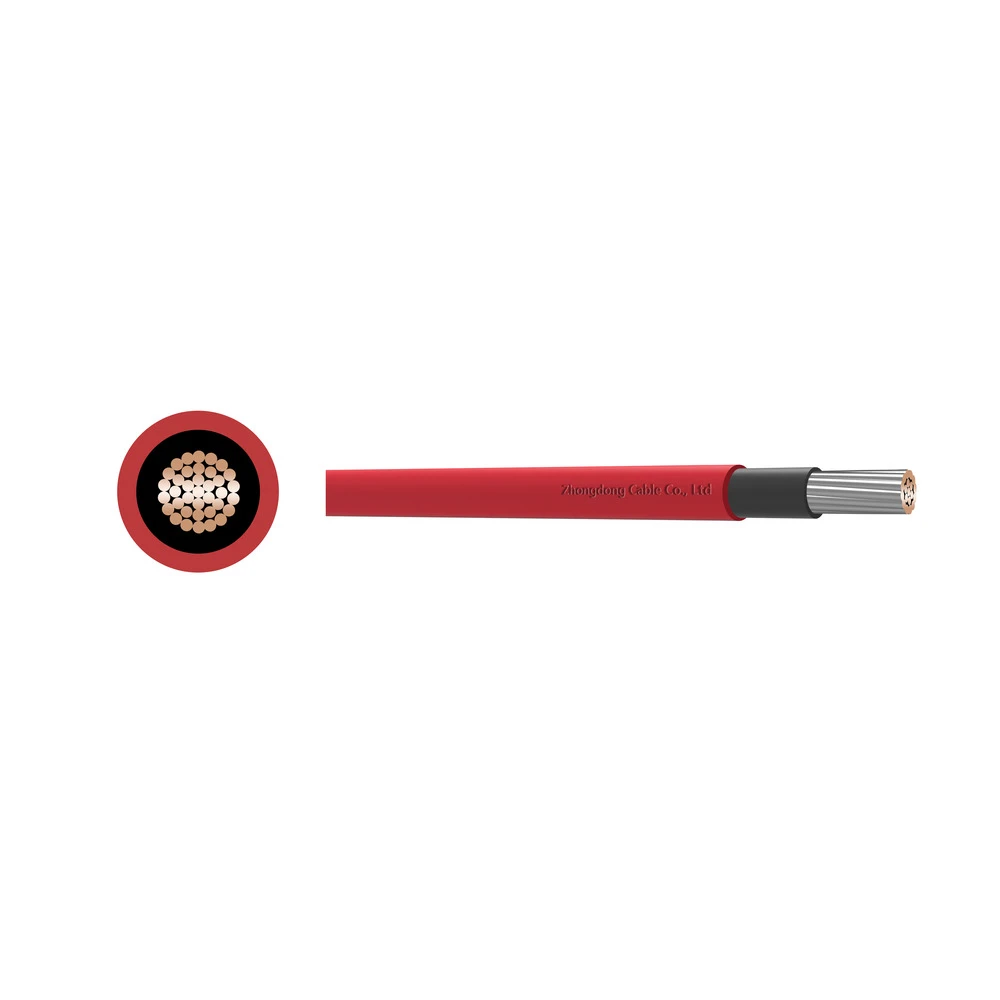

The PV1-F solar cable manufactured by Zhongdong Cable is a flexible photovoltaic cable designed for solar power generation systems, providing reliable DC power transmission between photovoltaic modules, inverters, combiner boxes, and other solar equipment.
The cable adopts a tinned copper conductor, cross-linked polyolefin insulation, and cross-linked polyolefin outer sheath, offering excellent resistance to UV radiation, ozone, moisture, and temperature variations. Its flexible structure allows easy installation in complex photovoltaic layouts.
PV1-F cable is widely used in rooftop solar systems, ground-mounted PV plants, and other renewable energy projects where long-term outdoor durability and electrical reliability are required.
|
Type |
Photovoltaic Solar Cable |
Voltage Rating |
1.5 kV DC |
|
Conductor |
Tinned Copper, Class 5 Flexible (IEC 60228) |
Insulation |
Halogen-Free Cross-Linked Polyolefin (XLPO) |
|
Sheath |
Halogen-Free Cross-Linked Polyolefin (XLPO) |
Flame Performance |
Flame Retardant, Halogen Free |
|
Temperature Range |
-40℃ to +90℃ |
Maximum Conductor Temperature |
120℃ (20,000 h) |
|
Installation |
Solar panels, PV arrays, outdoor and indoor installations |
Standards |
EN 50618 / 2 PfG 1169/08 |

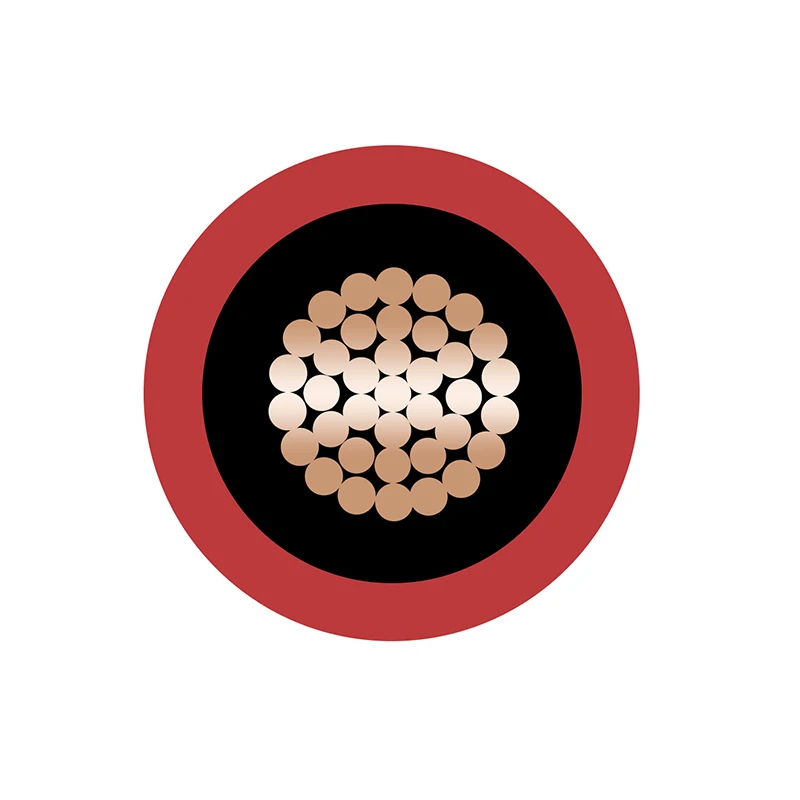

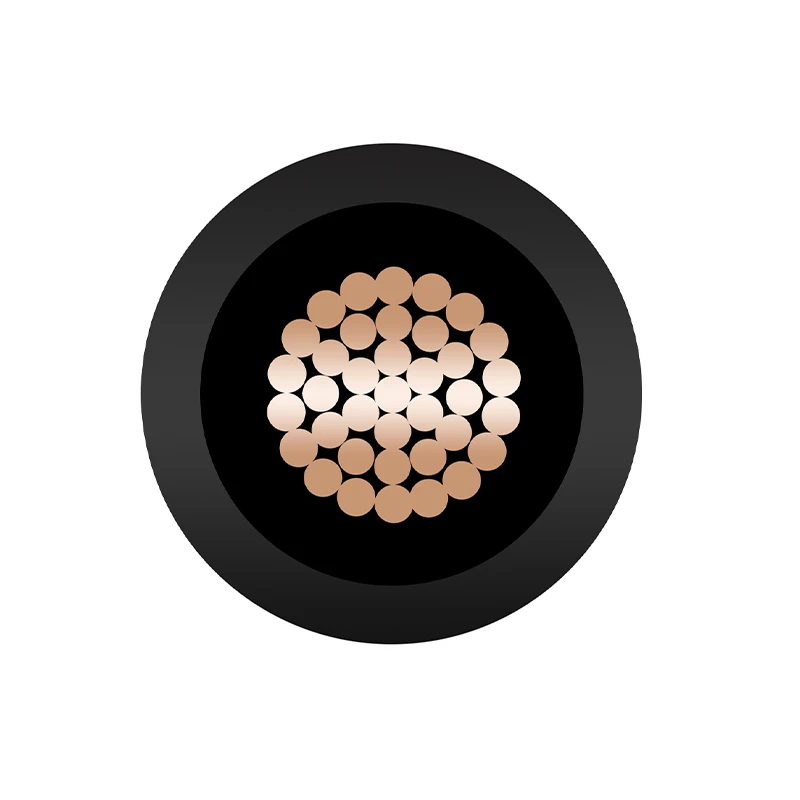

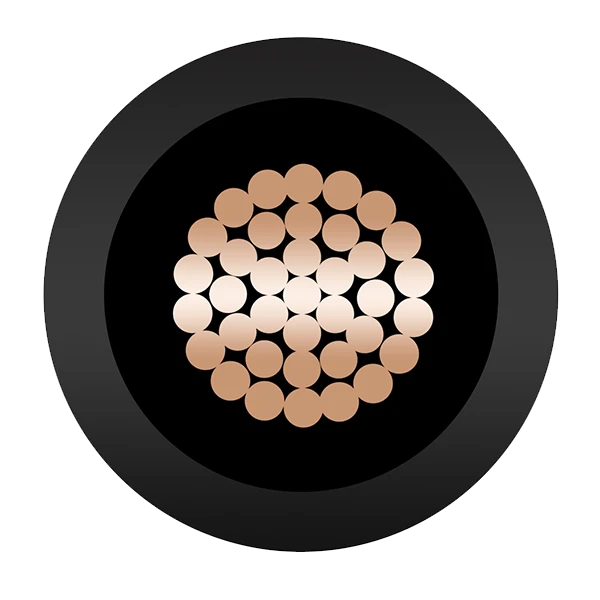

Conductor: Flexible tinned copper class 5 (K) as per IEC 60228
Insulation: Halogen - free cross - linked LS0H - XL compound, black
Outer sheath: Halogen - free cross - linked LS0H - XL compound, black or red
The PV1-F solar cable is designed for reliable DC power transmission in photovoltaic installations.
Typical applications include:
Solar panel string connections
Rooftop photovoltaic systems
Ground-mounted solar power plants
Solar inverter connections
DC combiner box connections
Floating solar projects
Industrial and commercial PV systems
Renewable energy infrastructure projects
EN 50618 / 2 PfG 1169/08
|
No. of Cores and Nominal Cross Section (No.× mm²) |
Max. Diameter of Copper Wires (mm) |
Min. Insulation Thickness (mm) |
Min. Sheath Thickness (mm) |
Approx. Weight (kg/km) |
Max. DC Resistance of Conductor at 20℃ (Ω/km) |
|
1×1.5 |
0.26 |
0.5 |
0.5 |
32 |
13.7 |
|
1×2.5 |
0.26 |
0.5 |
0.5 |
43 |
8.21 |
|
1×4 |
0.31 |
0.5 |
0.5 |
56 |
5.09 |
|
1×6 |
0.31 |
0.5 |
0.5 |
79 |
3.39 |
|
1×10 |
0.41 |
0.5 |
0.5 |
128 |
1.95 |
|
1×16 |
0.41 |
0.5 |
0.5 |
186 |
1.24 |
|
1×25 |
0.41 |
0.5 |
0.5 |
284 |
0.795 |
|
1×35 |
0.41 |
0.5 |
0.5 |
384 |
0.565 |
PV1-F solar cable is designed for DC connections in photovoltaic systems, mainly used between solar modules, inverters, and other PV equipment.
Both are photovoltaic cables with similar applications. H1Z2Z2-K is the latest European PV cable designation according to EN 50618, while PV1-F is an earlier commonly used PV cable type.
The tin coating improves corrosion resistance and helps maintain reliable electrical performance in outdoor environments with moisture and temperature changes.
Yes. The cable is designed for outdoor photovoltaic applications and provides resistance against UV radiation, ozone, and weather conditions.
4mm² and 6mm² are commonly selected for PV module string connections, depending on current rating, cable length, and system design.
Yes. Its flexible construction allows use in fixed PV installations and applications requiring cable routing flexibility.
PV1-F cables typically use halogen-free cross-linked materials and meet relevant flame-retardant requirements according to applicable standards.
When installed according to manufacturer recommendations, PV1-F cable is designed for long-term operation throughout the service life of modern photovoltaic systems.
