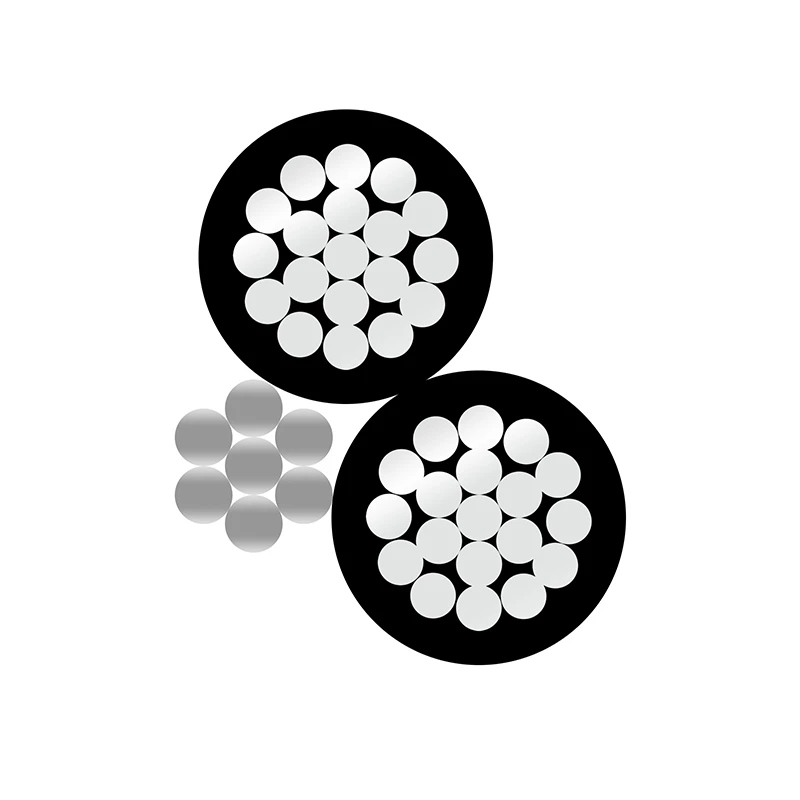

The Triplex Service Drop Cable manufactured by Zhongdong Cable is designed for low-voltage overhead service connections between utility distribution lines and residential, commercial, and small industrial electrical installations.
The cable consists of three insulated aluminium conductors twisted together, typically including two phase conductors and one neutral conductor. The compact aerial structure provides a reliable and economical solution for single-phase overhead power supply systems while reducing installation complexity compared with traditional open conductors.
With weather-resistant insulation and lightweight aluminium conductors, Triplex Service Drop Cable provides stable performance for outdoor installations exposed to sunlight, moisture, and changing environmental conditions.
|
Type |
Triplex Service Drop Cable |
Voltage Rating |
0.6/1 kV |
|
Cores |
3 Core (2 Phase + 1 Neutral) |
Conductor |
Aluminium, Class 2 stranded conductor (IEC 60228) |
|
Insulation |
XLPE or PE insulation |
Neutral Conductor |
Bare or insulated aluminium neutral (according to design requirements) |
|
Installation |
Overhead service entrance and low-voltage distribution systems |
Operating Temperature |
Up to 90°C (XLPE insulation) |
|
Reference Standards |
ASTM B230 / ASTM B231 / ICEA S-76-474 / NFC 33-209 (according to design) |
|
|

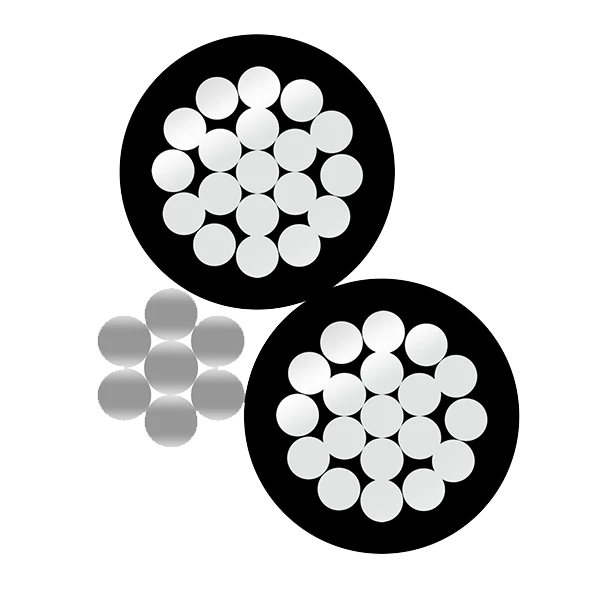

Phase Conductor:
Stranded aluminium conductor providing efficient electrical conductivity and lightweight performance.
Neutral Conductor:
Aluminium neutral conductor designed to carry return current and maintain system balance.
Insulation:
XLPE or PE insulation provides electrical protection, moisture resistance, and reliable outdoor performance.
Cable Assembly:
Two insulated conductors are twisted together to form a compact and flexible overhead service cable.

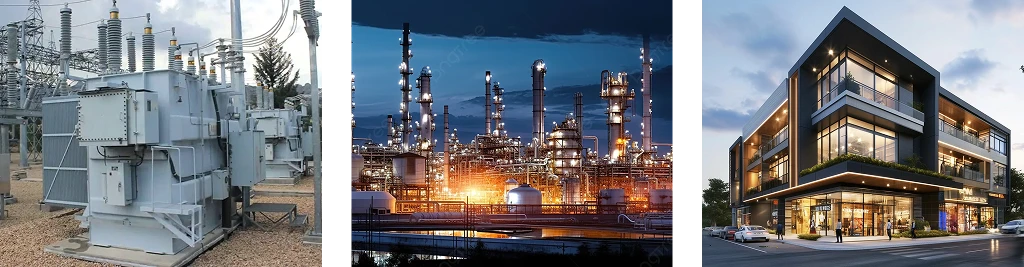

The Triplex Service Drop Cable is mainly used for low-voltage overhead service connections where reliable power supply and simple installation are required.
Typical applications include:
Residential electrical service connections
Single-phase utility supply systems
Rural electrification projects
Low-voltage overhead distribution networks
Commercial building service entrances
Street lighting power connections
Utility meter connections
Temporary or construction power supply
ANSI/ICEA S-76-474 Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts
ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors
ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors
ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B 549 For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Haiotis |
6 |
1 |
1.14 |
6 |
7 |
1.56 |
12.6 |
148 |
|
Pike |
6 |
7 |
0.76 |
6 |
7 |
1.56 |
12.1 |
139 |
|
Patella |
6 |
7 |
1.14 |
6 |
7 |
1.56 |
13.2 |
154 |
|
Albus |
6 |
7 |
1.52 |
6 |
7 |
1.56 |
14.3 |
170 |
|
Fusus |
4 |
1 |
1.14 |
4 |
7 |
1.96 |
15 |
221 |
|
Limpet |
4 |
7 |
1.14 |
6 |
7 |
1.56 |
14.9 |
208 |
|
Oyster |
4 |
7 |
1.14 |
4 |
7 |
1.96 |
15.8 |
230 |
|
Argo |
4 |
7 |
1.52 |
4 |
7 |
1.96 |
16.9 |
249 |
|
Clam |
2 |
7 |
1.14 |
2 |
7 |
2.47 |
19 |
347 |
|
Thia |
2 |
7 |
1.52 |
2 |
7 |
2.47 |
20.1 |
370 |
|
Mussel |
2 |
7 |
1.14 |
4 |
7 |
1.96 |
17.9 |
312 |
|
Pyrula |
1 |
7 |
1.52 |
1 |
7 |
2.78 |
22.4 |
465 |
|
Hyas |
1 |
19 |
1.52 |
1 |
7 |
2.78 |
22.2 |
450 |
|
Snail |
1/0 |
7 |
1.52 |
2 |
7 |
2.47 |
23.2 |
517 |
|
Murex |
1/0 |
7 |
1.52 |
1/0 |
7 |
3.12 |
24.6 |
572 |
|
Purpura |
1/0 |
19 |
1.52 |
1/0 |
7 |
3.12 |
24.4 |
554 |
|
Nassa |
2/0 |
7 |
1.52 |
2/0 |
7 |
3.5 |
27.1 |
706 |
|
Trophon |
2/0 |
19 |
1.52 |
2/0 |
7 |
3.5 |
26.8 |
684 |
|
Quahog |
3/0 |
7 |
2.03 |
3/0 |
7 |
3.93 |
31.3 |
920 |
|
Ione |
3/0 |
19 |
2.03 |
3/0 |
7 |
3.93 |
31 |
892 |
|
Melita |
3/0 |
19 |
1.52 |
3/0 |
19 |
2.39 |
29.7 |
845 |
|
Coquina |
4/0 |
7 |
1.52 |
4/0 |
7 |
4.42 |
33 |
1082 |
|
Tusk |
4/0 |
7 |
2.03 |
4/0 |
7 |
4.42 |
34.5 |
1134 |
|
Apus |
4/0 |
19 |
2.03 |
4/0 |
7 |
4.42 |
34.1 |
1098 |
|
Portunus |
4/0 |
19 |
2.03 |
4/0 |
19 |
2.68 |
34.2 |
1098 |
|
Chiton |
266.8 |
19 |
2.03 |
266.8 |
19 |
3.01 |
38.4 |
1379 |
|
Alverno |
300 |
37 |
2.03 |
4/0 |
19 |
2.68 |
37.8 |
1386 |
|
Nannynose |
336.4 |
19 |
2.03 |
336.4 |
19 |
3.38 |
42.4 |
1707 |
|
|
|
|
|
|
|
|
|
|
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Minex |
6 |
1 |
1.14 |
30.58 |
7 |
1.68 |
12.8 |
154 |
|
Hippa |
6 |
7 |
1.14 |
30.58 |
7 |
1.68 |
13.4 |
160 |
|
Artemia |
4 |
1 |
1.14 |
30.58 |
7 |
1.68 |
14.4 |
205 |
|
Crad |
4 |
7 |
1.14 |
30.58 |
7 |
1.68 |
15.2 |
214 |
|
Prawn |
4 |
1 |
1.14 |
48.69 |
7 |
2.12 |
15.3 |
231 |
|
Barnacle |
4 |
7 |
1.14 |
48.69 |
7 |
2.12 |
16.1 |
239 |
|
Solaster |
2 |
7 |
1.14 |
48.69 |
7 |
2.12 |
18.2 |
322 |
|
Pagurus |
2 |
7 |
1.52 |
48.69 |
7 |
2.12 |
19.3 |
345 |
|
Shrimp |
2 |
7 |
1.14 |
77.47 |
7 |
2.67 |
19.4 |
362 |
|
Lobster |
2 |
7 |
1.52 |
77.47 |
7 |
2.67 |
20.5 |
385 |
|
Sanderab |
1/0 |
7 |
1.52 |
77.47 |
7 |
2.67 |
23.6 |
532 |
|
Echinus |
1/0 |
19 |
1.52 |
77.47 |
7 |
2.67 |
23.4 |
514 |
|
Gammarus |
1/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
25.1 |
597 |
|
Leda |
1/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
24.9 |
579 |
|
Crayfish |
2/0 |
7 |
1.52 |
97.65 |
7 |
3 |
26 |
655 |
|
Sipho |
2/0 |
19 |
1.52 |
97.65 |
7 |
3 |
25.7 |
633 |
|
Abalone |
2/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
26.8 |
691 |
|
Spirula |
2/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
26.5 |
669 |
|
Dungenese |
2/0 |
7 |
1.52 |
155.4 |
7 |
3.78 |
27.7 |
736 |
|
Cyclops |
2/0 |
19 |
1.52 |
155.4 |
7 |
3.78 |
27.4 |
714 |
|
Slug |
3/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
28.6 |
809 |
|
Fulgur |
3/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
28.4 |
781 |
|
Balanus |
3/0 |
19 |
2.03 |
123.3 |
7 |
3.37 |
29.8 |
828 |
|
Stonecrab |
3/0 |
7 |
1.52 |
195.7 |
7 |
4.25 |
30.5 |
904 |
|
Flustra |
3/0 |
19 |
1.52 |
195.7 |
7 |
4.25 |
30.3 |
884 |
|
Crisia |
3/0 |
19 |
2.03 |
195.7 |
7 |
4.25 |
31.7 |
931 |
|
Squid |
4/0 |
7 |
1.52 |
155.4 |
7 |
3.78 |
31.6 |
1001 |
|
Arca |
4/0 |
19 |
1.52 |
155.4 |
7 |
3.78 |
31.3 |
966 |
|
Bugula |
4/0 |
19 |
2.03 |
155.4 |
7 |
3.78 |
32.7 |
1018 |
|
Kingcrab |
4/0 |
7 |
1.52 |
246.9 |
7 |
4.77 |
33.8 |
1131 |
|
Lepas |
4/0 |
19 |
1.52 |
246.9 |
7 |
4.77 |
33.4 |
1096 |
|
Cassis |
4/0 |
19 |
2.03 |
246.9 |
7 |
4.77 |
34.9 |
1147 |
|
Cyphoma |
4/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
30.8 |
957 |
|
Mitre |
4/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
30.4 |
921 |
|
Argonaut |
336.4 |
19 |
2.03 |
246.9 |
7 |
4.77 |
40.5 |
1579 |
|
Nautilis |
336.4 |
19 |
2.03 |
394.5 |
19 |
3.66 |
43.4 |
1787 |
|
|
|
|
|
|
|
|
|
|
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Paludina |
6 |
1 |
1.14 |
6 |
6/1 |
1.68 |
12.8 |
165 |
|
Voluta |
6 |
7 |
1.14 |
6 |
6/1 |
1.68 |
13.4 |
171 |
|
Bolma |
6 |
7 |
1.52 |
6 |
6/1 |
1.68 |
14.5 |
188 |
|
Scallop |
4 |
1 |
1.14 |
6 |
6/1 |
1.68 |
14.4 |
217 |
|
Strombus |
4 |
7 |
1.14 |
6 |
6/1 |
1.68 |
15.1 |
225 |
|
Carnea |
4 |
7 |
1.52 |
6 |
6/1 |
1.68 |
16.2 |
244 |
|
Whelk |
4 |
1 |
1.14 |
4 |
6/1 |
2.12 |
15.3 |
249 |
|
Periwinkle |
4 |
7 |
1.14 |
4 |
6/1 |
2.12 |
16.1 |
257 |
|
Calma |
4 |
7 |
1.52 |
4 |
6/1 |
2.12 |
17.2 |
277 |
|
Cockle |
2 |
7 |
1.14 |
4 |
6/1 |
2.12 |
18.2 |
340 |
|
Gebia |
2 |
7 |
1.52 |
4 |
6/1 |
2.12 |
19.3 |
363 |
|
Conch |
2 |
7 |
1.14 |
2 |
6/1 |
2.67 |
19.4 |
391 |
|
Uca |
2 |
7 |
1.52 |
2 |
6/1 |
2.67 |
20.5 |
414 |
|
Vermeths |
1 |
7 |
1.52 |
1 |
6/1 |
3 |
22.9 |
520 |
|
Atya |
1 |
19 |
1.52 |
1 |
6/1 |
3 |
22.6 |
506 |
|
Janthina |
1/0 |
7 |
1.52 |
2 |
6/1 |
2.67 |
23.6 |
561 |
|
Ranella |
1/0 |
19 |
1.52 |
2 |
6/1 |
2.67 |
23.4 |
543 |
|
Neritina |
1/0 |
7 |
1.52 |
1/0 |
6/1 |
3.37 |
25.1 |
642 |
|
Cenia |
1/0 |
19 |
1.52 |
1/0 |
6/1 |
3.37 |
24.9 |
624 |
|
Cavolinia |
2/0 |
7 |
1.52 |
1 |
6/1 |
3 |
26 |
691 |
|
Clio |
2/0 |
19 |
1.52 |
1 |
6/1 |
3 |
25.7 |
669 |
|
Runcina |
2/0 |
7 |
1.52 |
2/0 |
6/1 |
3.78 |
27.7 |
794 |
|
Triton |
2/0 |
19 |
1.52 |
2/0 |
6/1 |
3.78 |
27.4 |
772 |
|
Sanddollar |
3/0 |
7 |
1.52 |
1/0 |
6/1 |
3.37 |
28.6 |
854 |
|
Aega |
3/0 |
19 |
1.52 |
1/0 |
6/1 |
3.37 |
28.4 |
827 |
|
Pisa |
3/0 |
19 |
2.03 |
1/0 |
6/1 |
3.37 |
29.8 |
874 |
|
Cherrystone |
3/0 |
7 |
1.52 |
3/0 |
6/1 |
4.25 |
30.5 |
983 |
|
Mursia |
3/0 |
19 |
1.52 |
3/0 |
6/1 |
4.25 |
30.3 |
956 |
|
Mysis |
3/0 |
19 |
2.03 |
3/0 |
6/1 |
4.25 |
31.7 |
1003 |
|
Cuttlefish |
4/0 |
7 |
1.52 |
2/0 |
6/1 |
3.78 |
31.7 |
1059 |
|
Cerapus |
4/0 |
19 |
1.52 |
2/0 |
6/1 |
3.78 |
31.3 |
1024 |
|
Nepatus |
4/0 |
19 |
2.03 |
2/0 |
6/1 |
3.78 |
32.7 |
1075 |
|
Razor |
4/0 |
7 |
1.52 |
4/0 |
6/1 |
4.77 |
33.8 |
1222 |
|
Zuzara |
4/0 |
19 |
1.52 |
4/0 |
6/1 |
4.77 |
33.4 |
1187 |
|
Alima |
4/0 |
19 |
2.03 |
4/0 |
6/1 |
4.77 |
34.9 |
1238 |
|
Callista |
266.8 |
19 |
2.03 |
3/0 |
6/1 |
4.25 |
36.7 |
1350 |
|
Dosinia |
266.8 |
19 |
2.03 |
266.8 |
18/1 |
3.09 |
38.7 |
1438 |
|
Cowry |
336.4 |
19 |
2.03 |
4/0 |
6 /1 |
4.77 |
40.5 |
1670 |
|
Limpet |
336.4 |
19 |
2.03 |
336.4 |
18 /1 |
3.47 |
42.7 |
1782 |
Duplex Service Drop Cable contains two conductors, normally one phase and one neutral, while Triplex Service Drop Cable contains two phase conductors and one neutral conductor for single-phase three-wire systems.
It is mainly used for connecting utility overhead lines to residential buildings, commercial facilities, and other low-voltage customers.
Yes. The cable is designed for aerial installation and uses weather-resistant insulation suitable for long-term outdoor exposure.
Aluminium offers lower weight and cost while providing sufficient electrical performance for overhead service applications.
XLPE is commonly selected for higher temperature capability and improved ageing resistance, while PE can be used for specific application requirements.
XLPE insulated Triplex Service Drop Cable is generally rated for continuous conductor operation up to 90°C.
Common accessories include service clamps, connectors, suspension fittings, and pole mounting hardware selected according to installation conditions.
Direct Factory Since 2006
67,000㎡ Manufacturing Base
0.6kV–110kV Cable Solutions
Reply Within 24 Hours
Fumigated Wooden Drums: Fully heat-treated and officially stamped in strict compliance with ISPM 15 international phytosanitary regulations. This guarantees seamless, delay-free customs clearance at any global port.
Steel-Wooden Hybrid Drums (Iron-Wooden Axle): Engineered with reinforced steel structural frames and durable wood flanging. This hybrid design prevents drum collapse under heavy loads and provides ultimate mechanical protection during rough ocean freight handling.
100% Customized Packaging: We cooperate closely with project engineers to provide tailored packing options—including custom cable lengths per drum, protective lagging, water-proof plastic wrapping, or specific color coding—tailored to your exact on-site installation layout.
Duplex Service Drop Cable
Quadruplex Service Drop
Zhongdong Cable combines premium raw materials, large-scale manufacturing capabilities, and strict quality control systems to deliver cable products that fully match your technical requirements and brand identity.
