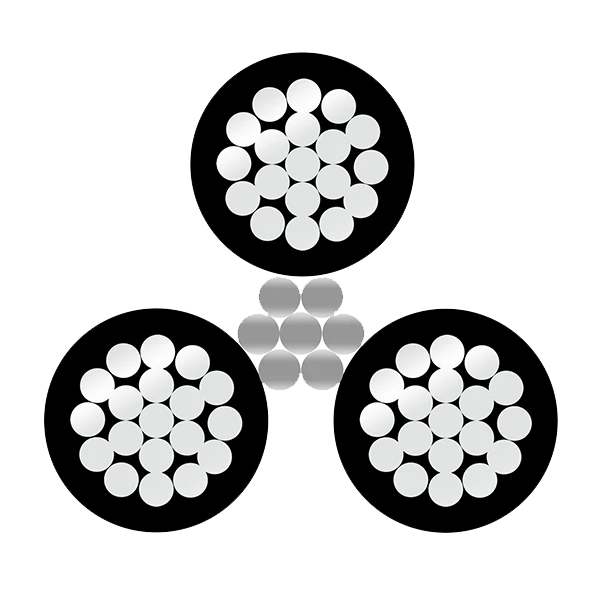

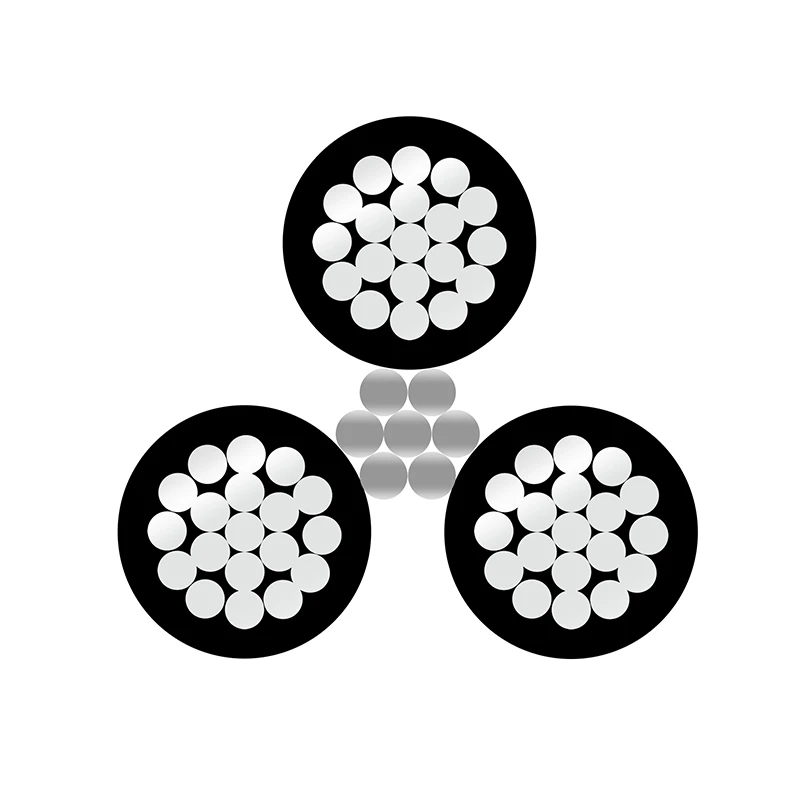

The Quadruplex Service Drop Cable manufactured by Zhongdong Cable is designed for low-voltage overhead service connections requiring higher conductor capacity and improved power supply reliability. It is commonly used between utility distribution lines and residential, commercial, and small industrial electrical service entrances.
The cable consists of four insulated aluminium conductors twisted together, typically including three phase conductors and one neutral conductor. The compact twisted structure provides a practical solution for three-phase low-voltage overhead connections while reducing installation complexity and improving safety compared with traditional open conductors.
With durable insulation and lightweight aluminium conductors, Quadruplex Service Drop Cable offers reliable performance in outdoor environments exposed to UV radiation, moisture, and changing weather conditions.
|
Type |
Quadruplex Service Drop Cable |
Voltage Rating |
0.6/1 kV |
|
Cores |
4 Core (3 Phase + 1 Neutral) |
Conductor |
Aluminium, Class 2 stranded conductor (IEC 60228) |
|
Insulation |
XLPE or PE insulation |
Neutral Conductor |
Bare or insulated aluminium neutral (according to design requirements) |
|
Installation |
Overhead service entrance and low-voltage distribution systems |
Operating Temperature |
Up to 90°C (XLPE insulation) |
|
Reference Standards |
ASTM B230 / ASTM B231 / ICEA S-76-474 / NFC 33-209 (according to design) |
|
|
Phase Conductor:
Stranded aluminium conductor providing efficient electrical conductivity and lightweight performance.
Neutral Conductor:
Aluminium neutral conductor designed to carry return current and maintain system balance.
Insulation:
XLPE or PE insulation provides electrical protection, moisture resistance, and reliable outdoor performance.
Cable Assembly:
Two insulated conductors are twisted together to form a compact and flexible overhead service cable.
The Quadruplex Service Drop Cable is designed for low-voltage overhead service applications where three-phase power supply is required.
Typical applications include:
Three-phase residential service connections
Commercial building power supply
Small industrial facility connections
Rural electrification networks
Low-voltage overhead distribution extensions
Agricultural power supply systems
Utility service entrance connections
Temporary construction power supply
ANSI/ICEA S-76-474 Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts
ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors
ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors
ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B 549 For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Quarter |
6 |
1 |
1.14 |
6 |
7 |
1.56 |
14.4 |
203 |
|
Clydesdate |
4 |
1 |
1.14 |
4 |
7 |
1.96 |
17.1 |
302 |
|
Pinto |
4 |
7 |
1.14 |
4 |
7 |
1.96 |
18.1 |
315 |
|
Mustang |
2 |
7 |
1.14 |
2 |
7 |
2.47 |
21.7 |
474 |
|
Shire |
1 |
19 |
1.52 |
1 |
7 |
2.78 |
25.4 |
616 |
|
Libyan |
1/0 |
7 |
1.52 |
1/0 |
7 |
3.12 |
28.2 |
784 |
|
Criollo |
1/0 |
19 |
1.52 |
1/0 |
7 |
3.12 |
27.9 |
757 |
|
Orloff |
2/0 |
7 |
1.52 |
2/0 |
7 |
3.5 |
30.9 |
965 |
|
Percheron |
2/0 |
19 |
1.52 |
2/0 |
7 |
3.5 |
30.6 |
931 |
|
Mongolian |
3/0 |
7 |
1.52 |
3/0 |
7 |
3.93 |
34.1 |
1190 |
|
Hanoverian |
3/0 |
19 |
1.52 |
3/0 |
19 |
2.39 |
33.8 |
1148 |
|
Singlefoot |
4/0 |
7 |
1.52 |
4/0 |
7 |
4.42 |
37.6 |
1474 |
|
Oldenburg |
4/0 |
19 |
1.52 |
4/0 |
19 |
2.68 |
37.2 |
1421 |
|
Lippizaner |
336.4 |
19 |
2.03 |
336.4 |
19 |
3.38 |
48.3 |
2322 |
|
|
|
|
|
|
|
|
|
|
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Bay |
6 |
1 |
1.14 |
30.58 |
7 |
1.68 |
14.7 |
209 |
|
French-Coach |
6 |
7 |
1.14 |
30.58 |
7 |
1.68 |
15.4 |
218 |
|
German-Coach |
4 |
1 |
1.14 |
48.69 |
7 |
2.12 |
17.4 |
312 |
|
Arabian |
4 |
7 |
1.14 |
48.69 |
7 |
2.12 |
18.4 |
324 |
|
Belgian |
2 |
7 |
1.14 |
77.47 |
7 |
2.67 |
22 |
489 |
|
Viatka |
1/0 |
7 |
1.52 |
77.47 |
7 |
2.67 |
27.4 |
743 |
|
Thoroughbred |
2/0 |
19 |
1.52 |
155.4 |
7 |
3.78 |
31.1 |
962 |
|
Celtic |
2/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
30.7 |
950 |
|
Norman |
2/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
30.3 |
917 |
|
Donkey |
3/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
33 |
1126 |
|
Burro |
3/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
32.7 |
1085 |
|
Dobbin |
3/0 |
7 |
1.52 |
195.7 |
7 |
4.25 |
34.6 |
1229 |
|
Trotter |
3/0 |
19 |
1.52 |
195.7 |
7 |
4.25 |
34.3 |
1188 |
|
Roan |
4/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
35.7 |
1348 |
|
Gotland |
4/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
35.2 |
1295 |
|
Bali |
4/0 |
7 |
1.52 |
155.4 |
7 |
3.78 |
36.5 |
1393 |
|
Skyros |
4/0 |
19 |
1.52 |
155.4 |
7 |
3.78 |
36 |
1340 |
|
Pony |
4/0 |
7 |
1.52 |
246.9 |
7 |
4.77 |
38.3 |
1522 |
|
Walking |
4/0 |
19 |
1.52 |
246.9 |
7 |
4.77 |
37.8 |
1470 |
|
Exmoor |
336.4 |
19 |
2.03 |
246.9 |
19 |
2.89 |
46.8 |
2193 |
|
Breton |
336.4 |
19 |
2.03 |
394.5 |
19 |
3.66 |
49.1 |
2402 |
|
|
|
|
|
|
|
|
|
|
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Morochuca |
6 |
1 |
1.14 |
6 |
|
1.68 |
14.7 |
221 |
|
Chola |
6 |
7 |
1.14 |
6 |
6/1 |
1.68 |
15.4 |
229 |
|
Morgan |
4 |
1 |
1.14 |
4 |
6/1 |
2.12 |
17.4 |
330 |
|
Hackney |
4 |
7 |
1.14 |
4 |
6/1 |
2.12 |
18.4 |
342 |
|
Palomino |
2 |
7 |
1.14 |
2 |
6/1 |
2.67 |
22 |
518 |
|
Albino |
1 |
19 |
1.52 |
1 |
6/1 |
3 |
25.8 |
672 |
|
Standardbred |
1/0 |
7 |
1.52 |
1/0 |
6/1 |
3.37 |
28.6 |
854 |
|
Costena |
1/0 |
19 |
1.52 |
1/0 |
6/1 |
3.37 |
28.3 |
827 |
|
Chicoteagues |
2/0 |
7 |
1.52 |
2/0 |
6/1 |
3.78 |
31.5 |
1053 |
|
Grullo |
2/0 |
19 |
1.52 |
2/0 |
6/1 |
3.78 |
31.1 |
1022 |
|
Mare |
3/0 |
7 |
1.52 |
3/0 |
6/1 |
4.25 |
34.6 |
1301 |
|
Suffolk |
3/0 |
19 |
1.52 |
3/0 |
6/1 |
4.25 |
34.3 |
1260 |
|
Stallion |
4/0 |
7 |
1.52 |
4/0 |
6/1 |
4.77 |
38.3 |
1614 |
|
Appaloosa |
4/0 |
19 |
1.52 |
4/0 |
6/1 |
4.77 |
37.8 |
1561 |
|
Gelding |
336.4 |
19 |
2.03 |
4/0 |
6/1 |
4.77 |
46.7 |
2285 |
|
Bronco |
336.4 |
19 |
2.03 |
336.4 |
18/1 |
3.47 |
48.6 |
2396 |
Quadruplex Service Drop Cable is mainly used for three-phase low-voltage overhead service connections between utility poles and customer premises, including commercial buildings, farms, and small industrial facilities.
It consists of four insulated aluminium conductors, normally configured as three phase conductors and one neutral conductor for three-phase power supply systems.
Yes. The cable is designed for aerial installation and can withstand outdoor conditions such as sunlight, rain, humidity, and temperature variations when installed according to requirements.
XLPE insulation is commonly used for its higher temperature rating and better ageing resistance. PE insulation can also be selected for specific project requirements.
For XLPE insulated Quadruplex Service Drop Cable, the maximum continuous conductor operating temperature is typically 90°C.
The cable is installed overhead using suitable service clamps, suspension fittings, and connectors. Installation accessories should be selected according to cable size and local requirements.
Yes. The insulated twisted structure provides improved safety by reducing the risk of accidental contact and short circuits compared with traditional bare conductors.
