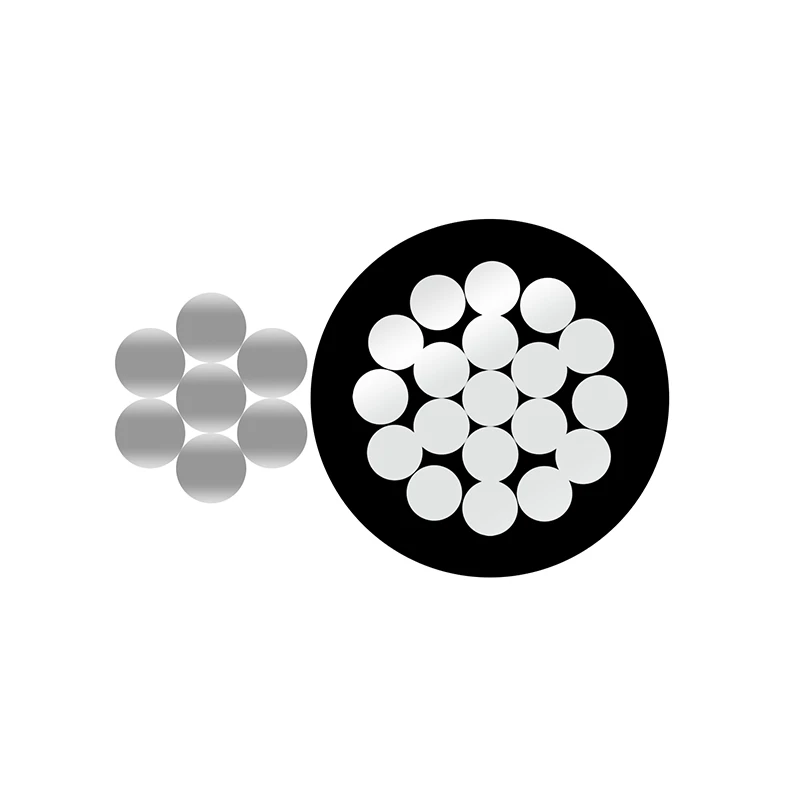

The Duplex Service Drop Cable manufactured by Zhongdong Cable is designed for overhead low-voltage service connections between utility distribution lines and residential, commercial, or small industrial electrical installations.
The cable consists of two insulated aluminium conductors twisted together, typically including one phase conductor and one neutral conductor. The compact aerial design provides a reliable and economical solution for overhead power supply applications while reducing installation complexity compared with traditional open wire systems.
With durable insulation and weather-resistant construction, Duplex Service Drop Cable is suitable for outdoor installations exposed to sunlight, moisture, and changing weather conditions.
|
Type |
Duplex Service Drop Cable |
Voltage Rating |
0.6/1 kV |
|
Cores |
2 Core (Phase + Neutral) |
Conductor |
Aluminium, Class 2 stranded conductor (IEC 60228) |
|
Insulation |
XLPE or PE insulation |
Neutral Conductor |
Bare or insulated aluminium neutral (according to design requirements) |
|
Installation |
Overhead service entrance and low-voltage distribution systems |
Operating Temperature |
Up to 90°C (XLPE insulation) |
|
Reference Standards |
ASTM B230 / ASTM B231 / ICEA S-76-474 / NFC 33-209 (according to design) |
|
|

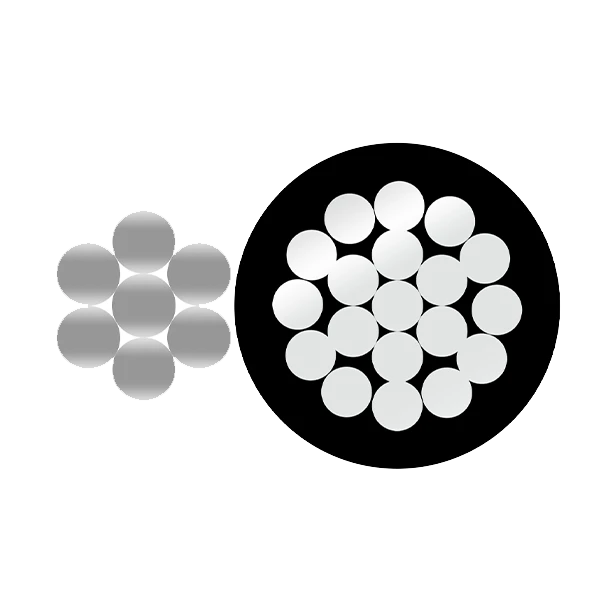

Phase Conductor:
Stranded aluminium conductor providing efficient electrical conductivity and lightweight performance.
Neutral Conductor:
Aluminium neutral conductor designed to carry return current and maintain system balance.
Insulation:
XLPE or PE insulation provides electrical protection, moisture resistance, and reliable outdoor performance.
Cable Assembly:
Two insulated conductors are twisted together to form a compact and flexible overhead service cable.
The Duplex Service Drop Cable is mainly used for low-voltage overhead power supply connections.
Typical applications include:
Residential service connections
Rural electrification systems
Low-voltage overhead distribution networks
Temporary power supply installations
Street lighting connections
Small commercial buildings
Utility meter connections
ANSI/ICEA S-76-474 Neutral-Supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600 Volts
ASTM B 231 Class AA, A, or B Stranded Aluminum 1350 (Excluding Unilay Compressed)
ASTM B 400 Compact-Round Stranded Aluminum 1350 Conductors
ASTM B 399 Class AA, or A Stranded Aluminum-Alloy 6201 T-81 Conductors
ASTM B 232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
ASTM B 549 For Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR/AW)
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Pekingese |
6 |
1 |
1.14 |
6 |
7 |
1.56 |
11.1 |
92 |
|
Collie |
6 |
7 |
1.14 |
6 |
7 |
1.56 |
11.5 |
94 |
|
Cocker |
6 |
7 |
1.52 |
6 |
7 |
1.56 |
12.2 |
100 |
|
Dachshund |
4 |
1 |
1.14 |
4 |
7 |
1.96 |
13.4 |
140 |
|
Spaniel |
4 |
7 |
1.14 |
4 |
7 |
1.96 |
13.9 |
143 |
|
Cairn |
4 |
7 |
1.52 |
4 |
7 |
1.96 |
14.6 |
150 |
|
Doberman |
2 |
7 |
1.14 |
2 |
7 |
2.47 |
16.9 |
220 |
|
Airedale |
1 |
19 |
1.52 |
1 |
7 |
2.78 |
19.6 |
280 |
|
Basset |
1/0 |
7 |
1.52 |
1/0 |
7 |
3.12 |
21.8 |
355 |
|
Malemute |
1/0 |
19 |
1.52 |
1/0 |
7 |
3.12 |
21.6 |
350 |
|
|
|
|
|
|
|
|
|
|
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Chihuahua |
6 |
1 |
1.14 |
30.58 |
7 |
1.68 |
11.4 |
98 |
|
Vizsla |
6 |
7 |
1.14 |
30.58 |
7 |
1.68 |
11.8 |
100 |
|
Harrier |
4 |
1 |
1.14 |
48.69 |
7 |
2.12 |
13.8 |
149 |
|
Whippet |
4 |
7 |
1.14 |
48.69 |
7 |
2.12 |
14.4 |
154 |
|
Schnauzer |
2 |
7 |
1.14 |
77.47 |
7 |
2.67 |
17.5 |
235 |
|
Afghan |
1/0 |
7 |
1.52 |
123.3 |
7 |
3.37 |
22.5 |
378 |
|
Heeler |
1/0 |
19 |
1.52 |
123.3 |
7 |
3.37 |
22.3 |
375 |
|
|
|
|
|
|
|
|
|
|
|
Code Word |
Phase Conductor |
Bare Neutral Messenger |
Approx. Diameter of Cable (mm) |
Approx. Weight (kg/km) |
||||
|
Size |
No. of wires |
Nominal Insulation Thickness (mm) |
Size |
No. of wires |
Diameter of Wires (mm) |
|||
|
AWG or Kcmil |
No. |
AWG or Kcmil |
No. |
|||||
|
Setter |
6 |
1 |
1.14 |
6 |
6 /1 |
1.68 |
11.4 |
109 |
|
Shepherd |
6 |
7 |
1.14 |
6 |
6 /1 |
1.68 |
11.8 |
112 |
|
Retriever |
6 |
7 |
1.52 |
6 |
6 /1 |
1.68 |
12.6 |
119 |
|
Eskimo |
4 |
1 |
1.14 |
4 |
6 /1 |
2.12 |
13.8 |
166 |
|
Terrier |
4 |
7 |
1.14 |
4 |
6 /1 |
2.12 |
14.4 |
170 |
|
Yorkshire |
4 |
7 |
1.52 |
4 |
6 /1 |
2.12 |
15.1 |
180 |
|
Chow |
2 |
7 |
1.14 |
2 |
6 /1 |
2.67 |
17.5 |
262 |
|
Labrador |
1 |
19 |
1.52 |
1 |
6 /1 |
3 |
20.2 |
339 |
|
Bloodhound |
1/0 |
7 |
1.52 |
1/0 |
6 /1 |
3.37 |
22.5 |
425 |
|
Bull |
1/0 |
19 |
1.52 |
1/0 |
6 /1 |
3.37 |
22.3 |
422 |
It is mainly used for connecting low-voltage overhead distribution lines to residential or commercial electrical service entrances.
Duplex cable contains two conductors, usually one phase and one neutral, while Triplex cable contains three conductors, typically two phase conductors and one neutral.
Yes. The cable is designed for outdoor aerial installation and uses weather-resistant insulation materials suitable for long-term exposure.
Aluminium offers a good balance between electrical conductivity, weight reduction, and cost efficiency, making it suitable for overhead applications.
XLPE is commonly used for higher temperature and better outdoor performance, while PE insulation can be selected for specific project requirements.
For XLPE insulated designs, the conductor can operate continuously at up to 90°C under normal conditions.
Common accessories include service clamps, connectors, suspension fittings, and pole attachment hardware selected according to installation requirements.
