H07RN-F, manufactured by Zhongdong Cable, is developed for applications where a flexible cable needs to withstand more than everyday movement. The reinforced rubber construction provides good resistance to mechanical impact, abrasion, moisture, and harsh operating conditions, while the flexible copper conductor allows convenient installation and handling. Rated at 450/750V, this cable is commonly selected for professional tools, mobile equipment, and power supply systems used in workshops, construction sites, and outdoor environments.
|
Type |
Heavy Duty Flexible Rubber Cable |
Rated Voltage |
450/750 V |
|
Cores |
1 Core to 5 Core |
Conductor |
Class 5 Flexible Bare Copper (IEC 60228) |
|
Insulation |
EPR Rubber |
Sheath |
PCP Rubber (EM2) |
|
Conductor Sizes |
1.0 mm²-400 mm² |
Standards |
EN 50525-2-21 / IEC 60228 |
|
Cross-Ref |
H07RN-F |
|
|

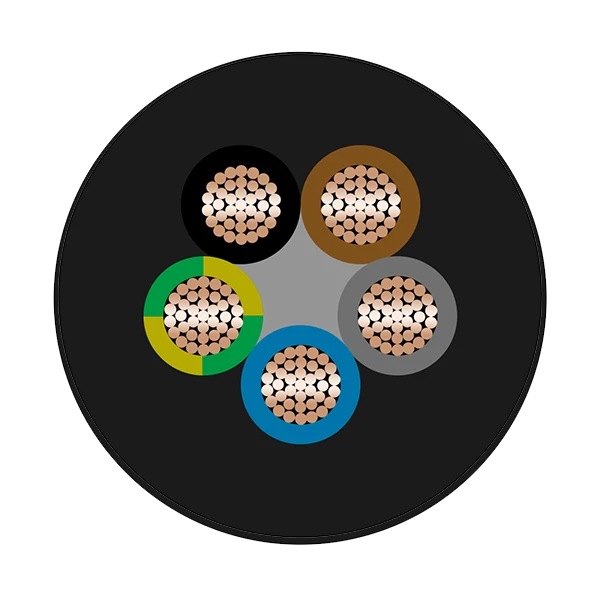

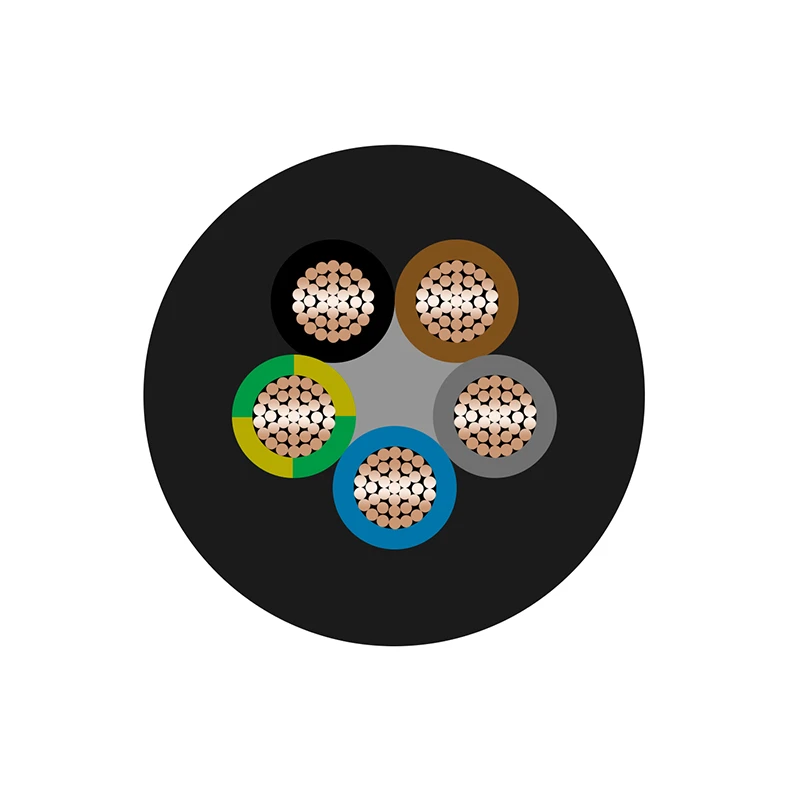

Conductor: Flexible bare copper conductor manufactured in accordance with IEC 60228 Class 5.
Insulation: EPR rubber insulation providing flexibility and reliable electrical performance under continuous operation.
Core Identification: Individually insulated cores with standard colour identification.
Outer Sheath: Durable PCP rubber (EM2) sheath designed to withstand abrasion, moisture, and mechanical stress in demanding working environments.
H07RN-F flexible rubber cable is used for power connections on equipment that is not permanently fixed in one position. The cable is suitable for applications involving frequent handling, movement, or exposure to mechanical stress. Its flexible rubber construction allows easier routing around machines and work areas while providing reliable service in demanding environments.
Typical applications include:
Construction tools and site equipment
Welding equipment and portable machinery
Mobile generators and temporary power systems
Agricultural and outdoor electrical equipment
EN: EN 50525-2-21
IEC: IEC 60228
VDE: VDE 0285-525-2-21
Yes. The flexible rubber construction allows the cable to handle regular movement and bending during operation.
Yes. The rubber sheath provides good resistance to abrasion, moisture, and mechanical stress.
It is commonly used for power tools, generators, welding equipment, and mobile machinery.
Yes. It is suitable for temporary power connections where flexible and durable cables are required.
Direct Factory Since 2006
67,000㎡ Manufacturing Base
0.6kV–110kV Cable Solutions
Reply Within 24 Hours
Fumigated Wooden Drums: Fully heat-treated and officially stamped in strict compliance with ISPM 15 international phytosanitary regulations. This guarantees seamless, delay-free customs clearance at any global port.
Steel-Wooden Hybrid Drums (Iron-Wooden Axle): Engineered with reinforced steel structural frames and durable wood flanging. This hybrid design prevents drum collapse under heavy loads and provides ultimate mechanical protection during rough ocean freight handling.
100% Customized Packaging: We cooperate closely with project engineers to provide tailored packing options—including custom cable lengths per drum, protective lagging, water-proof plastic wrapping, or specific color coding—tailored to your exact on-site installation layout.
