H05RN-F, manufactured by Zhongdong Cable, is developed for applications where flexibility is just as important as electrical performance. The rubber construction allows the cable to remain easy to handle during repeated bending and movement, making installation quicker and reducing the risk of damage caused by frequent handling. Suitable for light-duty electrical equipment, the cable provides dependable service in workshops, construction sites, maintenance work, and temporary power installations while complying with EN 50525-2-21.
|
Type |
Flexible Rubber Cable |
Rated Voltage |
300/500 V |
|
Cores |
2 Core to 5 Core |
Conductor |
Class 5 Flexible Bare Copper (IEC 60228) |
|
Insulation |
EPR Rubber |
Sheath |
PCP Rubber (EM2) |
|
Conductor Sizes |
0.75 mm²-2.5 mm² |
Standards |
EN 50525-2-21 / IEC 60228 |
|
Cross-Ref |
YZ |
|
|

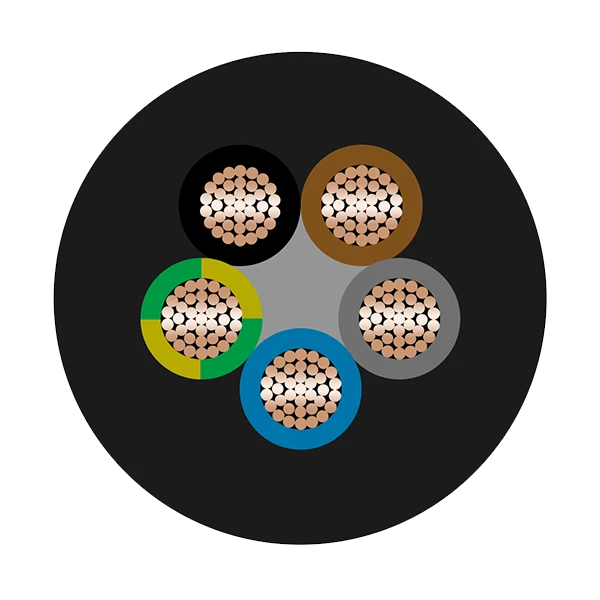

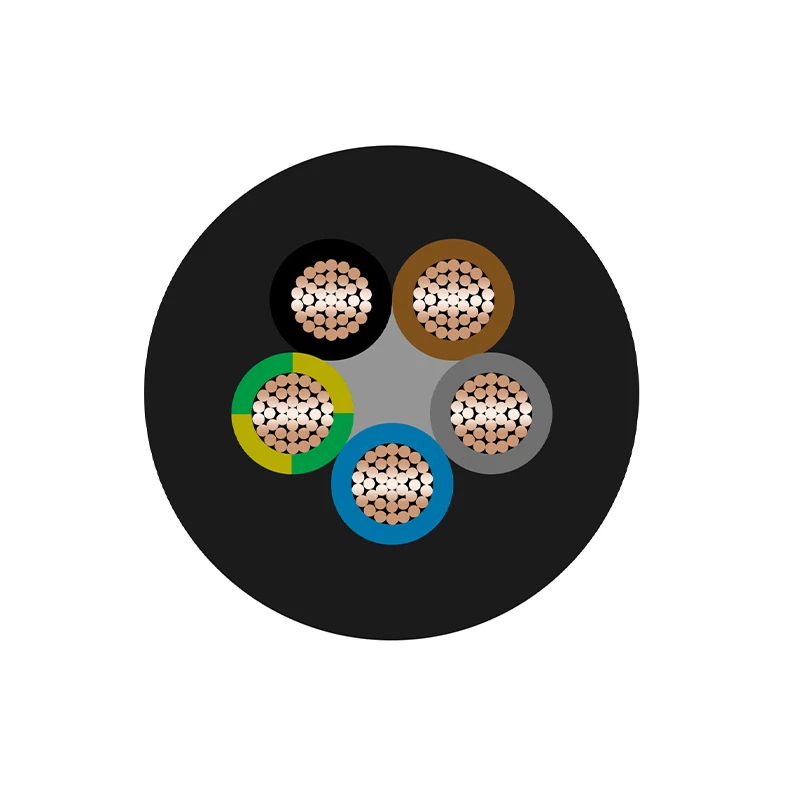

Conductor: Flexible bare copper conductor, Class 5, in accordance with IEC 60228.
Insulation: EPR rubber insulation designed for repeated bending and normal operating conditions.
Core Identification: Individually insulated cores with standard color identification.
Outer Sheath: Durable PCP rubber (EM2) sheath providing protection against mechanical wear, moisture, and outdoor exposure.
H05RN-F flexible rubber cable is designed for equipment that is connected and moved on a regular basis. Its flexible construction makes it easy to route through confined spaces and around equipment without placing excessive stress on the cable, making it a practical choice for everyday power connections.
Typical applications include:
Portable electrical appliances
Hand-held power tools
Extension leads and temporary power supplies
Portable lighting and workshop equipment
EN: EN 50525-2-21
IEC: IEC 60228
VDE: VDE 0282-4
Yes. Its flexible rubber construction is designed for applications where the cable is regularly bent or repositioned.
Yes. It is suitable for outdoor use in normal conditions, but it should not be permanently immersed in water.
H05RN-F is rated at 300/500 V, while H07RN-F is rated at 450/750 V for heavier-duty applications.
Yes. The rubber outer sheath provides good resistance to abrasion during normal use.
