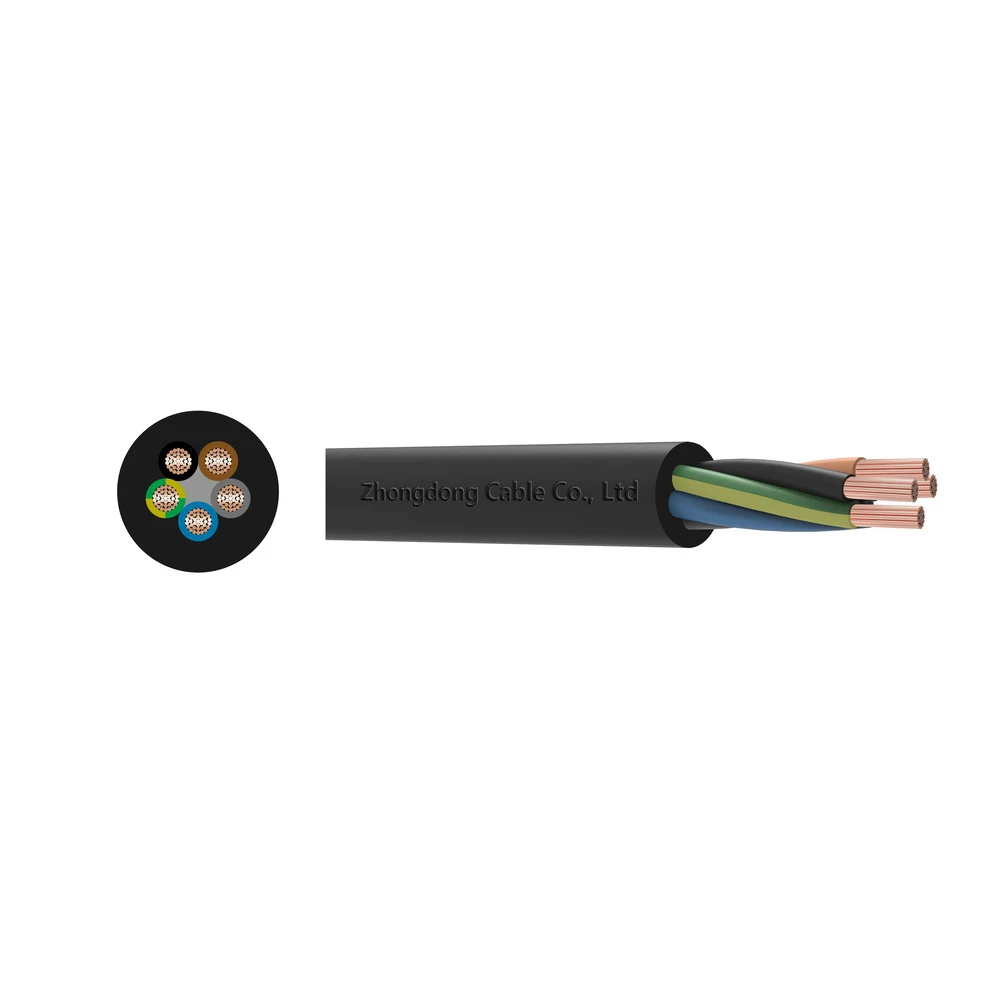

Rubber Flexible Cable solutions are heavy-duty, flexible trailing cables engineered to deliver reliable power to mobile machinery, heavy site tools, cranes, hoists, and temporary distribution grids. Built to absorb high mechanical stress, continuous pulling, and vibrations.

Key Features & Benefits

♦ Extreme Flexibility: Fabricated from Class 5 or Class 6 ultra-fine copper strands. Allows tight bending radiuses without conductor fatigue during continuous reeling.

♦ Severe Environment Protection: Heavy-duty Neoprene (CR) or CPE outer jacket delivers excellent resistance to industrial oils, chemical exposure, mechanical tearing, and abrasion.

♦ Water & Moisture Proof: High-dielectric Ethylene Propylene Rubber (EPR) insulation ensures stable electrical performance even in continuous drainage and mining sub-surfaces.

♦ Testing & Compliance: Passes stringent tension, twisting, and cold-bend factory testing to guarantee heavy industrial durability.

Technical Specifications

♦ Voltage: 300/500V (Light/Ordinary duty), 450/750V (Heavy duty / H07RN-F), 0.6/1kV (Industrial/Mining power).

♦ Cores: 1 to 5 cores for power distribution; up to 24 cores for crane and material handling control.

♦ Size Range: 1.0 mm² to 400 mm².

♦ Materials:

o Conductor: Ultra-flexible bare or tinned copper (Class 5 or Class 6).

o Insulation: High-dielectric Ethylene Propylene Rubber (EPR).

o Outer Jacket: Tough Neoprene (CR) or Chlorinated Polyethylene (CPE) sleeve.

♦ Standards: IEC 60245, BS 7919, DIN EN 50525-2-21.
