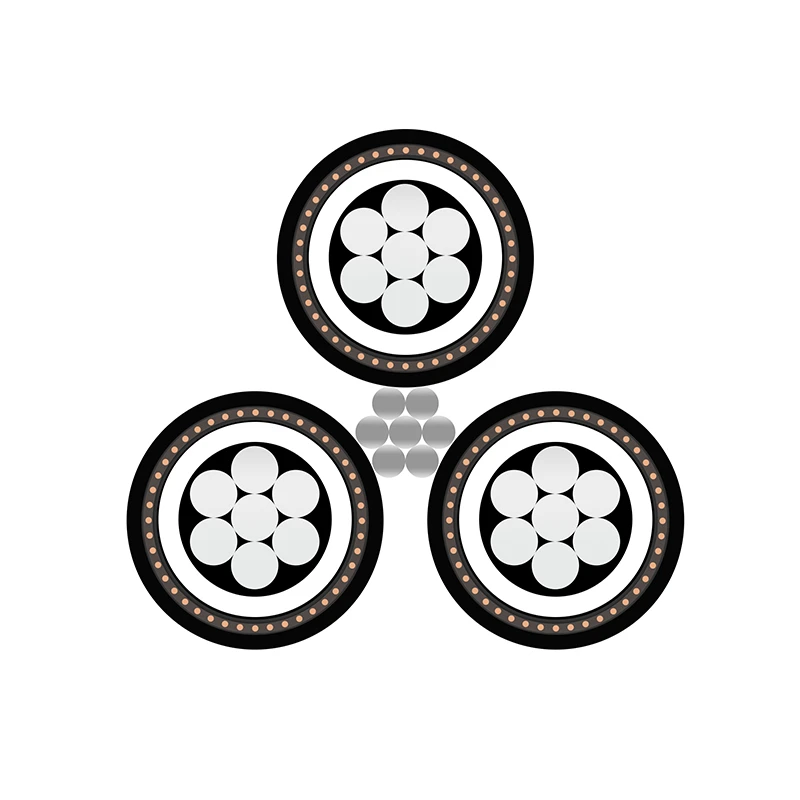

The Screened Aerial Bundled Cable (ABC) with Bare Messenger Neutral 19/33kV manufactured by Zhongdong Cable is designed for medium-voltage overhead distribution systems requiring enhanced electrical protection, mechanical strength, and reliable operation under demanding outdoor conditions.
The cable consists of three XLPE insulated aluminium phase conductors twisted around a bare aluminium alloy messenger neutral conductor. Each insulated phase conductor is equipped with a semi-conductive screen and metallic screening layer to provide improved electric field control and protection against external interference.
Compared with conventional bare overhead conductors, this screened MV ABC design reduces the risk of phase-to-phase faults, improves operational safety in areas with limited clearance, and provides a compact solution for modern overhead distribution networks.
|
Type |
Screened Medium Voltage Aerial Bundled Cable (MV ABC) |
Voltage Rating |
19/33 kV |
|
Cores |
3 Insulated Phase Conductors + Bare Messenger Neutral |
Phase Conductor |
Aluminium, Class 2 stranded conductor (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Conductor Screen |
Semi-conductive screen |
|
Metallic Screen |
Copper wire screen / copper tape screen (according to design requirements) |
Neutral Messenger |
Bare Aluminium Alloy / AAAC conductor |
|
Installation |
Overhead medium-voltage distribution systems |
Maximum Operating Temperature |
90°C |
|
Reference Standards |
IEC 60502-4 / IEC 60228 / NF C 33-209 / AS/NZS 3599 |
|
|

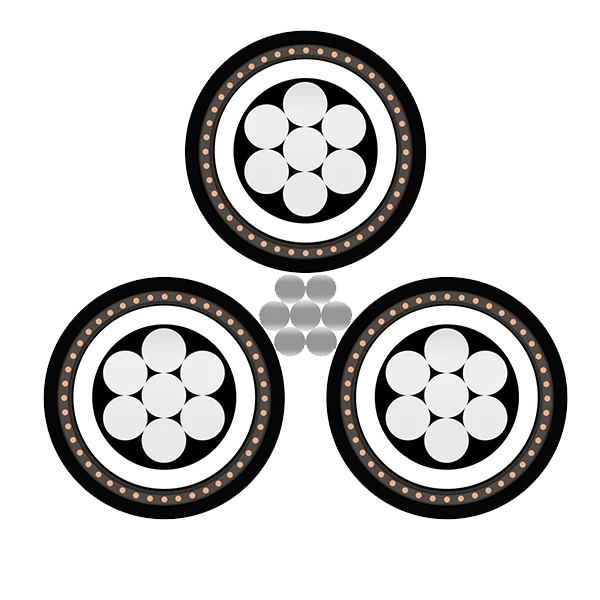

Phase Conductor: Class 2 circular compacted stranded aluminium conductor
Conductor Screen: Extruded semi-conductive layer
Insulation: XLPE (Cross-linked Polyethylene)
Insulation Screen: Extruded semi-conductive layer
Metallic Screen: Copper wire screen or copper tape screen
Separator: Semi-conductive swellable tape
Outer Sheath: HDPE (High Density Polyethylene)
Support Conductor: Bare AAAC (All Aluminium Alloy Conductor)
The Screened ABC Cable with Bare Messenger Neutral 19/33kV is suitable for medium-voltage overhead networks where electrical shielding, mechanical support, and reliable power distribution are required.
Typical applications include:
33kV overhead distribution feeder networks
Utility distribution system upgrades
Industrial parks and large power consumers
Underground-to-overhead transition sections
Renewable energy connection lines
Distribution networks in areas with high vegetation density
Coastal areas and regions exposed to severe weather conditions
Urban and suburban networks requiring reduced clearance requirements
IEC: IEC 60502-1 / IEC 60228 / IEC 60332-1
EN： EN 60228
DIN VDE: DIN VDE 0276-626
NF: NF C 33-209
GB: GB/T 12527
AS/NZS: AS/NZS 3560.1
ASTM: ASTM B230 / ASTM B231
ICEA: ICEA S-76-474
|
NUMBER OF CORES |
NOMINAL |
PHASE |
SUPPORT NO.Xmm² |
MAXIMUM |
BREAKING |
CONTINUOUS |
|
3+1 |
50/50 |
19/1.78 |
7/3.0 |
0.641/0.641 |
60 |
165 |
|
3+1 |
70/50 |
19/2.14 |
7/3.15 |
0.443/0.641 |
62 |
250 |
|
3+1 |
150/50 |
37/225 |
7/3.0 |
0.206/0.641 |
60 |
315 |
|
3+1 |
185/120 |
37/2.52 |
7/3.57 |
0.164/0.443 |
91 |
355 |
The bare messenger neutral combines electrical neutral function with mechanical support, reducing the need for separate overhead support wires.
The screened construction provides improved electrical protection and helps manage fault currents, making it suitable for demanding distribution environments.
Yes. It is commonly used as an alternative where improved safety, reduced maintenance, and limited installation space are important factors.
Typical accessories include suspension clamps, anchoring clamps, earthing accessories, pole fittings, and screened cable connectors selected according to project requirements.
With XLPE insulation and proper installation, the cable is designed for long-term outdoor operation under normal service conditions.
