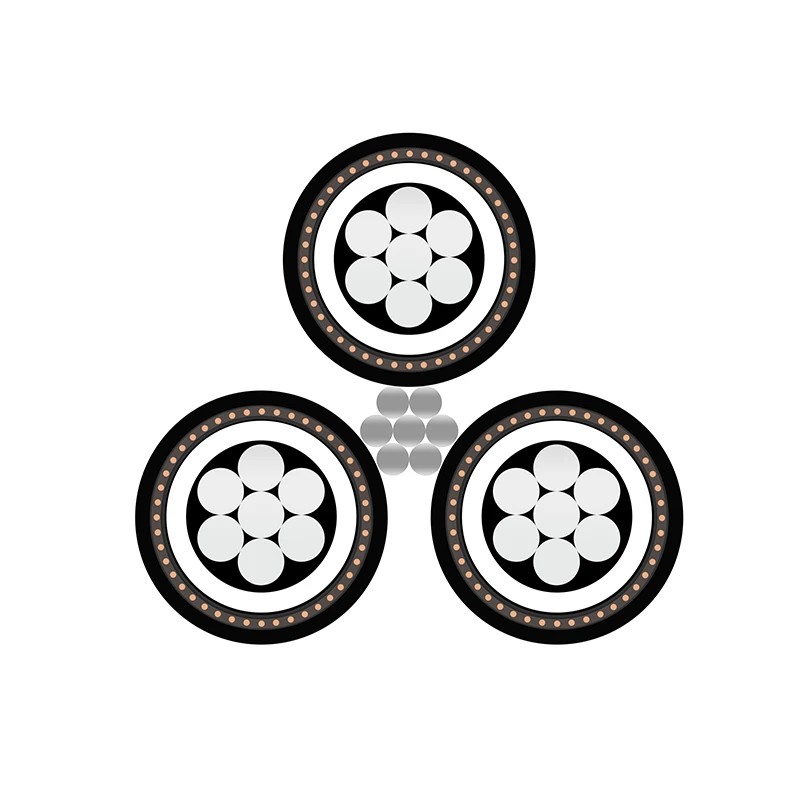

The Screened Aerial Bundled Cable (ABC) with Bare Messenger Neutral 6.35/11kV manufactured by Zhongdong Cable is designed for medium-voltage overhead distribution networks requiring improved electrical protection, mechanical stability, and reliable outdoor performance.
The cable consists of three XLPE insulated aluminium phase conductors assembled around a bare messenger neutral conductor. Each phase conductor incorporates a semi-conductive screen and metallic screen to provide controlled electric field distribution and enhanced protection against electrical stress.
Compared with conventional bare overhead conductors, this screened MV ABC cable reduces the risk of phase contact faults caused by wind movement, vegetation, and external interference. The compact bundled design also helps minimize installation space and improves safety in densely populated or environmentally sensitive areas.
|
Type |
Screened Medium Voltage Aerial Bundled Cable (MV ABC) |
Voltage Rating |
6.35/11 kV |
|
Cores |
3 Insulated Phase Conductors + Bare Messenger Neutral |
Phase Conductor |
Aluminium, Class 2 stranded conductor (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Conductor Screen |
Semi-conductive screen |
|
Metallic Screen |
Copper wire screen / copper tape screen (according to design requirements) |
Neutral Messenger |
Bare Aluminium Alloy / AAAC conductor |
|
Installation |
Overhead medium-voltage distribution systems |
Maximum Operating Temperature |
90°C |
|
Reference Standards |
IEC 60502-4 / IEC 60228 / NF C 33-209 / AS/NZS 3599 |
|
|

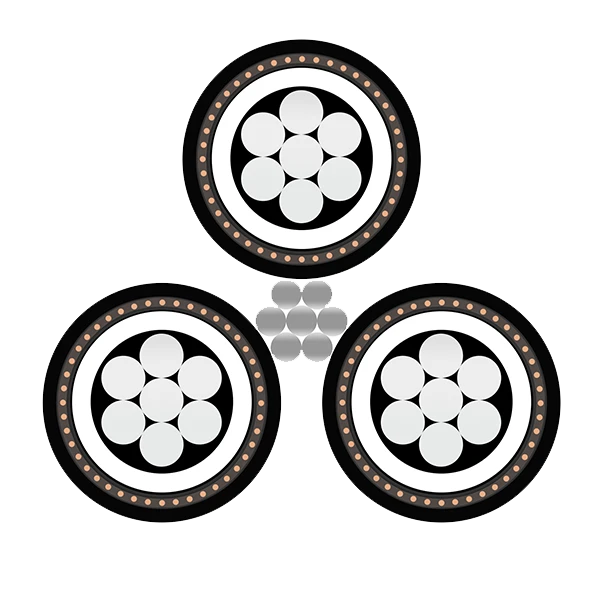

Phase Conductor: Class 2 circular compacted stranded aluminium conductor
Conductor Screen: Extruded semi-conductive layer
Insulation: XLPE (Cross-linked Polyethylene)
Insulation Screen: Extruded semi-conductive layer
Metallic Screen: Copper wire screen or copper tape screen
Separator: Semi-conductive swellable tape
Outer Sheath: HDPE (High Density Polyethylene)
Support Conductor: Bare AAAC (All Aluminium Alloy Conductor)
The Screened MV ABC Cable with Bare Messenger Neutral 6.35/11kV is suitable for medium-voltage overhead distribution systems where enhanced safety, compact installation, and improved network reliability are required.
Typical applications include:
11kV overhead distribution feeder systems
Rural and suburban electrification networks
Urban power distribution expansion projects
Industrial facility power supply lines
Renewable energy collection systems
Distribution networks in areas with high vegetation exposure
Coastal and high humidity regions
Locations requiring reduced phase clearance compared with bare conductors
IEC: IEC 60502-1 / IEC 60228 / IEC 60332-1
EN： EN 60228
DIN VDE: DIN VDE 0276-626
NF: NF C 33-209
GB: GB/T 12527
AS/NZS: AS/NZS 3560.1
ASTM: ASTM B230 / ASTM B231
ICEA: ICEA S-76-474
|
NUMBER OF |
NOMINAL |
PHASE CONDUCTOR STRANDING NOX mm² |
SUPPORT CONDUCTOR |
MAXIMUM |
BREAKING |
CONTINUOUS |
|
3+1 |
50/25 |
19/1.78 |
7/3.0 |
0.641/0.868 |
60 |
116 |
|
3+1 |
70/50 |
19/14 |
7/3.15 |
0.443/0.641 |
62 |
210 |
|
3+1 |
95/50 |
19/2.52 |
7/3.0 |
0.253/0.641 |
60 |
173 |
|
3+1 |
150/50 |
37/2.25 |
7/3.15 |
0.206/0.641 |
62 |
365 |
|
3+1 |
185/120 |
37/2.52 |
7/4.67 |
0.164/0.206 |
150 |
259 |
|
3+1 |
240/50 |
61/2.25 |
7/3.15 |
0.125/0.641 |
62 |
500 |
Screened MV ABC cable includes metallic screening around each insulated conductor, providing better electric field control and improved protection for medium-voltage operation.
The messenger neutral acts as both the electrical neutral conductor and the mechanical supporting element, reducing the need for additional support wires.
Yes. The compact bundled structure requires less installation corridor space than conventional bare conductor systems.
Yes. The XLPE insulation and UV-resistant HDPE sheath provide reliable protection against sunlight, moisture, and weather exposure.
Typical accessories include suspension clamps, anchoring clamps, pole fittings, earthing accessories, and screened cable connection components.
The recommended minimum bending radius is generally 15 × overall cable diameter. Actual installation requirements should follow the manufacturer's recommendations.
Yes. It is suitable for medium-voltage collection networks in solar farms, wind farms, and other renewable energy applications requiring reliable overhead connections.
