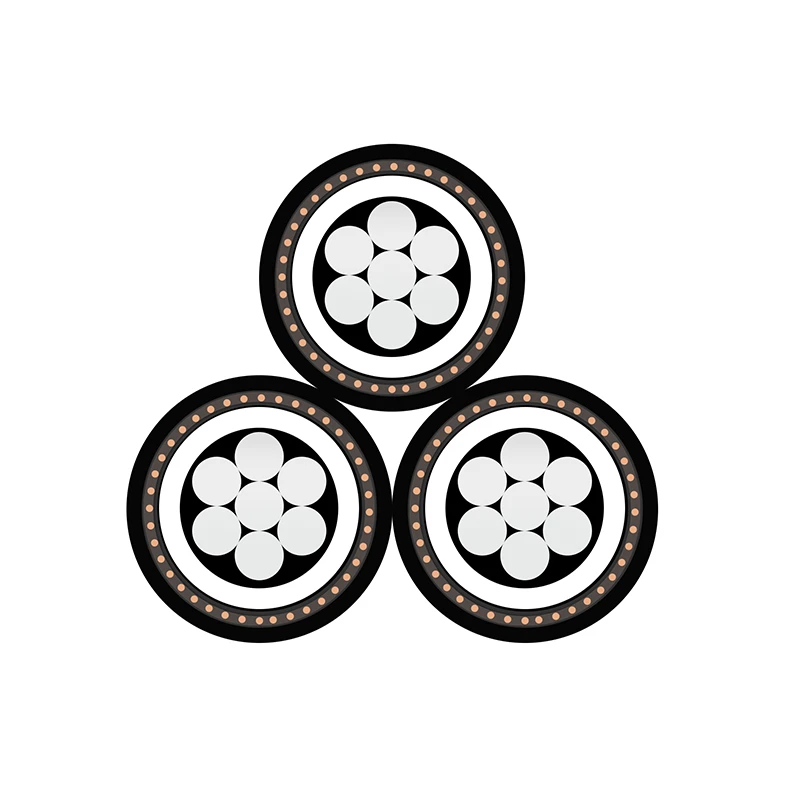

The 6.35/11kV Medium Voltage ABC Cable manufactured by Zhongdong Cable is designed for medium-voltage overhead distribution networks where improved safety, reliability, and environmental resistance are required. It consists of insulated aluminium conductors assembled around a supporting neutral conductor, providing a compact solution for overhead power transmission.
Compared with traditional bare overhead conductors, MV ABC cable reduces the risk of phase-to-phase faults caused by wind, trees, or external contact. The insulated structure also improves reliability in areas with limited corridor space and challenging installation environments.
|
Type |
Medium Voltage Aerial Bundled Cable (MV ABC) |
Voltage Rating |
6.35/11 kV |
|
Cores |
3 Core |
Conductor |
Aluminium, Class 2 (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Messenger Conductor |
Aluminium Alloy / AAAC (According to design requirements) |
|
Screen |
Semi-conductive screen (optional metallic screen according to project requirements) |
Installation |
Overhead distribution networks |
|
Standards |
IEC 60502-4 / IEC 60228 / AS/NZS 3599 (Reference) |
|
|

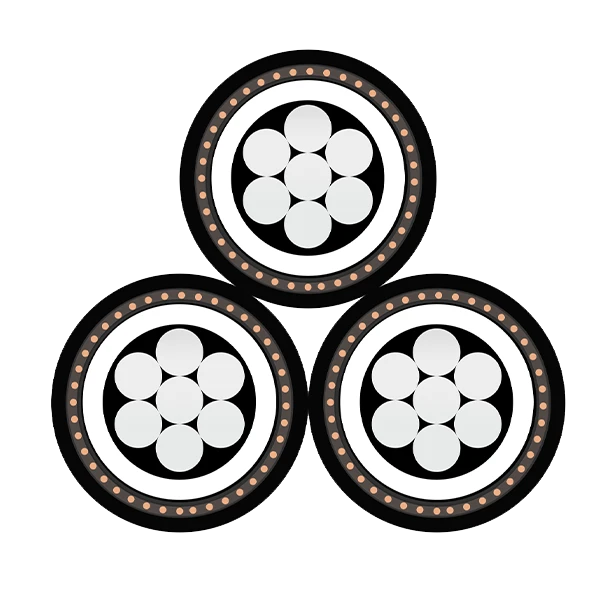

Phase Conductors:
Stranded compact aluminium conductors, Class 2 according to IEC 60228
Conductor Screen:
Semi-conductive layer to improve electric field distribution
Insulation:
XLPE insulation with:
High dielectric strength
Excellent thermal performance
Resistance to UV and weather conditions
Insulation Screen:
Semi-conductive screen or metallic screen for medium-voltage insulation protection
Design:
Medium-voltage aerial bundled cable suitable for overhead distribution systems
The 6.35/11kV MV ABC cable is suitable for medium-voltage overhead networks requiring improved safety and reduced maintenance compared with bare conductor systems.
Typical applications:
Medium-voltage overhead distribution networks
Rural electrification projects
Urban power distribution extensions
Industrial power supply lines
Renewable energy collection networks
Areas with limited right-of-way space
Coastal and high-wind regions requiring improved line reliability
IEC: IEC 60502-1 / IEC 60228 / IEC 60332-1
EN： EN 60228
DIN VDE: DIN VDE 0276-626
NF: NF C 33-209
GB: GB/T 12527
AS/NZS: AS/NZS 3560.1
ASTM: ASTM B230 / ASTM B231
ICEA: ICEA S-76-474
The bundled structure keeps the phase conductors in a fixed arrangement, reducing the possibility of contact between phases and improving network reliability.
The design can include a messenger conductor that provides mechanical support and maintains the required installation strength for overhead applications.
The XLPE insulation allows continuous conductor operation up to 90°C, with short-circuit temperature up to 250°C for 5 seconds.
Yes. The insulated XLPE structure provides better protection against wind, rain, UV exposure, and accidental contact compared with bare overhead conductors.
Typical accessories include suspension clamps, anchoring clamps, pole fittings, and other supporting hardware selected according to cable size and installation conditions.
