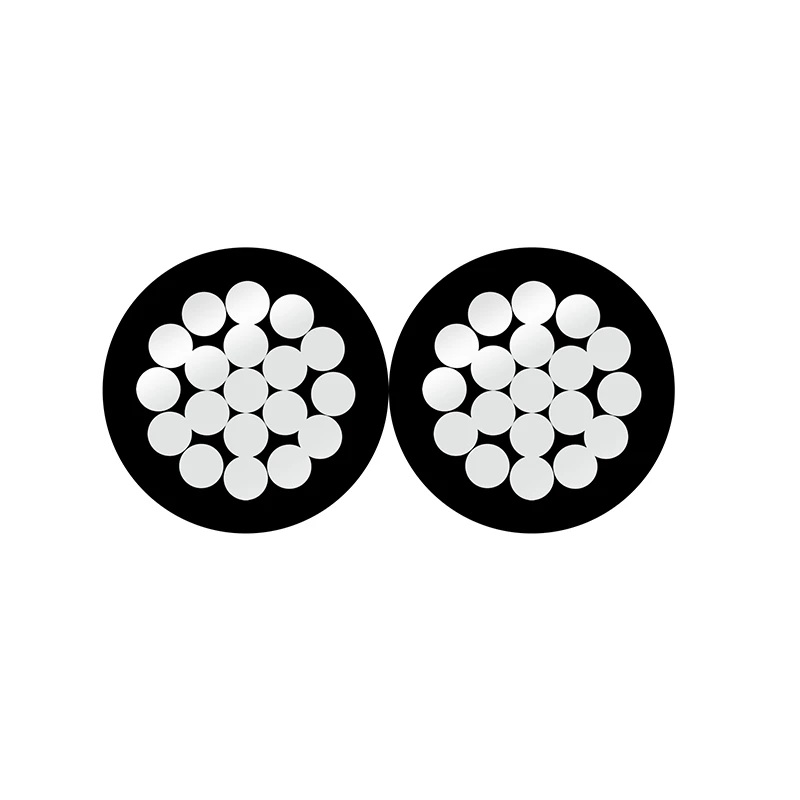

The 0.6/1kV two core ABC cable manufactured by Zhongdong Cable is designed for low-voltage overhead distribution networks. It consists of two insulated aluminium conductors with UV-resistant XLPE insulation, providing a safe and reliable solution for aerial power supply applications.
Compared with traditional bare overhead conductors, ABC cable offers improved safety, reduced risk of short circuits, and better resistance to environmental conditions. The compact bundled structure also helps simplify installation in residential areas, rural networks, and low-voltage distribution systems.
|
Type |
Low Voltage Aerial Bundled Cable (ABC) |
Voltage Rating |
0.6/1 kV |
|
Cores |
2 Core |
Conductor |
Aluminium, Class 2 (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Messenger |
Optional aluminium alloy / insulated neutral conductor (depending on design) |
|
Installation |
Overhead aerial installation |
Standards |
IEC 60502-1 / IEC 60228 |
|
Cross Reference |
NFC 33-209 / AAAC insulated aerial cable equivalent |
|
|
Conductor:
Stranded compact aluminium conductor, Class 2 according to IEC 60228
Insulation:
XLPE insulation with excellent resistance to:
UV radiation
Weather conditions
Heat and ageing

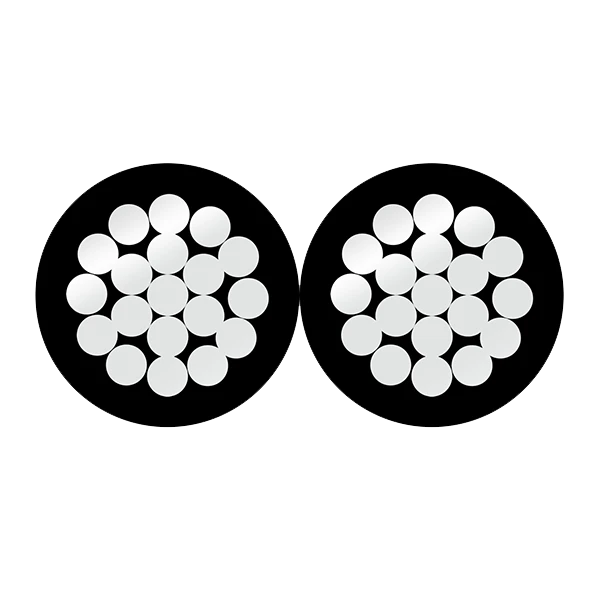

Cable Assembly:
Two insulated conductors twisted together to form a compact aerial bundle
Neutral/Messenger Conductor:
Optional supporting conductor according to project requirements
Design:
Lightweight overhead cable suitable for low-voltage distribution networks
The 0.6/1kV two core ABC cable is mainly used for overhead low-voltage power distribution where safety, easy installation, and reduced maintenance are required.
Typical applications:
Residential electricity distribution
Rural electrification projects
Low-voltage overhead networks
Street lighting power supply
Temporary power supply systems
Underground-to-overhead transition sections
Utility distribution extensions
IEC: IEC 60502-1 / IEC 60228 / IEC 60332-1
EN： EN 60228
DIN VDE: DIN VDE 0276-626
NF: NF C 33-209
GB: GB/T 12527
AS/NZS: AS/NZS 3560.1
ASTM: ASTM B230 / ASTM B231
ICEA: ICEA S-76-474
|
No. of Cores and Section (mm²) |
No. of Wires (No.) |
Nominal Insulation Thickness (mm) |
Aprrox. Diameter of Cable (mm) |
Max. DC. Resistance at 20°C (Ω/km) |
Aprrox. Weight (kg/km) |
|
2×16 |
7 |
1.2 |
14.4 |
1.91 |
131 |
|
2×25 |
7 |
1.4 |
17.6 |
1.2 |
200 |
|
2×35 |
7 |
1.6 |
20.4 |
0.868 |
273 |
|
2×50 |
7 |
1.6 |
22.6 |
0.641 |
350 |
|
2×70 |
12 |
1.8 |
26.8 |
0.443 |
495 |
|
2×95 |
19 |
1.8 |
30.4 |
0.32 |
656 |
|
2×120 |
19 |
1.8 |
32.8 |
0.253 |
799 |
ABC cable provides better safety by reducing the risk of accidental contact, short circuits, and faults caused by trees or weather conditions.
Yes. The XLPE insulation is designed for outdoor use and provides good resistance against UV exposure, moisture, and temperature changes.
The XLPE insulation allows continuous conductor operation up to 90°C, with short-circuit temperature up to 250°C for 5 seconds.
The cable is normally installed on poles using suitable clamps and accessories. Proper installation tension should be controlled to avoid excessive mechanical stress.
The recommended minimum bending radius is generally 10 × overall cable diameter during installation to prevent damage to insulation.
Yes. Its lightweight structure and simple installation make it widely used for rural electrification and extended low-voltage overhead networks.
