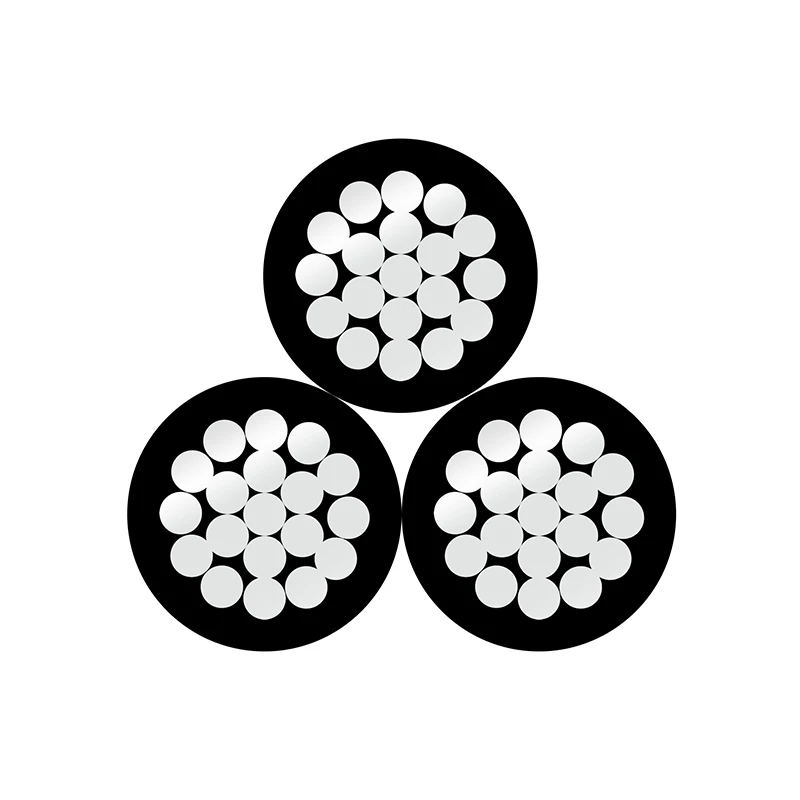

The 0.6/1kV three core ABC cable manufactured by Zhongdong Cable is designed for low-voltage overhead distribution networks. It consists of three insulated aluminium conductors with UV-resistant XLPE insulation, providing a compact and reliable solution for aerial power supply systems.
The bundled construction reduces the risk of phase-to-phase contact and improves safety compared with traditional bare overhead conductors. Its lightweight structure and simple installation make it suitable for residential, rural, and utility distribution projects.
|
Type |
Low Voltage Aerial Bundled Cable (ABC) |
Voltage Rating |
0.6/1 kV |
|
Cores |
3 Core |
Conductor |
Aluminium, Class 2 (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Messenger |
Optional aluminium alloy / insulated neutral conductor (depending on design) |
|
Installation |
Overhead aerial installation |
Standards |
IEC 60502-1 / IEC 60228 |
|
Cross Reference |
NFC 33-209 / AAAC insulated aerial cable equivalent |
|
|

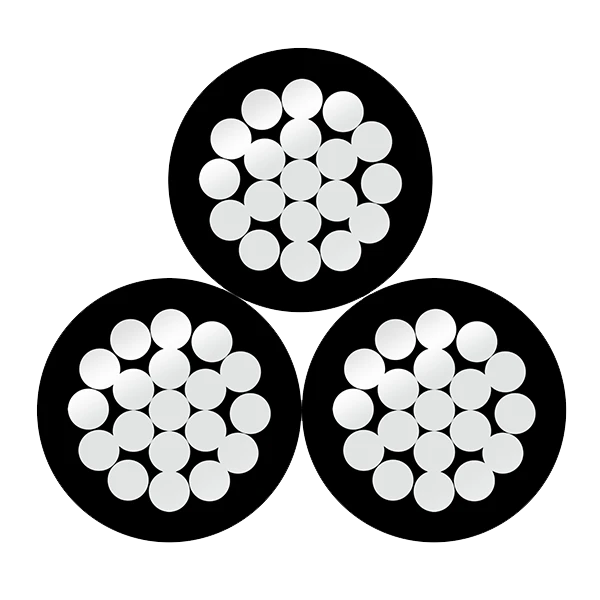

Conductor:
Stranded compact aluminium conductor, Class 2 according to IEC 60228
Insulation:
XLPE insulation with excellent resistance to:
UV radiation
Weather conditions
Heat and ageing
Cable Assembly:
Two insulated conductors twisted together to form a compact aerial bundle
Neutral/Messenger Conductor:
Optional supporting conductor according to project requirements
Design:
Three-core aerial bundled cable for low-voltage overhead distribution systems
The 0.6/1kV three core ABC cable is widely used in low-voltage overhead networks where reliable power supply and safe installation are required.
Typical applications:
Residential electricity distribution networks
Rural electrification projects
Low-voltage utility overhead lines
Street lighting systems
Commercial building power connections
Distribution network expansion projects
Areas requiring improved safety compared with bare conductors
IEC: IEC 60502-1 / IEC 60228 / IEC 60332-1
EN： EN 60228
DIN VDE: DIN VDE 0276-626
NF: NF C 33-209
GB: GB/T 12527
AS/NZS: AS/NZS 3560.1
ASTM: ASTM B230 / ASTM B231
ICEA: ICEA S-76-474
Three core ABC cable has insulated bundled conductors, which improves safety and reduces the risk of short circuits caused by contact between phases or external objects.
Yes. The XLPE insulation provides good resistance to UV radiation, moisture, and weather conditions, making it suitable for long-term outdoor installation.
The XLPE insulation allows continuous conductor operation up to 90°C, with short-circuit temperature up to 250°C for 5 seconds.
Installation normally requires suspension clamps, anchoring clamps, and suitable fittings to support the cable on poles or structures.
The recommended minimum bending radius is generally 10 × overall cable diameter. Excessive bending should be avoided during installation to protect the insulation.
Yes. Its lightweight structure and reduced maintenance requirements make it suitable for extending low-voltage power networks in rural and remote areas.
