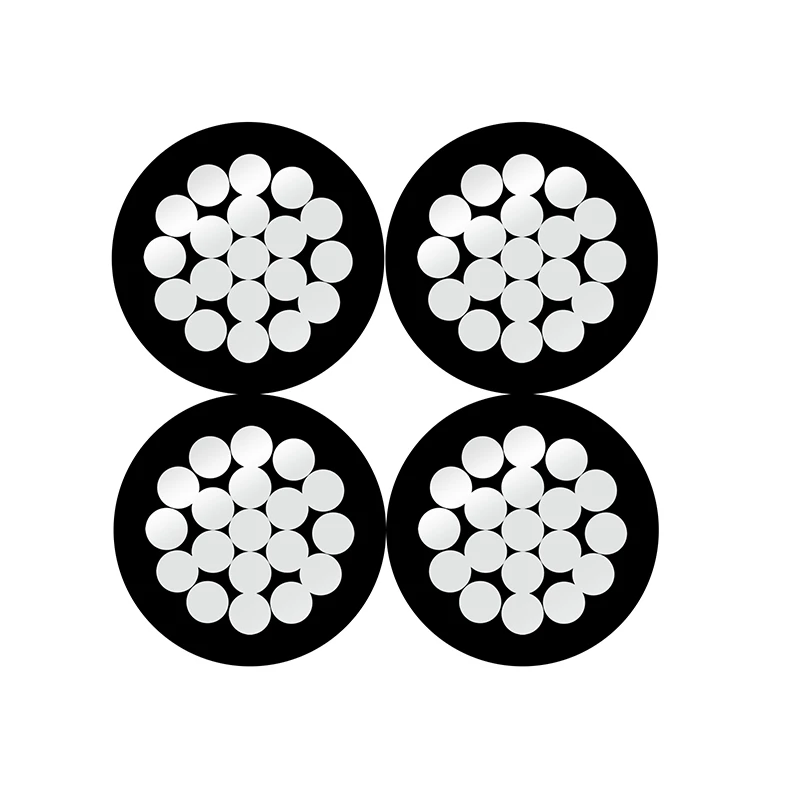

The 0.6/1kV four core ABC cable manufactured by Zhongdong Cable is designed for low-voltage overhead distribution systems requiring reliable three-phase power supply. It consists of four insulated aluminium conductors with UV-resistant XLPE insulation, providing a safe and compact alternative to traditional bare overhead conductors.
The four-core bundled structure includes three phase conductors and one neutral conductor, making it suitable for balanced three-phase distribution networks. Compared with conventional overhead lines, ABC cable offers improved safety, reduced maintenance, and better resistance to environmental conditions.
|
Type |
Low Voltage Aerial Bundled Cable (ABC) |
Voltage Rating |
0.6/1 kV |
|
Cores |
4 Core |
Conductor |
Aluminium, Class 2 (IEC 60228) |
|
Insulation |
XLPE (Cross-linked Polyethylene) |
Messenger |
Optional aluminium alloy / insulated neutral conductor (depending on design) |
|
Installation |
Overhead aerial installation |
Standards |
IEC 60502-1 / IEC 60228 |
|
Cross Reference |
NFC 33-209 / AAAC insulated aerial cable equivalent |
|
|
Conductor:
Stranded compact aluminium conductor, Class 2 according to IEC 60228
Insulation:
XLPE insulation with excellent resistance to:
UV radiation
Weather conditions
Heat and ageing
Cable Assembly:
Two insulated conductors twisted together to form a compact aerial bundle
Neutral/Messenger Conductor:
Optional supporting conductor according to project requirements
Design:
Four-core aerial bundled cable for low-voltage overhead distribution systems
The 0.6/1kV four core ABC cable is mainly used in low-voltage overhead distribution systems where safety, reliability, and simplified installation are required.
Typical applications:
Three-phase low-voltage distribution networks
Residential and commercial power supply
Rural electrification projects
Utility overhead line extensions
Street lighting and public infrastructure power supply
Industrial low-voltage feeder systems
Distribution network upgrades replacing bare conductors
IEC: IEC 60502-1 / IEC 60228 / IEC 60332-1
EN： EN 60228
DIN VDE: DIN VDE 0276-626
NF: NF C 33-209
GB: GB/T 12527
AS/NZS: AS/NZS 3560.1
ASTM: ASTM B230 / ASTM B231
ICEA: ICEA S-76-474
|
No. of Cores and Section (mm²) |
No. of Wires (No.) |
Nominal Insulation Thickness (mm) |
Aprrox. Diameter of Cable (mm) |
Max. DC. Resistance at 20°C (Ω/km) |
Aprrox. Weight (kg/km) |
|
4×16 |
7 |
1.2 |
17.4 |
1.91 |
262 |
|
4×25 |
7 |
1.4 |
21.3 |
1.2 |
399 |
|
4×35 |
7 |
1.6 |
24.7 |
0.868 |
547 |
|
4×50 |
7 |
1.6 |
27.3 |
0.641 |
699 |
|
4×70 |
12 |
1.8 |
32.4 |
0.443 |
990 |
|
4×95 |
19 |
1.8 |
36.8 |
0.32 |
1311 |
|
4×120 |
19 |
1.8 |
39.7 |
0.253 |
1597 |
Four core ABC cable includes three phase conductors and one neutral conductor, making it suitable for complete three-phase power distribution without additional neutral wiring.
The insulated bundle improves electrical safety, reduces the risk of phase contact, and requires less maintenance in areas affected by trees, wind, or harsh weather.
Yes. The XLPE insulation provides good resistance to UV radiation, moisture, and temperature variations, allowing long-term outdoor operation.
The recommended minimum bending radius is generally 10 × overall cable diameter. Proper handling should be followed to avoid damage to the insulation.
The XLPE insulation allows continuous conductor operation up to 90°C, with short-circuit temperature up to 250°C for 5 seconds.
Proper selection of suspension clamps, anchoring accessories, installation tension, and pole spacing should be considered to ensure long-term mechanical reliability.
