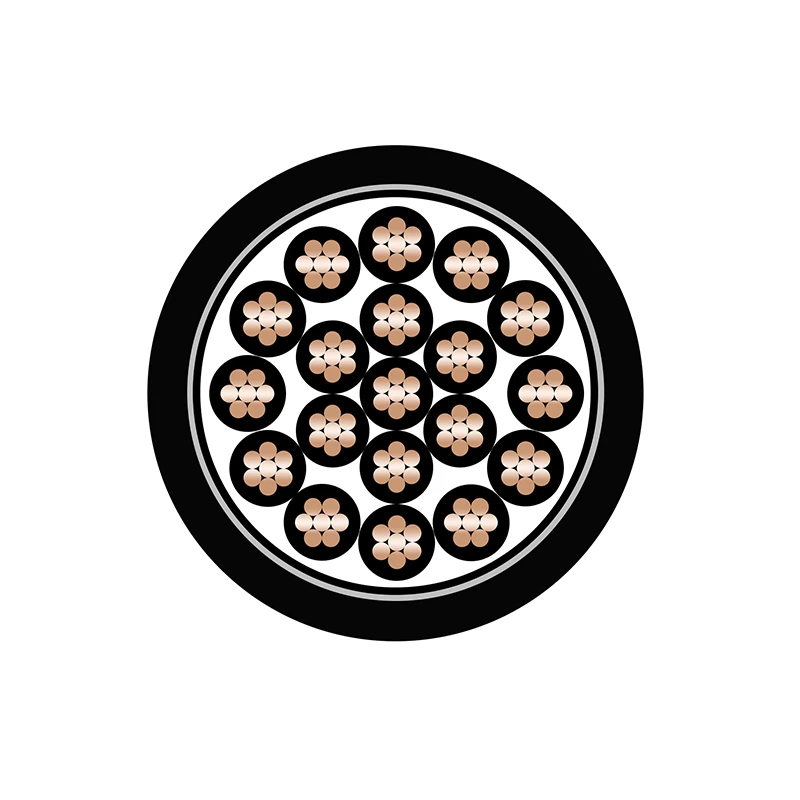

CU/PVC/STA/PVC Control Cable 0.6/1kV

The CU/PVC/STA/PVC control cable 0.6/1kV manufactured by Zhongdong Cable is designed for fixed control, monitoring, and auxiliary power applications in industrial and infrastructure projects.

The cable adopts copper conductors combined with PVC insulation, steel tape armour (STA), and PVC outer sheath, providing reliable electrical performance together with enhanced mechanical protection. The steel tape armour improves resistance against external mechanical impact, compression, and accidental damage, making the cable suitable for demanding installation environments.

Compared with unarmoured control cables, the armoured structure provides additional protection for installations in underground systems, cable trenches, industrial plants, and areas where mechanical stress may occur.

Inquire Now +

Contact Information

Submit

Quick Specs

Type	Armoured Control Cable	Voltage Rating	0.6/1 kV
Cores	Multi-core available	Conductor	Copper, Class 1 / Class 2 (IEC 60228)
Insulation	PVC (Polyvinyl Chloride)	Armour	Steel Tape Armour (STA)
Outer Sheath	PVC ST2	Configuration	Multi-core control cable
Installation	Indoor, outdoor, underground, cable trays, ducts, and cable trenches	Standards	IEC 60502-1 / IEC 60228
Cross Reference	NYBY / KVV22 Equivalent (depending on application)

Construction

Applications

Standards

Technical Data

FAQ

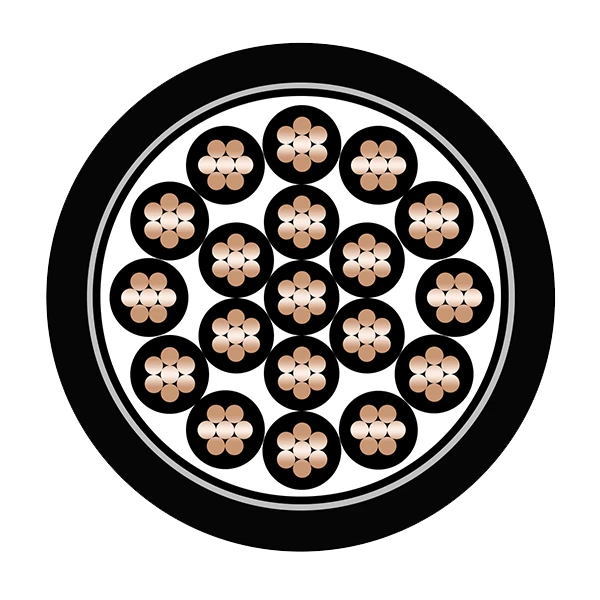

Construction

Conductor:

Plain annealed copper conductor, solid or stranded construction according to conductor size requirements.

Copper conductors provide excellent conductivity and stable signal or auxiliary power transmission performance.

Insulation:

PVC insulation provides reliable electrical separation between individual cores and ensures safe operation under rated voltage conditions.

Assembly:

Insulated cores are laid up together with suitable fillers and binding tapes to form a compact cable core suitable for fixed installation.

Armour:

Steel tape armour (STA) is applied around the cable core to provide additional mechanical protection against impact, compression, and external mechanical forces.

Outer Sheath:

PVC outer sheath provides protection against moisture, abrasion, and normal environmental conditions, ensuring long service life in industrial applications.

Design:

Multi-core armoured control cable designed for fixed installation in control, protection, and auxiliary electrical systems.

Applications

The CU/PVC/STA/PVC 0.6/1kV control cable is widely used in industrial and infrastructure projects where reliable control signal transmission and mechanical protection are required.

The armoured construction makes it suitable for installations exposed to mechanical stress, underground routing, or areas requiring additional cable protection.

Typical applications include:

Industrial automation and control systems

Power plant auxiliary control circuits

Substation protection and monitoring systems

Motor control and switchgear connections

Factory machinery control wiring

Underground control cable networks

Railway and transportation infrastructure systems

Oil & gas and petrochemical facilities

Mining and heavy industrial installations

Building management and electrical control systems

Standards

IEC 60502-1 IEC60228

Specifications

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.2	1.8	10.9	173	36
2×0.75	2	0.6	0.2	1.8	11.3	193	24.5
2×1	2	0.6	0.2	1.8	11.7	206	18.1
2×1.5	2	0.8	0.2	1.8	13.1	256	12.1
2×2.5	2	0.8	0.2	1.8	13.9	292	7.41
2×4	2	1	0.2	1.8	15.8	375	4.61
2×6	2	1	0.2	1.8	16.9	436	3.08
2×10	2	1	0.2	1.8	18.7	576	1.83
3×0.5	2	0.6	0.2	1.8	11.2	191	36
3×0.75	2	0.6	0.2	1.8	11.7	217	24.5
3×1	2	0.6	0.2	1.8	12.1	234	18.1
3×1.5	2	0.8	0.2	1.8	13.6	285	12.1
3×2.5	2	0.8	0.2	1.8	14.5	334	7.41
3×4	2	1	0.2	1.8	16.5	439	4.61
3×6	2	1	0.2	1.8	17.7	528	3.08
3×10	2	1	0.2	1.8	19.6	709	1.83
4×0.5	2	0.6	0.2	1.8	11.8	206	36
4×0.75	2	0.6	0.2	1.8	12.3	228	24.5
4×1	2	0.6	0.2	1.8	12.7	259	18.1
4×1.5	2	0.8	0.2	1.8	14.4	332	12.1
4×2.5	2	0.8	0.2	1.8	15.4	394	7.41
4×4	2	1	0.2	1.8	17.7	525	4.61
4×6	2	1	0.2	1.8	19	642	3.08
4×10	2	1	0.2	1.8	21.2	888	1.83
5×0.5	2	0.6	0.2	1.8	12.4	227	36
5×0.75	2	0.6	0.2	1.8	12.9	266	24.5
5×1	2	0.6	0.2	1.8	13.4	291	18.1
5×1.5	2	0.8	0.2	1.8	15.3	372	12.1
5×2.5	2	0.8	0.2	1.8	16.4	451	7.41
5×4	2	1	0.2	1.8	19	609	4.61
5×6	2	1	0.2	1.8	20.4	738	3.08
5×10	2	1	0.2	1.8	22.9	1042	1.83
6×0.5	2	0.6	0.2	1.8	13	248	36
6×0.75	2	0.6	0.2	1.8	13.6	279	24.5
6×1	2	0.6	0.2	1.8	14.2	308	18.1
6×1.5	2	0.8	0.2	1.8	16.3	403	12.1
6×2.5	2	0.8	0.2	1.8	17.5	489	7.41
6×4	2	1	0.2	1.8	20.4	668	4.61
6×6	2	1	0.2	1.8	22	829	3.08
6×10	2	1	0.2	1.8	24.7	1133	1.83
7×0.5	2	0.6	0.2	1.8	13	255	36
7×0.75	2	0.6	0.2	1.8	13.6	288	24.5
7×1	2	0.6	0.2	1.8	14.2	320	18.1
7×1.5	2	0.8	0.2	1.8	16.3	423	12.1
7×2.5	2	0.8	0.2	1.8	17.5	519	7.41
7×4	2	1	0.2	1.8	20.4	717	4.61
7×6	2	1	0.2	1.8	22	889	3.08
7×10	2	1	0.2	1.8	24.7	1227	1.83
8×0.5	2	0.6	0.2	1.8	13.9	285	36
8×0.75	2	0.6	0.2	1.8	14.7	324	24.5
8×1	2	0.6	0.2	1.8	15.3	361	18.1
8×1.5	2	0.8	0.2	1.8	17.7	479	12.1
8×2.5	2	0.8	0.2	1.8	19.2	590	7.41
8×4	2	1	0.2	1.8	22.4	819	4.61
8×6	2	1	0.2	1.8	24.3	1016	3.08
8×10	2	1	0.2	1.8	27.4	1409	1.83
9×0.5	2	0.6	0.2	1.8	14.7	312	36
9×0.75	2	0.6	0.2	1.8	15.5	357	24.5
9×1	2	0.6	0.2	1.8	16.2	398	18.1
9×1.5	2	0.8	0.2	1.8	18.8	529	12.1
9×2.5	2	0.8	0.2	1.8	20.4	656	7.41
9×4	2	1	0.2	1.8	24	912	4.61
9×6	2	1	0.2	1.8	26	1139	3.08
9×10	2	1	0.2	1.9	29.7	1597	1.83
10×0.5	2	0.6	0.2	1.8	15.1	329	36
10×0.75	2	0.6	0.2	1.8	15.9	376	24.5
10×1	2	0.6	0.2	1.8	16.7	420	18.1
10×1.5	2	0.8	0.2	1.8	19.5	563	12.1
10×2.5	2	0.8	0.2	1.8	21.1	700	7.41
10×4	2	1	0.2	1.8	24.9	979	4.61
10×6	2	1	0.2	1.8	27.1	1226	3.08
10×10	2	1	0.2	1.9	30.9	1721	1.83
12×0.5	2	0.6	0.2	1.8	15.4	348	36
12×0.75	2	0.6	0.2	1.8	16.3	402	24.5
12×1	2	0.6	0.2	1.8	17.1	453	18.1
12×1.5	2	0.8	0.2	1.8	20	615	12.1
12×2.5	2	0.8	0.2	1.8	21.7	772	7.41
12×4	2	1	0.2	1.8	25.6	1093	4.61
12×6	2	1	0.2	1.8	27.9	1376	3.08
14×0.5	2	0.6	0.2	1.8	16	377	36
14×0.75	2	0.6	0.2	1.8	16.9	437	24.5
14×1	2	0.6	0.2	1.8	17.7	495	18.1
14×1.5	2	0.8	0.2	1.8	20.8	677	12.1
14×2.5	2	0.8	0.2	1.8	22.6	857	7.41
14×4	2	1	0.2	1.8	26.8	1223	4.61
14×6	2	1	0.2	1.9	29.3	1562	3.08
16×0.5	2	0.6	0.2	1.8	16.6	409	36
16×0.75	2	0.6	0.2	1.8	17.6	477	24.5
16×1	2	0.6	0.2	1.8	18.4	542	18.1
16×1.5	2	0.8	0.2	1.8	21.7	745	12.1
16×2.5	2	0.8	0.2	1.8	23.7	949	7.41
16×4	2	1	0.2	1.8	28.1	1362	4.61
16×6	2	1	0.2	1.9	30.8	1744	3.08
19×0.5	2	0.6	0.2	1.8	17.2	446	36
19×0.75	2	0.6	0.2	1.8	18.3	524	24.5
19×1	2	0.6	0.2	1.8	19.2	599	18.1
19×1.5	2	0.8	0.2	1.8	22.7	832	12.1
19×2.5	2	0.8	0.2	1.8	24.8	1068	7.41
19×4	2	1	0.2	1.9	29.7	1559	4.61
19×6	2	1	0.2	2	32.9	2018	3.08
20×0.5	2	0.6	0.2	1.8	17.9	469	36
20×0.75	2	0.6	0.2	1.8	19	551	24.5
20×1	2	0.6	0.2	1.8	20	630	18.1
20×1.5	2	0.8	0.2	1.8	23.7	877	12.1
20×2.5	2	0.8	0.2	1.8	25.9	1126	7.41
20×4	2	1	0.2	1.9	31.2	1643	4.61
20×6	2	1	0.2	2	34.9	2165	3.08
21×0.5	2	0.6	0.2	1.8	17.9	478	36
21×0.75	2	0.6	0.2	1.8	19	563	24.5
21×1	2	0.6	0.2	1.8	20	645	18.1
21×1.5	2	0.8	0.2	1.8	23.7	900	12.1
21×2.5	2	0.8	0.2	1.8	25.9	1159	7.41
21×4	2	1	0.2	1.9	31.2	1697	4.61
21×6	2	1	0.2	2	34.9	2238	3.08
22×0.5	2	0.6	0.2	1.8	18.6	501	36
22×0.75	2	0.6	0.2	1.8	19.8	591	24.5
22×1	2	0.6	0.2	1.8	20.8	677	18.1
22×1.5	2	0.8	0.2	1.8	24.8	946	12.1
22×2.5	2	0.8	0.2	1.8	27.2	1218	7.41
22×4	2	1	0.2	2	33.6	1845	4.61
22×6	2	1	0.5	2.1	38.1	2723	3.08
24×0.5	2	0.6	0.2	1.8	19.3	538	36
24×0.75	2	0.6	0.2	1.8	20.6	635	24.5
24×1	2	0.6	0.2	1.8	21.6	728	18.1
24×1.5	2	0.8	0.2	1.8	25.8	1019	12.1
24×2.5	2	0.8	0.2	1.8	28.4	1316	7.41
24×4	2	1	0.2	2	35.1	1995	4.61
24×6	2	1	0.5	2.2	39.9	2957	3.08
27×0.5	2	0.6	0.2	1.8	19.6	566	36
27×0.75	2	0.6	0.2	1.8	20.9	673	24.5
27×1	2	0.6	0.2	1.8	22	775	18.1
27×1.5	2	0.8	0.2	1.8	26.3	1094	12.1
27×2.5	2	0.8	0.2	1.9	29.1	1433	7.41
27×4	2	1	0.2	2.1	36	2178	4.61
27×6	2	1	0.5	2.2	40.7	3190	3.08
30×0.5	2	0.6	0.2	1.8	20.2	603	36
30×0.75	2	0.6	0.2	1.8	21.5	720	24.5
30×1	2	0.6	0.2	1.8	22.7	832	18.1
30×1.5	2	0.8	0.2	1.8	27.1	1180	12.1
30×2.5	2	0.8	0.2	1.9	30	1553	7.41
30×4	2	1	0.5	2.1	38.4	2726	4.61
30×6	2	1	0.5	2.3	42.2	3473	3.08
33×0.5	2	0.6	0.2	1.8	20.8	645	36
33×0.75	2	0.6	0.2	1.8	22.2	772	24.5
33×1	2	0.6	0.2	1.8	23.4	894	18.1
33×1.5	2	0.8	0.2	1.8	28.1	1272	12.1
33×2.5	2	0.8	0.2	1.9	31.1	1679	7.41
33×4	2	1	0.5	2.2	39.9	2953	4.61
33×6	2	1	0.5	2.3	43.7	3749	3.08
37×0.5	2	0.6	0.2	1.8	21.4	690	36
37×0.75	2	0.6	0.2	1.8	22.9	831	24.5
37×1	2	0.6	0.2	1.8	24.1	966	18.1
37×1.5	2	0.8	0.2	1.9	29.2	1395	12.1
37×2.5	2	0.8	0.2	2	32.7	1858	7.41
37×4	2	1	0.5	2.2	41.3	3208	4.61
37×6	2	1	0.5	2.4	45.4	4110	3.08
44×0.5	2	0.6	0.2	1.8	23.5	800	36
44×0.75	2	0.6	0.2	1.8	25.2	965	24.5
44×1	2	0.6	0.2	1.8	26.6	1125	18.1
44×1.5	2	0.8	0.2	2	32.9	1656	12.1
44×2.5	2	0.8	0.5	2.1	38.1	2589	7.41
44×4	2	1	0.5	2.4	46.6	3831	4.61
44×6	2	1	0.5	2.5	51.1	4884	3.08
48×0.5	2	0.6	0.2	1.8	23.8	836	36
48×0.75	2	0.6	0.2	1.8	25.5	1015	24.5
48×1	2	0.6	0.2	1.8	27	1186	18.1
48×1.5	2	0.8	0.2	2	33.8	1791	12.1
48×2.5	2	0.8	0.5	2.2	38.8	2752	7.41
48×4	2	1	0.5	2.4	47.3	4061	4.61
48×6	2	1	0.5	2.6	52.1	5215	3.08
52×0.5	2	0.6	0.2	1.8	24.4	883	36
52×0.75	2	0.6	0.2	1.8	26.1	1074	24.5
52×1	2	0.6	0.2	1.8	27.6	1259	18.1
52×1.5	2	0.8	0.2	2	34.6	1903	12.1
52×2.5	2	0.8	0.5	2.2	39.8	2917	7.41
52×4	2	1	0.5	2.5	48.7	4338	4.61
52×6	2	1	0.5	2.6	53.4	5556	3.08
61×0.5	2	0.6	0.2	1.8	25.6	987	36
61×0.75	2	0.6	0.2	1.8	27.5	1208	24.5
61×1	2	0.6	0.2	1.9	29.3	1434	18.1
61×1.5	2	0.8	0.5	2.1	37.9	2526	12.1
61×2.5	2	0.8	0.5	2.3	42.1	3309	7.41
61×4	2	1	0.5	2.6	51.6	4940	4.61
61×6	2	1	0.5	2.7	56.6	6351	3.08

FAQ

What is CU/PVC/STA/PVC control cable?

CU/PVC/STA/PVC control cable is an armoured control cable consisting of copper conductors, PVC insulation, steel tape armour, and PVC outer sheath. It is designed for control, monitoring, and auxiliary electrical systems requiring additional mechanical protection.

What is the purpose of steel tape armour in this cable?

The steel tape armour provides additional mechanical protection against impact, compression, and external damage, making the cable suitable for underground and industrial installations.

Can CU/PVC/STA/PVC control cable be installed underground?

Yes. The armoured structure makes it suitable for underground cable routes, cable trenches, ducts, and areas where additional mechanical protection is required.

What is the difference between armoured and unarmoured control cables?

Armoured control cables include a steel tape armour layer to improve mechanical strength, while unarmoured cables are mainly used in locations where mechanical protection is not required.

Where is CU/PVC/STA/PVC control cable commonly used?

It is commonly used in power plants, substations, industrial automation systems, control panels, machinery connections, and infrastructure projects.

What conductor types are available for this cable?

The cable can be supplied with solid copper conductors (Class 1) or stranded copper conductors (Class 2) according to IEC 60228 requirements.

What is the maximum operating temperature of CU/PVC/STA/PVC cable?

The PVC insulation allows continuous conductor operation up to 70℃ under normal operating conditions.

Can this cable be customized for special applications?

Yes. Flame-retardant, low smoke zero halogen (LSZH), and other customized constructions can be supplied according to project requirements.
