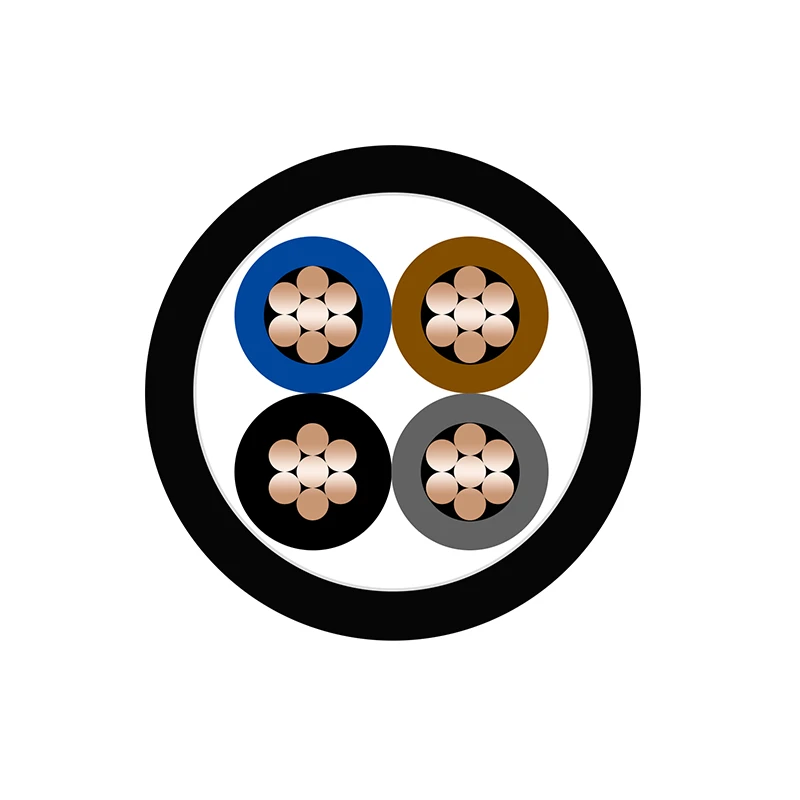

The CU/PVC/PVC 0.6/1kV control cable manufactured by Zhongdong Cable is designed for fixed control, monitoring, and auxiliary electrical applications in industrial, commercial, and infrastructure projects.
The cable consists of copper conductors, PVC insulation, and PVC outer sheath, providing reliable electrical performance, good flexibility, and economical installation. The simple and durable structure makes it suitable for general control circuits where electromagnetic shielding and additional mechanical protection are not required.
CU/PVC/PVC control cable is widely used in automation systems, electrical panels, machinery control circuits, and low-voltage control applications requiring stable and cost-effective cable solutions.
|
Type |
Unshielded Control Cable |
Voltage Rating |
0.6/1 kV |
|
Cores |
Multicore available |
Conductor |
Copper, Class 1 / Class 2 / Class 5 (IEC 60228) |
|
Insulation |
PVC (Polyvinyl Chloride) |
Outer Sheath |
PVC ST2 |
|
Configuration |
Multicore control cable |
Installation |
Indoor, cable trays, conduits, control cabinets, and fixed installations |
|
Standards |
IEC 605021 / IEC 60228 |
Cross Reference |
VV / KVV Equivalent (depending on application) |

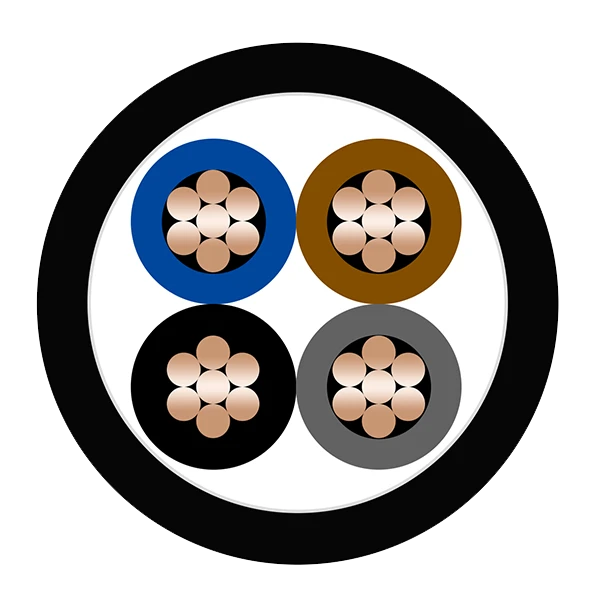

Conductor:
Plain annealed copper conductor, solid or stranded according to conductor size requirements.
Insulation:
PVC insulation provides electrical insulation and reliable operation at rated voltage.
Assembly:
Insulated cores are laid up together with suitable fillers (for multi-core cables) to form a compact cable structure.
Outer Sheath:
PVC sheath provides mechanical protection and resistance against moisture, abrasion, and outdoor conditions.
The CU/PVC/PVC 0.6/1kV control cable is designed for general control and low-voltage auxiliary circuits where shielding and armouring are not required.
Typical applications include:
Industrial control panels
Electrical cabinets and switchboards
Automation equipment wiring
Machinery control systems
Building control installations
Motor control circuits
HVAC and building management systems
Factory production lines
Auxiliary power and control connections
Indoor fixed electrical installations
IEC 60502-1 IEC60228
|
No. of Cores and Nominal Cross Section |
Conductor Type |
Nominal Insulation Thickness |
Nominal |
Approx. |
Approx. Weight |
Max. D.C. Resistance of Conductor at 20℃ |
|
Sheath Thickness |
Overall Diameter |
|||||
|
No. × mm² |
|
mm |
mm |
mm |
kg/km |
Ω/km |
|
2×0.5 |
2 |
0.6 |
1.8 |
8.1 |
74 |
36 |
|
2×0.75 |
2 |
0.6 |
1.8 |
8.5 |
89 |
24.5 |
|
2×1 |
2 |
0.6 |
1.8 |
8.9 |
98 |
18.1 |
|
2×1.5 |
2 |
0.8 |
1.8 |
10.3 |
131 |
12.1 |
|
2×2.5 |
2 |
0.8 |
1.8 |
11.1 |
157 |
7.41 |
|
2×4 |
2 |
1 |
1.8 |
13 |
217 |
4.61 |
|
2×6 |
2 |
1 |
1.8 |
14.1 |
265 |
3.08 |
|
2×10 |
2 |
1 |
1.8 |
15.9 |
383 |
1.83 |
|
3×0.5 |
2 |
0.6 |
1.8 |
8.4 |
88 |
36 |
|
3×0.75 |
2 |
0.6 |
1.8 |
8.9 |
109 |
24.5 |
|
3×1 |
2 |
0.6 |
1.8 |
9.3 |
121 |
18.1 |
|
3×1.5 |
2 |
0.8 |
1.8 |
10.8 |
154 |
12.1 |
|
3×2.5 |
2 |
0.8 |
1.8 |
11.7 |
192 |
7.41 |
|
3×4 |
2 |
1 |
1.8 |
13.7 |
272 |
4.61 |
|
3×6 |
2 |
1 |
1.8 |
14.9 |
348 |
3.08 |
|
3×10 |
2 |
1 |
1.8 |
16.8 |
505 |
1.83 |
|
4×0.5 |
2 |
0.6 |
1.8 |
9 |
97 |
36 |
|
4×0.75 |
2 |
0.6 |
1.8 |
9.5 |
113 |
24.5 |
|
4×1 |
2 |
0.6 |
1.8 |
9.9 |
138 |
18.1 |
|
4×1.5 |
2 |
0.8 |
1.8 |
11.6 |
191 |
12.1 |
|
4×2.5 |
2 |
0.8 |
1.8 |
12.6 |
240 |
7.41 |
|
4×4 |
2 |
1 |
1.8 |
14.9 |
344 |
4.61 |
|
4×6 |
2 |
1 |
1.8 |
16.2 |
445 |
3.08 |
|
4×10 |
2 |
1 |
1.8 |
18.4 |
664 |
1.83 |
|
5×0.5 |
2 |
0.6 |
1.8 |
9.6 |
110 |
36 |
|
5×0.75 |
2 |
0.6 |
1.8 |
10.1 |
143 |
24.5 |
|
5×1 |
2 |
0.6 |
1.8 |
10.6 |
161 |
18.1 |
|
5×1.5 |
2 |
0.8 |
1.8 |
12.5 |
220 |
12.1 |
|
5×2.5 |
2 |
0.8 |
1.8 |
13.6 |
285 |
7.41 |
|
5×4 |
2 |
1 |
1.8 |
16.2 |
412 |
4.61 |
|
5×6 |
2 |
1 |
1.8 |
17.6 |
523 |
3.08 |
|
5×10 |
2 |
1 |
1.8 |
20.1 |
799 |
1.83 |
|
6×0.5 |
2 |
0.6 |
1.8 |
10.2 |
124 |
36 |
|
6×0.75 |
2 |
0.6 |
1.8 |
10.8 |
147 |
24.5 |
|
6×1 |
2 |
0.6 |
1.8 |
11.4 |
170 |
18.1 |
|
6×1.5 |
2 |
0.8 |
1.8 |
13.5 |
239 |
12.1 |
|
6×2.5 |
2 |
0.8 |
1.8 |
14.7 |
311 |
7.41 |
|
6×4 |
2 |
1 |
1.8 |
17.6 |
455 |
4.61 |
|
6×6 |
2 |
1 |
1.8 |
19.2 |
596 |
3.08 |
|
6×10 |
2 |
1 |
1.8 |
21.9 |
868 |
1.83 |
|
7×0.5 |
2 |
0.6 |
1.8 |
10.2 |
131 |
36 |
|
7×0.75 |
2 |
0.6 |
1.8 |
10.8 |
157 |
24.5 |
|
7×1 |
2 |
0.6 |
1.8 |
11.4 |
182 |
18.1 |
|
7×1.5 |
2 |
0.8 |
1.8 |
13.5 |
259 |
12.1 |
|
7×2.5 |
2 |
0.8 |
1.8 |
14.7 |
341 |
7.41 |
|
7×4 |
2 |
1 |
1.8 |
17.6 |
504 |
4.61 |
|
7×6 |
2 |
1 |
1.8 |
19.2 |
657 |
3.08 |
|
7×10 |
2 |
1 |
1.8 |
21.9 |
962 |
1.83 |
|
8×0.5 |
2 |
0.6 |
1.8 |
11.1 |
150 |
36 |
|
8×0.75 |
2 |
0.6 |
1.8 |
11.9 |
180 |
24.5 |
|
8×1 |
2 |
0.6 |
1.8 |
12.5 |
209 |
18.1 |
|
8×1.5 |
2 |
0.8 |
1.8 |
14.9 |
298 |
12.1 |
|
8×2.5 |
2 |
0.8 |
1.8 |
16.4 |
392 |
7.41 |
|
8×4 |
2 |
1 |
1.8 |
19.6 |
582 |
4.61 |
|
8×6 |
2 |
1 |
1.8 |
21.5 |
755 |
3.08 |
|
8×10 |
2 |
1 |
1.8 |
24.6 |
1111 |
1.83 |
|
9×0.5 |
2 |
0.6 |
1.8 |
11.9 |
167 |
36 |
|
9×0.75 |
2 |
0.6 |
1.8 |
12.7 |
203 |
24.5 |
|
9×1 |
2 |
0.6 |
1.8 |
13.4 |
235 |
18.1 |
|
9×1.5 |
2 |
0.8 |
1.8 |
16 |
334 |
12.1 |
|
9×2.5 |
2 |
0.8 |
1.8 |
17.6 |
442 |
7.41 |
|
9×4 |
2 |
1 |
1.8 |
21.2 |
655 |
4.61 |
|
9×6 |
2 |
1 |
1.8 |
23.2 |
857 |
3.08 |
|
9×10 |
2 |
1 |
1.8 |
26.7 |
1261 |
1.83 |
|
10×0.5 |
2 |
0.6 |
1.8 |
12.3 |
179 |
36 |
|
10×0.75 |
2 |
0.6 |
1.8 |
13.1 |
216 |
24.5 |
|
10×1 |
2 |
0.6 |
1.8 |
13.9 |
252 |
18.1 |
|
10×1.5 |
2 |
0.8 |
1.8 |
16.7 |
360 |
12.1 |
|
10×2.5 |
2 |
0.8 |
1.8 |
18.3 |
478 |
7.41 |
|
10×4 |
2 |
1 |
1.8 |
22.1 |
711 |
4.61 |
|
10×6 |
2 |
1 |
1.8 |
24.3 |
932 |
3.08 |
|
10×10 |
2 |
1 |
1.8 |
27.9 |
1369 |
1.83 |
|
12×0.5 |
2 |
0.6 |
1.8 |
12.6 |
195 |
36 |
|
12×0.75 |
2 |
0.6 |
1.8 |
13.5 |
238 |
24.5 |
|
12×1 |
2 |
0.6 |
1.8 |
14.3 |
280 |
18.1 |
|
12×1.5 |
2 |
0.8 |
1.8 |
17.2 |
406 |
12.1 |
|
12×2.5 |
2 |
0.8 |
1.8 |
18.9 |
543 |
7.41 |
|
12×4 |
2 |
1 |
1.8 |
22.8 |
816 |
4.61 |
|
12×6 |
2 |
1 |
1.8 |
25.1 |
1072 |
3.08 |
|
14×0.5 |
2 |
0.6 |
1.8 |
13.2 |
217 |
36 |
|
14×0.75 |
2 |
0.6 |
1.8 |
14.1 |
266 |
24.5 |
|
14×1 |
2 |
0.6 |
1.8 |
14.9 |
314 |
18.1 |
|
14×1.5 |
2 |
0.8 |
1.8 |
18 |
459 |
12.1 |
|
14×2.5 |
2 |
0.8 |
1.8 |
19.8 |
617 |
7.41 |
|
14×4 |
2 |
1 |
1.8 |
24 |
932 |
4.61 |
|
14×6 |
2 |
1 |
1.8 |
26.3 |
1230 |
3.08 |
|
16×0.5 |
2 |
0.6 |
1.8 |
13.8 |
242 |
36 |
|
16×0.75 |
2 |
0.6 |
1.8 |
14.8 |
298 |
24.5 |
|
16×1 |
2 |
0.6 |
1.8 |
15.6 |
352 |
18.1 |
|
16×1.5 |
2 |
0.8 |
1.8 |
18.9 |
516 |
12.1 |
|
16×2.5 |
2 |
0.8 |
1.8 |
20.9 |
696 |
7.41 |
|
16×4 |
2 |
1 |
1.8 |
25.3 |
1055 |
4.61 |
|
16×6 |
2 |
1 |
1.8 |
27.8 |
1393 |
3.08 |
|
19×0.5 |
2 |
0.6 |
1.8 |
14.4 |
271 |
36 |
|
19×0.75 |
2 |
0.6 |
1.8 |
15.5 |
336 |
24.5 |
|
19×1 |
2 |
0.6 |
1.8 |
16.4 |
400 |
18.1 |
|
19×1.5 |
2 |
0.8 |
1.8 |
19.9 |
592 |
12.1 |
|
19×2.5 |
2 |
0.8 |
1.8 |
22 |
802 |
7.41 |
|
19×4 |
2 |
1 |
1.8 |
26.7 |
1222 |
4.61 |
|
19×6 |
2 |
1 |
1.9 |
29.9 |
1643 |
3.08 |
|
20×0.5 |
2 |
0.6 |
1.8 |
15.1 |
286 |
36 |
|
20×0.75 |
2 |
0.6 |
1.8 |
16.2 |
355 |
24.5 |
|
20×1 |
2 |
0.6 |
1.8 |
17.2 |
422 |
18.1 |
|
20×1.5 |
2 |
0.8 |
1.8 |
20.9 |
624 |
12.1 |
|
20×2.5 |
2 |
0.8 |
1.8 |
23.1 |
845 |
7.41 |
|
20×4 |
2 |
1 |
1.8 |
28.2 |
1288 |
4.61 |
|
20×6 |
2 |
1 |
1.9 |
31.5 |
1731 |
3.08 |
|
21×0.5 |
2 |
0.6 |
1.8 |
15.1 |
294 |
36 |
|
21×0.75 |
2 |
0.6 |
1.8 |
16.2 |
366 |
24.5 |
|
21×1 |
2 |
0.6 |
1.8 |
17.2 |
436 |
18.1 |
|
21×1.5 |
2 |
0.8 |
1.8 |
20.9 |
647 |
12.1 |
|
21×2.5 |
2 |
0.8 |
1.8 |
23.1 |
879 |
7.41 |
|
21×4 |
2 |
1 |
1.8 |
28.2 |
1342 |
4.61 |
|
21×6 |
2 |
1 |
1.9 |
31.5 |
1804 |
3.08 |
|
22×0.5 |
2 |
0.6 |
1.8 |
15.8 |
309 |
36 |
|
22×0.75 |
2 |
0.6 |
1.8 |
17 |
385 |
24.5 |
|
22×1 |
2 |
0.6 |
1.8 |
18 |
458 |
18.1 |
|
22×1.5 |
2 |
0.8 |
1.8 |
22 |
679 |
12.1 |
|
22×2.5 |
2 |
0.8 |
1.8 |
24.4 |
922 |
7.41 |
|
22×4 |
2 |
1 |
1.9 |
30.2 |
1430 |
4.61 |
|
22×6 |
2 |
1 |
2 |
33.5 |
1908 |
3.08 |
|
24×0.5 |
2 |
0.6 |
1.8 |
16.5 |
338 |
36 |
|
24×0.75 |
2 |
0.6 |
1.8 |
17.8 |
420 |
24.5 |
|
24×1 |
2 |
0.6 |
1.8 |
18.8 |
500 |
18.1 |
|
24×1.5 |
2 |
0.8 |
1.8 |
23 |
739 |
12.1 |
|
24×2.5 |
2 |
0.8 |
1.8 |
25.6 |
1006 |
7.41 |
|
24×4 |
2 |
1 |
1.9 |
31.7 |
1559 |
4.61 |
|
24×6 |
2 |
1 |
2 |
35.1 |
2084 |
3.08 |
|
27×0.5 |
2 |
0.6 |
1.8 |
16.8 |
362 |
36 |
|
27×0.75 |
2 |
0.6 |
1.8 |
18.1 |
453 |
24.5 |
|
27×1 |
2 |
0.6 |
1.8 |
19.2 |
542 |
18.1 |
|
27×1.5 |
2 |
0.8 |
1.8 |
23.5 |
808 |
12.1 |
|
27×2.5 |
2 |
0.8 |
1.8 |
26.1 |
1104 |
7.41 |
|
27×4 |
2 |
1 |
2 |
32.6 |
1732 |
4.61 |
|
27×6 |
2 |
1 |
2.1 |
36.1 |
2314 |
3.08 |
|
30×0.5 |
2 |
0.6 |
1.8 |
17.4 |
392 |
36 |
|
30×0.75 |
2 |
0.6 |
1.8 |
18.7 |
493 |
24.5 |
|
30×1 |
2 |
0.6 |
1.8 |
19.9 |
592 |
18.1 |
|
30×1.5 |
2 |
0.8 |
1.8 |
24.3 |
885 |
12.1 |
|
30×2.5 |
2 |
0.8 |
1.8 |
27 |
1212 |
7.41 |
|
30×4 |
2 |
1 |
2 |
33.8 |
1903 |
4.61 |
|
30×6 |
2 |
1 |
2.1 |
37.4 |
2547 |
3.08 |
|
33×0.5 |
2 |
0.6 |
1.8 |
18 |
426 |
36 |
|
33×0.75 |
2 |
0.6 |
1.8 |
19.4 |
537 |
24.5 |
|
33×1 |
2 |
0.6 |
1.8 |
20.6 |
644 |
18.1 |
|
33×1.5 |
2 |
0.8 |
1.8 |
25.3 |
965 |
12.1 |
|
33×2.5 |
2 |
0.8 |
1.8 |
28.1 |
1325 |
7.41 |
|
33×4 |
2 |
1 |
2 |
35.1 |
2081 |
4.61 |
|
33×6 |
2 |
1 |
2.2 |
39.1 |
2804 |
3.08 |
|
37×0.5 |
2 |
0.6 |
1.8 |
18.6 |
464 |
36 |
|
37×0.75 |
2 |
0.6 |
1.8 |
20.1 |
587 |
24.5 |
|
37×1 |
2 |
0.6 |
1.8 |
21.3 |
707 |
18.1 |
|
37×1.5 |
2 |
0.8 |
1.8 |
26.2 |
1064 |
12.1 |
|
37×2.5 |
2 |
0.8 |
1.9 |
29.7 |
1485 |
7.41 |
|
37×4 |
2 |
1 |
2.1 |
36.7 |
2320 |
4.61 |
|
37×6 |
2 |
1 |
2.2 |
40.6 |
3108 |
3.08 |
|
44×0.5 |
2 |
0.6 |
1.8 |
20.7 |
549 |
36 |
|
44×0.75 |
2 |
0.6 |
1.8 |
22.4 |
694 |
24.5 |
|
44×1 |
2 |
0.6 |
1.8 |
23.8 |
836 |
18.1 |
|
44×1.5 |
2 |
0.8 |
1.9 |
29.9 |
1280 |
12.1 |
|
44×2.5 |
2 |
0.8 |
2 |
33.5 |
1774 |
7.41 |
|
44×4 |
2 |
1 |
2.2 |
41.4 |
2766 |
4.61 |
|
44×6 |
2 |
1 |
2.4 |
46.1 |
3728 |
3.08 |
|
48×0.5 |
2 |
0.6 |
1.8 |
21 |
581 |
36 |
|
48×0.75 |
2 |
0.6 |
1.8 |
22.7 |
739 |
24.5 |
|
48×1 |
2 |
0.6 |
1.8 |
24.2 |
893 |
18.1 |
|
48×1.5 |
2 |
0.8 |
1.9 |
30.4 |
1372 |
12.1 |
|
48×2.5 |
2 |
0.8 |
2 |
34 |
1906 |
7.41 |
|
48×4 |
2 |
1 |
2.3 |
42.3 |
2998 |
4.61 |
|
48×6 |
2 |
1 |
2.4 |
46.9 |
4017 |
3.08 |
|
52×0.5 |
2 |
0.6 |
1.8 |
21.6 |
621 |
36 |
|
52×0.75 |
2 |
0.6 |
1.8 |
23.3 |
791 |
24.5 |
|
52×1 |
2 |
0.6 |
1.8 |
24.8 |
957 |
18.1 |
|
52×1.5 |
2 |
0.8 |
1.9 |
31.2 |
1473 |
12.1 |
|
52×2.5 |
2 |
0.8 |
2 |
35 |
2048 |
7.41 |
|
52×4 |
2 |
1 |
2.3 |
43.5 |
3225 |
4.61 |
|
52×6 |
2 |
1 |
2.4 |
48.2 |
4326 |
3.08 |
|
52×6 |
2 |
1 |
2.4 |
48.2 |
4326 |
3.08 |
|
61×0.5 |
2 |
0.6 |
1.8 |
22.8 |
711 |
36 |
|
61×0.75 |
2 |
0.6 |
1.8 |
24.7 |
909 |
24.5 |
|
61×1 |
2 |
0.6 |
1.8 |
26.3 |
1102 |
18.1 |
|
61×1.5 |
2 |
0.8 |
2 |
33.3 |
1714 |
12.1 |
|
61×2.5 |
2 |
0.8 |
2.1 |
37.3 |
2386 |
7.41 |
|
61×4 |
2 |
1 |
2.4 |
46.4 |
3756 |
4.61 |
|
61×6 |
2 |
1 |
2.6 |
51.6 |
5065 |
3.08 |
CU/PVC/PVC control cable is a low-voltage control cable consisting of copper conductors, PVC insulation, and PVC outer sheath. It is designed for general control, monitoring, and auxiliary electrical circuits.
CU/PVC/PVC is an unshielded cable for standard control applications, while CU/PVC/CTS/PVC includes a copper tape screen to improve protection against electromagnetic interference.
It is commonly used in control cabinets, industrial equipment, automation systems, building electrical installations, and general low-voltage control circuits.
Yes. It is widely used for indoor fixed installations such as control panels, electrical cabinets, and equipment wiring systems.
Yes. Depending on the conductor size and project requirements, CU/PVC/PVC cable can be used for auxiliary power supply and control applications.
The cable can be supplied with solid copper conductors (Class 1), stranded copper conductors (Class 2), or flexible copper conductors (Class 5) according to IEC 60228.
The PVC insulation allows continuous conductor operation up to 70℃ under normal operating conditions.
Yes. Flame-retardant, low smoke zero halogen (LSZH), and other customized cable constructions can be supplied according to project requirements.
Direct Factory Since 2006
67,000㎡ Manufacturing Base
0.6kV–110kV Cable Solutions
Reply Within 24 Hours
Fumigated Wooden Drums: Fully heat-treated and officially stamped in strict compliance with ISPM 15 international phytosanitary regulations. This guarantees seamless, delay-free customs clearance at any global port.
Steel-Wooden Hybrid Drums (Iron-Wooden Axle): Engineered with reinforced steel structural frames and durable wood flanging. This hybrid design prevents drum collapse under heavy loads and provides ultimate mechanical protection during rough ocean freight handling.
100% Customized Packaging: We cooperate closely with project engineers to provide tailored packing options—including custom cable lengths per drum, protective lagging, water-proof plastic wrapping, or specific color coding—tailored to your exact on-site installation layout.
Zhongdong Cable combines premium raw materials, large-scale manufacturing capabilities, and strict quality control systems to deliver cable products that fully match your technical requirements and brand identity.
