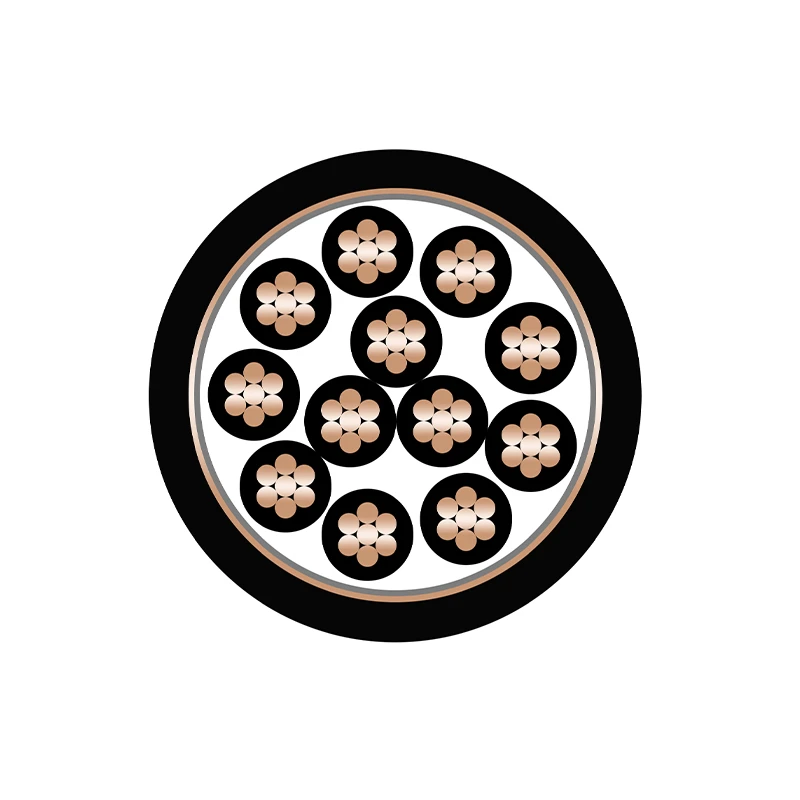

CU/PVC/AL-Foil/PVC Control Cable 0.6/1kV

CU/PVC/AL-Foil/PVC Control Cable 0.6/1kV

The CU/PVC/AL-Foil/PVC 0.6/1kV control cable manufactured by Zhongdong Cable is designed for control, instrumentation, and signal transmission applications where lightweight electromagnetic shielding is required.

The cable consists of copper conductors, PVC insulation, aluminium foil screen, and PVC outer sheath. The aluminium foil screen provides effective protection against high-frequency electromagnetic interference and reduces signal disturbance caused by external electrical noise.

Compared with copper tape screened cables, the aluminium foil shielding structure offers a lightweight and economical solution while maintaining reliable shielding performance. It is widely used in automation systems, instrumentation circuits, communication control systems, and electrical equipment connections.

Inquire Now +

Contact Information

Submit

Quick Specs

Type	Screened Control Cable	Voltage Rating	0.6/1 kV
Cores	Multi-core available	Conductor	Copper, Class 1 / Class 2 / Class 5 (IEC 60228)
Insulation	PVC (Polyvinyl Chloride)	Screen	Aluminium Foil Screen (AL-Foil) with Drain Wire
Outer Sheath	PVC (Polyvinyl Chloride)	Configuration	Multi-core control cable
Installation	Indoor, outdoor, cable trays, ducts, and fixed installations	Cross Reference	LiYCY / KVVP3 Equivalent (depending on application)
Standards	IEC 60228 / IEC 60502-1

Construction

Applications

Standards

Technical Data

FAQ

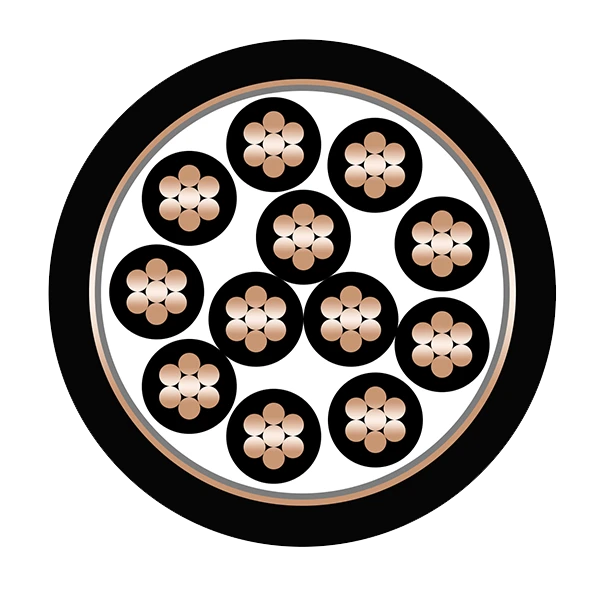

Construction

Conductor:

Plain annealed copper conductor, solid or stranded construction according to cable size requirements. The conductor provides excellent electrical conductivity and stable transmission performance.

Insulation:

PVC insulation provides reliable electrical separation between conductors and ensures safe operation under rated voltage conditions.

Assembly:

Insulated cores are laid up together with suitable fillers and binding materials to form a compact cable structure.

Screen:

Aluminium foil screen is applied around the cable core together with a drain wire to provide electromagnetic interference protection and ensure effective grounding of the shielding layer.

Outer Sheath:

PVC outer sheath provides mechanical protection and resistance against moisture, abrasion, and common environmental conditions.

Applications

The CU/PVC/AL-Foil/PVC 0.6/1kV control cable is designed for applications requiring protection against electromagnetic interference while maintaining a lightweight cable structure.

Typical applications include:

Industrial automation systems

PLC and instrumentation wiring

Data acquisition and monitoring systems

Control panels and electrical cabinets

Electronic equipment connections

Building automation systems

HVAC control systems

Process control installations

Machinery control circuits

Communication and signal transmission systems

Standards

IEC 60502-1 IEC60228

Specifications

of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.2	1.8	10.9	173	36
2×0.75	2	0.6	0.2	1.8	11.3	193	24.5
2×1	2	0.6	0.2	1.8	11.7	206	18.1
2×1.5	2	0.8	0.2	1.8	13.1	256	12.1
2×2.5	2	0.8	0.2	1.8	13.9	292	7.41
2×4	2	1	0.2	1.8	15.8	375	4.61
2×6	2	1	0.2	1.8	16.9	436	3.08
2×10	2	1	0.2	1.8	18.7	576	1.83
3×0.5	2	0.6	0.2	1.8	11.2	191	36
3×0.75	2	0.6	0.2	1.8	11.7	217	24.5
3×1	2	0.6	0.2	1.8	12.1	234	18.1
3×1.5	2	0.8	0.2	1.8	13.6	285	12.1
3×2.5	2	0.8	0.2	1.8	14.5	334	7.41
3×4	2	1	0.2	1.8	16.5	439	4.61
3×6	2	1	0.2	1.8	17.7	528	3.08
3×10	2	1	0.2	1.8	19.6	709	1.83
4×0.5	2	0.6	0.2	1.8	11.8	206	36
4×0.75	2	0.6	0.2	1.8	12.3	228	24.5
4×1	2	0.6	0.2	1.8	12.7	259	18.1
4×1.5	2	0.8	0.2	1.8	14.4	332	12.1
4×2.5	2	0.8	0.2	1.8	15.4	394	7.41
4×4	2	1	0.2	1.8	17.7	525	4.61
4×6	2	1	0.2	1.8	19	642	3.08
4×10	2	1	0.2	1.8	21.2	888	1.83
5×0.5	2	0.6	0.2	1.8	12.4	227	36
5×0.75	2	0.6	0.2	1.8	12.9	266	24.5
5×1	2	0.6	0.2	1.8	13.4	291	18.1
5×1.5	2	0.8	0.2	1.8	15.3	372	12.1
5×2.5	2	0.8	0.2	1.8	16.4	451	7.41
5×4	2	1	0.2	1.8	19	609	4.61
5×6	2	1	0.2	1.8	20.4	738	3.08
5×10	2	1	0.2	1.8	22.9	1042	1.83
6×0.5	2	0.6	0.2	1.8	13	248	36
6×0.75	2	0.6	0.2	1.8	13.6	279	24.5
6×1	2	0.6	0.2	1.8	14.2	308	18.1
6×1.5	2	0.8	0.2	1.8	16.3	403	12.1
6×2.5	2	0.8	0.2	1.8	17.5	489	7.41
6×4	2	1	0.2	1.8	20.4	668	4.61
6×6	2	1	0.2	1.8	22	829	3.08
6×10	2	1	0.2	1.8	24.7	1133	1.83
7×0.5	2	0.6	0.2	1.8	13	255	36
7×0.75	2	0.6	0.2	1.8	13.6	288	24.5
7×1	2	0.6	0.2	1.8	14.2	320	18.1
7×1.5	2	0.8	0.2	1.8	16.3	423	12.1
7×2.5	2	0.8	0.2	1.8	17.5	519	7.41
7×4	2	1	0.2	1.8	20.4	717	4.61
7×6	2	1	0.2	1.8	22	889	3.08
7×10	2	1	0.2	1.8	24.7	1227	1.83
8×0.5	2	0.6	0.2	1.8	13.9	285	36
8×0.75	2	0.6	0.2	1.8	14.7	324	24.5
8×1	2	0.6	0.2	1.8	15.3	361	18.1
8×1.5	2	0.8	0.2	1.8	17.7	479	12.1
8×2.5	2	0.8	0.2	1.8	19.2	590	7.41
8×4	2	1	0.2	1.8	22.4	819	4.61
8×6	2	1	0.2	1.8	24.3	1016	3.08
8×10	2	1	0.2	1.8	27.4	1409	1.83
9×0.5	2	0.6	0.2	1.8	14.7	312	36
9×0.75	2	0.6	0.2	1.8	15.5	357	24.5
9×1	2	0.6	0.2	1.8	16.2	398	18.1
9×1.5	2	0.8	0.2	1.8	18.8	529	12.1
9×2.5	2	0.8	0.2	1.8	20.4	656	7.41
9×4	2	1	0.2	1.8	24	912	4.61
9×6	2	1	0.2	1.8	26	1139	3.08
9×10	2	1	0.2	1.9	29.7	1597	1.83
10×0.5	2	0.6	0.2	1.8	15.1	329	36
10×0.75	2	0.6	0.2	1.8	15.9	376	24.5
10×1	2	0.6	0.2	1.8	16.7	420	18.1
10×1.5	2	0.8	0.2	1.8	19.5	563	12.1
10×2.5	2	0.8	0.2	1.8	21.1	700	7.41
10×4	2	1	0.2	1.8	24.9	979	4.61
10×6	2	1	0.2	1.8	27.1	1226	3.08
10×10	2	1	0.2	1.9	30.9	1721	1.83
12×0.5	2	0.6	0.2	1.8	15.4	348	36
12×0.75	2	0.6	0.2	1.8	16.3	402	24.5
12×1	2	0.6	0.2	1.8	17.1	453	18.1
12×1.5	2	0.8	0.2	1.8	20	615	12.1
12×2.5	2	0.8	0.2	1.8	21.7	772	7.41
12×4	2	1	0.2	1.8	25.6	1093	4.61
12×6	2	1	0.2	1.8	27.9	1376	3.08
14×0.5	2	0.6	0.2	1.8	16	377	36
14×0.75	2	0.6	0.2	1.8	16.9	437	24.5
14×1	2	0.6	0.2	1.8	17.7	495	18.1
14×1.5	2	0.8	0.2	1.8	20.8	677	12.1
14×2.5	2	0.8	0.2	1.8	22.6	857	7.41
14×4	2	1	0.2	1.8	26.8	1223	4.61
14×6	2	1	0.2	1.9	29.3	1562	3.08
16×0.5	2	0.6	0.2	1.8	16.6	409	36
16×0.75	2	0.6	0.2	1.8	17.6	477	24.5
16×1	2	0.6	0.2	1.8	18.4	542	18.1
16×1.5	2	0.8	0.2	1.8	21.7	745	12.1
16×2.5	2	0.8	0.2	1.8	23.7	949	7.41
16×4	2	1	0.2	1.8	28.1	1362	4.61
16×6	2	1	0.2	1.9	30.8	1744	3.08
19×0.5	2	0.6	0.2	1.8	17.2	446	36
19×0.75	2	0.6	0.2	1.8	18.3	524	24.5
19×1	2	0.6	0.2	1.8	19.2	599	18.1
19×1.5	2	0.8	0.2	1.8	22.7	832	12.1
19×2.5	2	0.8	0.2	1.8	24.8	1068	7.41
19×4	2	1	0.2	1.9	29.7	1559	4.61
19×6	2	1	0.2	2	32.9	2018	3.08
20×0.5	2	0.6	0.2	1.8	17.9	469	36
20×0.75	2	0.6	0.2	1.8	19	551	24.5
20×1	2	0.6	0.2	1.8	20	630	18.1
20×1.5	2	0.8	0.2	1.8	23.7	877	12.1
20×2.5	2	0.8	0.2	1.8	25.9	1126	7.41
20×4	2	1	0.2	1.9	31.2	1643	4.61
20×6	2	1	0.2	2	34.9	2165	3.08
21×0.5	2	0.6	0.2	1.8	17.9	478	36
21×0.75	2	0.6	0.2	1.8	19	563	24.5
21×1	2	0.6	0.2	1.8	20	645	18.1
21×1.5	2	0.8	0.2	1.8	23.7	900	12.1
21×2.5	2	0.8	0.2	1.8	25.9	1159	7.41
21×4	2	1	0.2	1.9	31.2	1697	4.61
21×6	2	1	0.2	2	34.9	2238	3.08
22×0.5	2	0.6	0.2	1.8	18.6	501	36
22×0.75	2	0.6	0.2	1.8	19.8	591	24.5
22×1	2	0.6	0.2	1.8	20.8	677	18.1
22×1.5	2	0.8	0.2	1.8	24.8	946	12.1
22×2.5	2	0.8	0.2	1.8	27.2	1218	7.41
22×4	2	1	0.2	2	33.6	1845	4.61
22×6	2	1	0.5	2.1	38.1	2723	3.08
24×0.5	2	0.6	0.2	1.8	19.3	538	36
24×0.75	2	0.6	0.2	1.8	20.6	635	24.5
24×1	2	0.6	0.2	1.8	21.6	728	18.1
24×1.5	2	0.8	0.2	1.8	25.8	1019	12.1
24×2.5	2	0.8	0.2	1.8	28.4	1316	7.41
24×4	2	1	0.2	2	35.1	1995	4.61
24×6	2	1	0.5	2.2	39.9	2957	3.08
27×0.5	2	0.6	0.2	1.8	19.6	566	36
27×0.75	2	0.6	0.2	1.8	20.9	673	24.5
27×1	2	0.6	0.2	1.8	22	775	18.1
27×1.5	2	0.8	0.2	1.8	26.3	1094	12.1
27×2.5	2	0.8	0.2	1.9	29.1	1433	7.41
27×4	2	1	0.2	2.1	36	2178	4.61
27×6	2	1	0.5	2.2	40.7	3190	3.08
30×0.5	2	0.6	0.2	1.8	20.2	603	36
30×0.75	2	0.6	0.2	1.8	21.5	720	24.5
30×1	2	0.6	0.2	1.8	22.7	832	18.1
30×1.5	2	0.8	0.2	1.8	27.1	1180	12.1
30×2.5	2	0.8	0.2	1.9	30	1553	7.41
30×4	2	1	0.5	2.1	38.4	2726	4.61
30×6	2	1	0.5	2.3	42.2	3473	3.08
33×0.5	2	0.6	0.2	1.8	20.8	645	36
33×0.75	2	0.6	0.2	1.8	22.2	772	24.5
33×1	2	0.6	0.2	1.8	23.4	894	18.1
33×1.5	2	0.8	0.2	1.8	28.1	1272	12.1
33×2.5	2	0.8	0.2	1.9	31.1	1679	7.41
33×4	2	1	0.5	2.2	39.9	2953	4.61
33×6	2	1	0.5	2.3	43.7	3749	3.08
37×0.5	2	0.6	0.2	1.8	21.4	690	36
37×0.75	2	0.6	0.2	1.8	22.9	831	24.5
37×1	2	0.6	0.2	1.8	24.1	966	18.1
37×1.5	2	0.8	0.2	1.9	29.2	1395	12.1
37×2.5	2	0.8	0.2	2	32.7	1858	7.41
37×4	2	1	0.5	2.2	41.3	3208	4.61
37×6	2	1	0.5	2.4	45.4	4110	3.08
44×0.5	2	0.6	0.2	1.8	23.5	800	36
44×0.75	2	0.6	0.2	1.8	25.2	965	24.5
44×1	2	0.6	0.2	1.8	26.6	1125	18.1
44×1.5	2	0.8	0.2	2	32.9	1656	12.1
44×2.5	2	0.8	0.5	2.1	38.1	2589	7.41
44×4	2	1	0.5	2.4	46.6	3831	4.61
44×6	2	1	0.5	2.5	51.1	4884	3.08
48×0.5	2	0.6	0.2	1.8	23.8	836	36
48×0.75	2	0.6	0.2	1.8	25.5	1015	24.5
48×1	2	0.6	0.2	1.8	27	1186	18.1
48×1.5	2	0.8	0.2	2	33.8	1791	12.1
48×2.5	2	0.8	0.5	2.2	38.8	2752	7.41
48×4	2	1	0.5	2.4	47.3	4061	4.61
48×6	2	1	0.5	2.6	52.1	5215	3.08
52×0.5	2	0.6	0.2	1.8	24.4	883	36
52×0.75	2	0.6	0.2	1.8	26.1	1074	24.5
52×1	2	0.6	0.2	1.8	27.6	1259	18.1
52×1.5	2	0.8	0.2	2	34.6	1903	12.1
52×2.5	2	0.8	0.5	2.2	39.8	2917	7.41
52×4	2	1	0.5	2.5	48.7	4338	4.61
52×6	2	1	0.5	2.6	53.4	5556	3.08
61×0.5	2	0.6	0.2	1.8	25.6	987	36
61×0.75	2	0.6	0.2	1.8	27.5	1208	24.5
61×1	2	0.6	0.2	1.9	29.3	1434	18.1
61×1.5	2	0.8	0.5	2.1	37.9	2526	12.1
61×2.5	2	0.8	0.5	2.3	42.1	3309	7.41
61×4	2	1	0.5	2.6	51.6	4940	4.61
61×6	2	1	0.5	2.7	56.6	6351	3.08

FAQ

What is the difference between CU/PVC/CTS/PVC and CU/PVC/PVC control cable?

CU/PVC/PVC is an unshielded control cable suitable for general control applications, while CU/PVC/CTS/PVC includes a copper tape screen to protect against electromagnetic interference and signal distortion.

Is CU/PVC/CTS/PVC cable suitable for instrumentation and automation systems?

Yes. The screened construction makes it suitable for PLC systems, measurement equipment, automation control circuits, and other applications where signal reliability is important.

How should the copper tape screen be connected during installation?

The copper tape screen is normally connected to the grounding system according to project requirements to provide effective shielding and improve electromagnetic compatibility.

Can CU/PVC/CTS/PVC control cable be installed together with power cables?

Yes. The copper screen helps reduce interference when the cable is installed near power circuits or equipment that generates electromagnetic noise.

What core configurations are available for CU/PVC/CTS/PVC control cable?

The cable is available with multiple core configurations, typically from 2 cores up to 61 cores, with conductor sizes selected according to control circuit requirements.

What is the minimum bending radius of CU/PVC/CTS/PVC cable?

The recommended minimum bending radius is generally around 10–12 times the overall cable diameter, depending on the cable construction and installation conditions.

Can this cable be used in areas with high electrical interference?

Yes. The copper tape screen provides enhanced protection in environments with electromagnetic noise, such as factories, substations, and industrial automation facilities.
