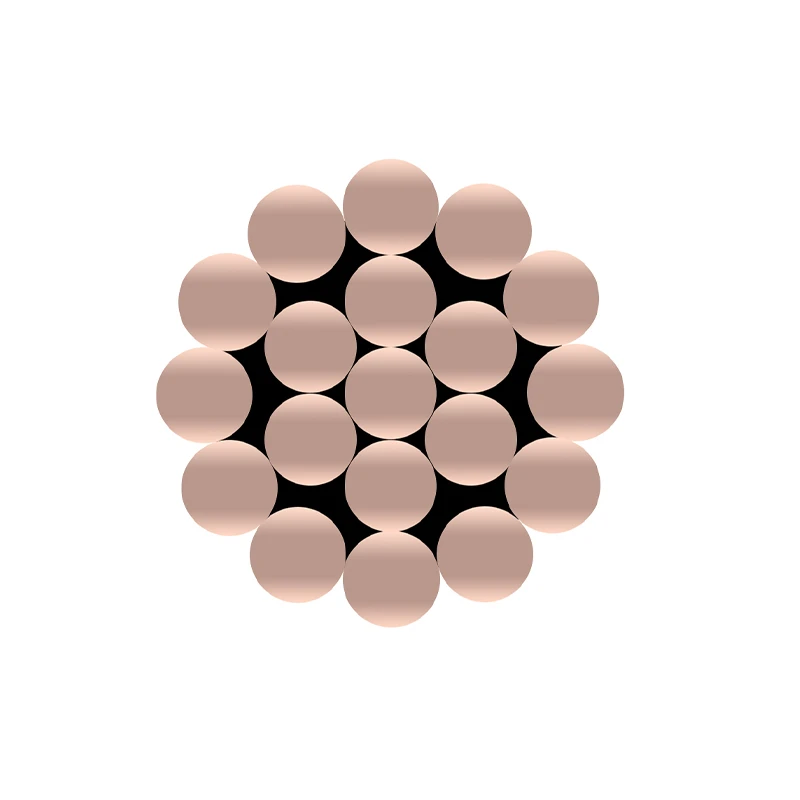

The BCC (Bare Copper Conductor) manufactured by Zhongdong Cable is used for electrical grounding, overhead power distribution, railway electrification, and industrial power applications where high electrical conductivity and reliable current carrying performance are required.
BCC is made of hard-drawn copper wires stranded concentrically to provide excellent conductivity, good mechanical strength, and long-term outdoor performance. Compared with aluminium conductors, copper conductors offer higher conductivity and better resistance to oxidation, making them suitable for applications requiring efficient power transmission and grounding reliability.
|
Type |
BCC (Bare Copper Conductor) |
Material |
Hard drawn copper |
|
Construction |
Concentric stranded copper wires |
Stranding |
7 / 19 / 37 / 61 strands (according to size requirements) |
|
Standard |
IEC 61089 / ASTM B8 / BS EN 50183 |
Application |
Grounding systems, overhead lines, electrical connections |
|
Installation |
Outdoor and industrial applications |
|
|

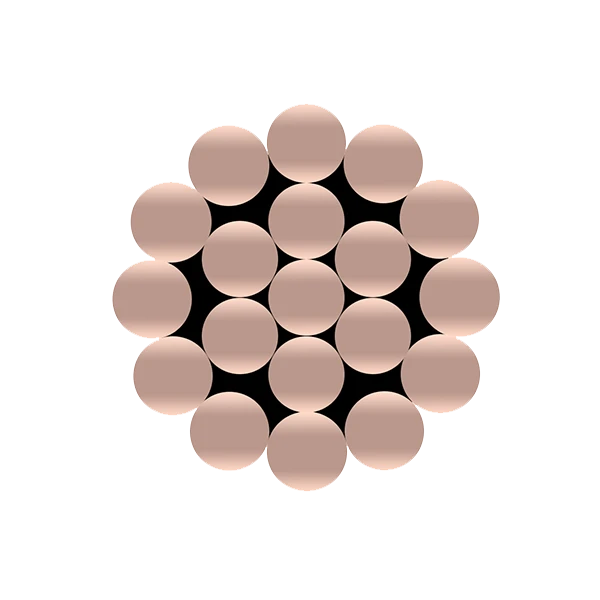

Conductor:
Stranded hard-drawn copper wires providing excellent electrical conductivity and mechanical strength.
Stranding:
Multiple copper wires are concentrically stranded to achieve required flexibility and current carrying capacity.
Surface:
Bare copper surface suitable for electrical connection and grounding applications.
BCC bare copper conductors are commonly used in applications requiring high conductivity and reliable electrical performance.
Typical applications include:
Electrical grounding and earthing systems
Substation grounding networks
Overhead power distribution lines
Railway electrification systems
Industrial power connections
Lightning protection systems
Bonding and electrical connection applications
BS7884, ASTM B8, NF C34-110, IEC 61089, DIN 48201-1
|
Size Designation |
Conductor |
No.of Wires |
Diameter |
Min.Rated Breaking Strength |
Weight |
Max.D.C. Resistance at 20℃ |
|||
|
Area |
mm |
kN |
kg/km |
Ω/km |
|||||
|
AWG |
mm² |
in² |
Wire |
Cond. |
Grade 40 |
Grade 40 |
Grade 40 |
|
|
|
HS |
DSA |
|
|||||||
|
19 No.5 |
318.71 |
0.494 |
19 |
4.62 |
23.11 |
216.66 |
76.68 |
2660.8 |
0.14423 |
|
19 No.6 |
252.71 |
0.3917 |
19 |
4.115 |
20.57 |
179.45 |
60.81 |
2110.2 |
0.18183 |
|
19 No.7 |
200.45 |
0.3107 |
19 |
3.665 |
18.31 |
148.29 |
48.23 |
1674.2 |
0.22937 |
|
19 No. 8 |
158.97 |
0.2464 |
19 |
3.264 |
16.31 |
122.46 |
38.27 |
1327.4 |
0.28896 |
|
19 No. 9 |
126.06 |
0.1954 |
19 |
2.906 |
14.53 |
100.86 |
30.33 |
1052.6 |
0.36452 |
|
7 No. 4 |
148.06 |
0.2295 |
7 |
5.189 |
15.57 |
96.15 |
35.61 |
1231.5 |
0.3093 |
|
7 No. 5 |
117.42 |
0.182 |
7 |
4.62 |
13.87 |
79.84 |
28.25 |
976.5 |
0.38978 |
|
7 No. 6 |
93.1 |
0.1443 |
7 |
4.115 |
12.34 |
66.1 |
22.41 |
774.3 |
0.4915 |
|
7 No.7 |
73.87 |
0.1145 |
7 |
3.665 |
11 |
54.63 |
17.76 |
614.5 |
0.6201 |
|
7 No. 8 |
58.56 |
0.09077 |
7 |
3.264 |
9.78 |
45.12 |
14.1 |
487.1 |
0.7812 |
|
7 No. 9 |
46.44 |
0.07198 |
7 |
2.906 |
8.71 |
37.16 |
11.18 |
386.2 |
0.9859 |
|
7 No. 10 |
36.83 |
0.05708 |
7 |
2.588 |
7.77 |
30.73 |
8.87 |
306.3 |
1.2422 |
|
3 No. 5 |
50.32 |
0.078 |
3 |
4.62 |
9.96 |
36.1 |
12.78 |
417.7 |
0.9082 |
|
3 No. 6 |
39.9 |
0.06185 |
3 |
4.115 |
8.86 |
29.91 |
10.14 |
331.3 |
1.1447 |
|
3 No. 7 |
31.65 |
0.04905 |
3 |
3.665 |
7.9 |
24.71 |
8.04 |
262.7 |
1.444 |
|
3 N0. 8 |
25.1 |
0.0389 |
3 |
3.264 |
7.04 |
20.41 |
6.38 |
208.3 |
1.8193 |
|
3 No. 9 |
19.9 |
0.03085 |
3 |
2.906 |
6.27 |
16.81 |
5.05 |
165.2 |
2.2957 |
|
3 No. 10 |
15.78 |
0.02446 |
3 |
2.588 |
5.59 |
13.9 |
4.01 |
131 |
2.8929 |
|
3 No. 12 |
9.93 |
0.01539 |
3 |
2.052 |
4.42 |
7.32 |
2.55 |
82.4 |
4.5573 |
Technical Data(ASTMB228)
|
Size Designation |
Conductor |
No.of wires |
Diameter |
Min.Rated Breaking Strength kN |
Weight |
Max. Resistance at 20℃ |
||||
|
Area |
mm |
kg/km |
Ω/km |
|||||||
|
AWG |
mm² |
in² |
Wire |
Cond. |
Grade 30HS |
Grade 30 EHS |
Grade 30 DSA |
Grade 30 |
|
|
|
19 No.5 |
318.71 |
0.494 |
19 |
4.62 |
23.11 |
239.64 |
288.54 |
86.28 |
2634 |
0.19227 |
|
19 No.6 |
252.71 |
0.3917 |
19 |
4.115 |
20.57 |
197.68 |
239.51 |
68.41 |
2087.9 |
0.2424 |
|
19 No.7 |
200.45 |
0.3107 |
19 |
3.665 |
18.31 |
162.74 |
197.72 |
54.23 |
1656.3 |
0.30576 |
|
19 No. 8 |
158.97 |
0.2464 |
19 |
3.264 |
16.31 |
133.98 |
162.65 |
43.06 |
1313.6 |
0.3852 |
|
19 No. 9 |
126.06 |
0.1954 |
19 |
2.906 |
14.53 |
109.93 |
132.02 |
34.12 |
1041.7 |
0.4862 |
|
7 No. 4 |
148.06 |
0.2295 |
7 |
5.189 |
15.57 |
106.86 |
126.87 |
40.07 |
1218.7 |
0.4124 |
|
7 No. 5 |
117.42 |
0.182 |
7 |
4.62 |
13.87 |
88.28 |
106.28 |
31.78 |
966.4 |
0.5197 |
|
7 No. 6 |
93.1 |
0.1443 |
7 |
4.115 |
12.34 |
72.86 |
88.24 |
25.21 |
766.3 |
0.6552 |
|
7 No.7 |
73.87 |
0.1145 |
7 |
3.665 |
11 |
59.97 |
72.86 |
19.99 |
608.1 |
0.8268 |
|
7 No. 8 |
58.56 |
0.09077 |
7 |
3.264 |
9.78 |
49.34 |
59.92 |
15.86 |
482 |
1.0414 |
|
7 No. 9 |
46.44 |
0.07198 |
7 |
2.906 |
8.71 |
40.51 |
48.63 |
12.57 |
382.2 |
1.3144 |
|
7 No. 10 |
36.83 |
0.05708 |
7 |
2.588 |
7.77 |
33.48 |
39.69 |
9.97 |
303.1 |
1.6559 |
|
3 No. 5 |
50.32 |
0.078 |
3 |
4.62 |
9.96 |
39.94 |
48.1 |
14.38 |
413.4 |
1.2104 |
|
3 No. 6 |
39.9 |
0.06185 |
3 |
4.115 |
8.86 |
32.95 |
39.92 |
11.41 |
327.8 |
1.526 |
|
3 No. 7 |
31.65 |
0.04905 |
3 |
3.665 |
7.9 |
27.12 |
32.95 |
9.04 |
260 |
1.925 |
|
3 N0. 8 |
25.1 |
0.0389 |
3 |
3.264 |
7.04 |
22.33 |
27.11 |
7.17 |
206.1 |
2.4253 |
|
3 No. 9 |
19.9 |
0.03085 |
3 |
2.906 |
6.27 |
18.32 |
22 |
5.69 |
163.5 |
3.0605 |
|
3 No. 10 |
15.78 |
0.02446 |
3 |
2.588 |
5.59 |
15.14 |
17.95 |
4.51 |
129.6 |
3.855 |
|
3 No. 12 |
9.93 |
0.01539 |
3 |
2.052 |
4.42 |
7.64 |
11.4 |
2.87 |
81.6 |
6.073 |
BCC provides higher electrical conductivity and better grounding performance, making it suitable for applications where low resistance and reliable current flow are required.
BCC is made of copper and offers higher conductivity, while AAC is made of aluminium and provides a lighter and more economical solution for overhead distribution lines.
It is widely used for grounding systems, substations, railway electrification, lightning protection, and industrial electrical connections.
Yes, but due to the higher material cost and weight, copper conductors are usually selected for specific applications requiring maximum conductivity rather than general long-span transmission lines.
BCC can be supplied in various cross-sections and strand configurations according to project requirements and applicable standards.
