The 0.6/1 kV CU/XLPE/AWA/PVC Single Core Power Cable, manufactured by Zhongdong Cable, is developed for single-core low-voltage installations where conventional steel armour is not suitable. By using aluminium wire armour (AWA), the cable provides mechanical protection while avoiding the magnetic effects associated with steel armouring in AC systems. Combined with XLPE insulation and a PVC outer sheath, it offers a durable solution for fixed power distribution applications manufactured to IEC 60502-1.
|
Type |
Armoured Low Voltage Power Cable |
Voltage |
0.6/1 kV |
|
Cores |
Single Core |
Conductor |
Stranded Copper Conductor(IEC 60228) |
|
Insulation |
XLPE |
Sheath |
PVC ST2 |
|
Armour |
Aluminium Wire Armour (AWA) |
Conductor Sizes |
16 mm²- 630 mm² |
|
Standards |
IEC 60502-1 / DIN VDE 0276-603 |
Cross-Ref |
YJV62 |

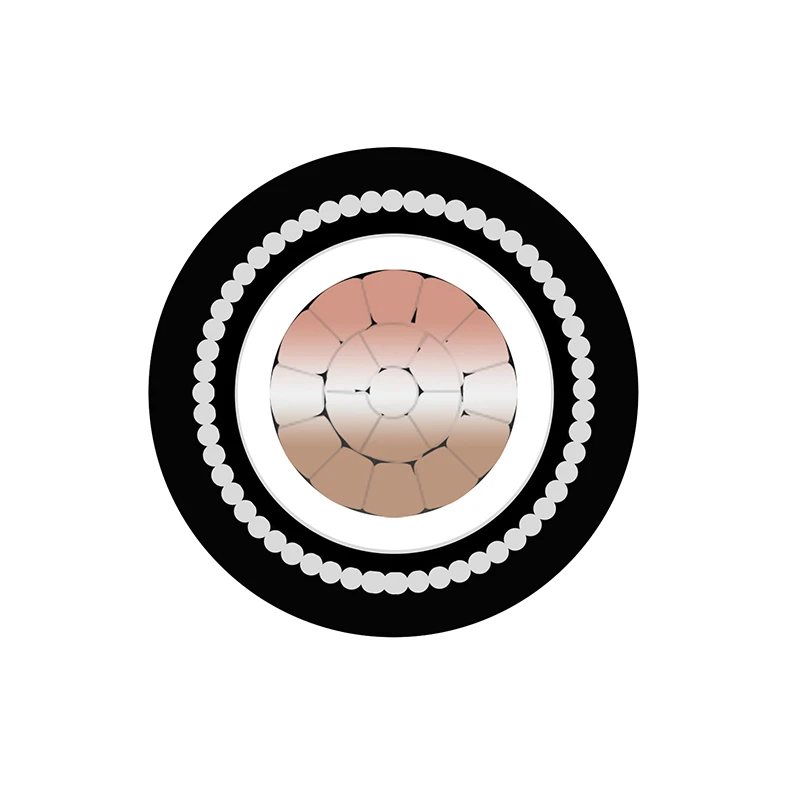

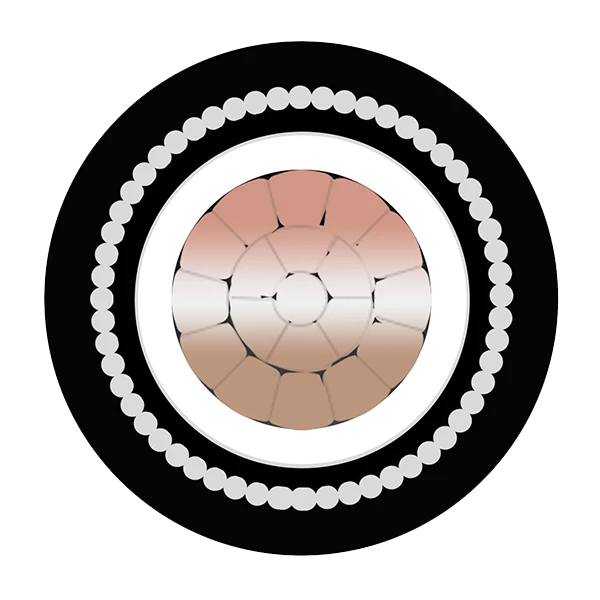

Conductor: Stranded copper conductor complying with IEC 60228 Class 2.
Insulation: Cross-linked polyethylene (XLPE) insulation rated for 90°C continuous operation.
Armour: Non-magnetic aluminium wire armour (AWA) providing mechanical protection for single-core AC applications.
Outer Sheath: PVC ST2 outer sheath resistant to abrasion, moisture, and normal environmental conditions.
Single-core AWA cables are often chosen when steel wire armour is not suitable for AC systems. They are widely used for high-current feeder circuits where reliable mechanical protection is needed without introducing magnetic losses. Typical installations include substations, switchgear rooms, power generation facilities, and large building distribution systems.
Typical applications include:
Transformer to switchboard connections
Main feeder circuits
Power generation facilities
Cable trays and underground cable routes
IEC: IEC 60502-1, IEC 60228
VDE / EN: DIN VDE 0276-603
BS: BS 7889
AS/NZS: AS/NZS 5000.1
ASTM (US): ASTM B3, ASTM B8
|
Specification |
Outer diameter of conductor |
Nominal thickness of insulation |
Diameter of aluminium wire |
Nominal sheath thickness |
Approx.outer diameter of cable |
Approx. Weight of cable |
|
|
CU |
AL |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
kg/km |
|
1×4 |
2.24 |
0.7 |
1.25 |
1.8 |
16.9 |
228 |
204 |
|
1×6 |
2.76 |
0.7 |
1.25 |
1.8 |
16.9 |
258 |
222 |
|
1×10 |
3.8 |
0.7 |
1.25 |
1.8 |
16.9 |
321 |
261 |
|
1×16 |
4.8 |
0.7 |
1.25 |
1.8 |
17 |
357 |
255 |
|
1×25 |
6 |
0.9 |
1.25 |
1.8 |
17.4 |
482 |
323 |
|
1×35 |
7 |
0.9 |
1.25 |
1.8 |
18.4 |
597 |
375 |
|
1×50 |
8.4 |
1 |
1.6 |
1.8 |
19.6 |
788 |
487 |
|
1×70 |
10 |
1.1 |
1.6 |
1.8 |
21.5 |
1032 |
598 |
|
1×95 |
11.5 |
1.1 |
1.6 |
1.8 |
23.1 |
1319 |
718 |
|
1×120 |
13 |
1.2 |
2 |
1.8 |
24.7 |
1657 |
892 |
|
1×150 |
14.5 |
1.4 |
2 |
1.8 |
26.7 |
1960 |
1048 |
|
1×185 |
16.2 |
1.6 |
2 |
1.8 |
28.8 |
2375 |
1205 |
|
1×240 |
18.4 |
1.7 |
2 |
1.8 |
31.6 |
3004 |
1467 |
|
1×300 |
20.5 |
1.8 |
2 |
1.9 |
34.2 |
3655 |
1722 |
|
1×400 |
23.5 |
2 |
2.5 |
2 |
39.3 |
4725 |
2245 |
|
1×500 |
26.5 |
2.2 |
2.5 |
2.2 |
44.3 |
5837 |
2686 |
|
1×630 |
30 |
2.4 |
2.5 |
2.3 |
50.4 |
7326 |
3271 |
AWA is non-magnetic, making it suitable for single-core AC power cables.
Yes. It is commonly used for high-current single-core power distribution.
Yes. Proper cable spacing and installation methods should follow the project design or local electrical standards.
No. A separate protective earth conductor should be provided where required by local regulations.
