Manufactured by Zhongdong Cable, the 0.6/1 kV AL/XLPE/AWA/PVC Single Core Power Cable is designed for single-core AC power systems where low cable weight and non-magnetic armouring are important. The aluminum conductor helps reduce the overall cable weight, making transportation and installation more efficient on long cable routes, while the aluminium wire armour (AWA) provides reliable mechanical protection without the magnetic effects associated with steel armour. Manufactured in accordance with IEC 60502-1, the cable is well suited for fixed low-voltage power installations.
|
Type |
Armoured Low Voltage Power Cable |
Voltage |
0.6/1 kV |
|
Cores |
Single Core |
Conductor |
Stranded Aluminum Conductor(IEC 60228) |
|
Insulation |
XLPE |
Sheath |
PVC ST2 |
|
Armour |
Aluminium Wire Armour (AWA) |
Conductor Sizes |
16 mm²- 630 mm² |
|
Standards |
IEC 60502-1 / DIN VDE 0276-603 |
Cross-Ref |
YJLV62 |

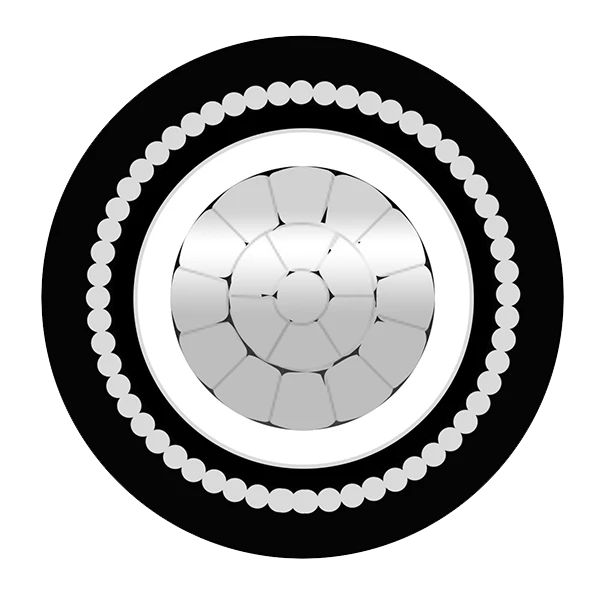

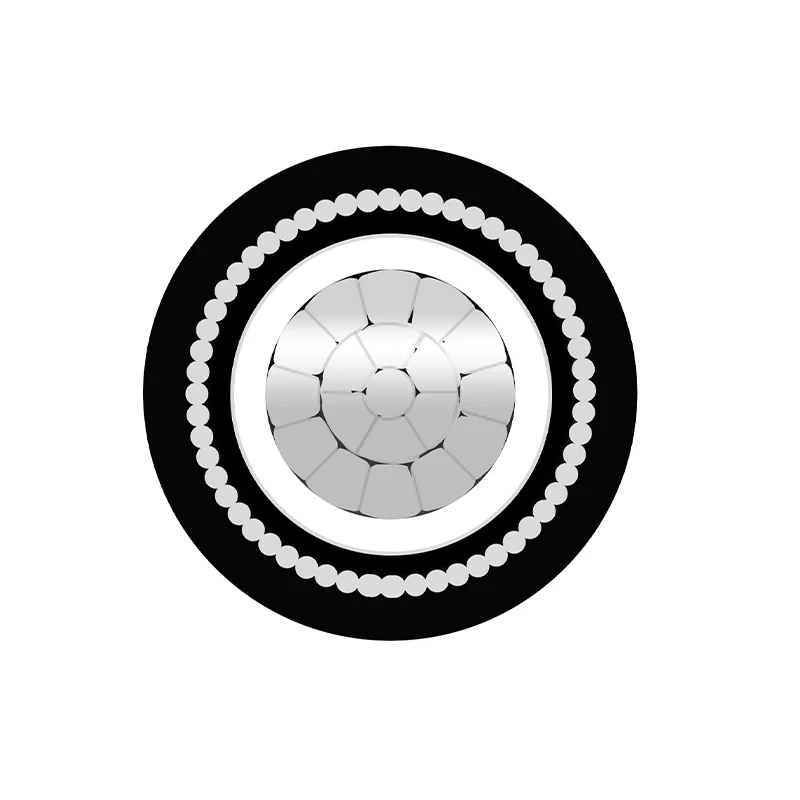

Conductor: Stranded aluminum conductor complying with IEC 60228 Class 2.
Insulation: XLPE insulation suitable for continuous operating temperatures up to 90°C.
Armour: Aluminium wire armour (AWA) providing reliable mechanical protection for single-core AC power cables.
Outer Sheath: PVC ST2 outer sheath for protection against moisture, abrasion, and normal installation conditions.
AL/XLPE/AWA/PVC Single Core Power Cables are commonly specified for single-core AC power systems where non-magnetic armouring is required. The lightweight aluminum conductor helps simplify handling on long cable runs, while the AWA construction provides mechanical protection without affecting the cable's performance in AC installations.
Typical applications include:
Substation feeder circuits
Power plant distribution systems
Large building main power supplies
Cable routes installed on trays, cleats, or in underground ducts
IEC: IEC 60502-1, IEC 60228
VDE / EN: DIN VDE 0276-603
BS: BS 7889
AS/NZS: AS/NZS 5000.1
ASTM (US): ASTM B230, ASTM B231
|
Specification |
Outer diameter of conductor |
Nominal thickness of insulation |
Diameter of aluminium wire |
Nominal sheath thickness |
Approx.outer diameter of cable |
Approx. Weight of cable |
|
|
CU |
AL |
||||||
|
mm2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
kg/km |
|
1×4 |
2.24 |
0.7 |
1.25 |
1.8 |
16.9 |
228 |
204 |
|
1×6 |
2.76 |
0.7 |
1.25 |
1.8 |
16.9 |
258 |
222 |
|
1×10 |
3.8 |
0.7 |
1.25 |
1.8 |
16.9 |
321 |
261 |
|
1×16 |
4.8 |
0.7 |
1.25 |
1.8 |
17 |
357 |
255 |
|
1×25 |
6 |
0.9 |
1.25 |
1.8 |
17.4 |
482 |
323 |
|
1×35 |
7 |
0.9 |
1.25 |
1.8 |
18.4 |
597 |
375 |
|
8.4 |
1 |
1.6 |
1.8 |
19.6 |
788 |
487 |
|
|
10 |
1.1 |
1.6 |
1.8 |
21.5 |
1032 |
598 |
|
|
11.5 |
1.1 |
1.6 |
1.8 |
23.1 |
1319 |
718 |
|
|
13 |
1.2 |
2 |
1.8 |
24.7 |
1657 |
892 |
|
|
14.5 |
1.4 |
2 |
1.8 |
26.7 |
1960 |
1048 |
|
|
16.2 |
1.6 |
2 |
1.8 |
28.8 |
2375 |
1205 |
|
|
18.4 |
1.7 |
2 |
1.8 |
31.6 |
3004 |
1467 |
|
|
20.5 |
1.8 |
2 |
1.9 |
34.2 |
3655 |
1722 |
|
|
23.5 |
2 |
2.5 |
2 |
39.3 |
4725 |
2245 |
|
|
26.5 |
2.2 |
2.5 |
2.2 |
44.3 |
5837 |
2686 |
|
|
30 |
2.4 |
2.5 |
2.3 |
50.4 |
7326 |
3271 |
|
Aluminium wire armour is non-magnetic, making it suitable for single-core AC power cables.
Yes. It is suitable for installation on cable cleats, trays, and other fixed support systems.
Yes. It is designed for fixed low-voltage power distribution systems.
No. When correctly sized, it provides reliable performance for low-voltage power distribution.
