The CU/XLPE/CWS/AWA/PVC single-core power cable 18/30kV manufactured by Zhongdong Cable is designed in accordance with IEC 60502-2 and IEC 60228 (Class 1 or Class 2 copper conductor). It features a copper conductor, XLPE insulation, copper wire screen (CWS), aluminium wire armour (AWA), and PVC outer sheath, providing stable electrical performance and mechanical protection for medium-voltage distribution systems.
The aluminium wire armour offers additional protection against external mechanical stress while maintaining a lightweight, non-magnetic structure, making the cable suitable for single-core AC installations where steel armour is not preferred.
|
Type |
Aluminium Wire Armoured Medium Voltage Power Cable |
Voltage Rating |
18/30 kV |
|
Cores |
Single Core |
Conductor |
Copper, Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE |
Screen |
Copper Wire Screen (CWS) |
|
Armour |
Aluminium Wire Armour (AWA) |
Sheath |
PVC ST2 |
|
Standards |
IEC 60502-2 / IEC 60228 |
Cross Reference |
YJSV72 / N2XSRY Equivalent |

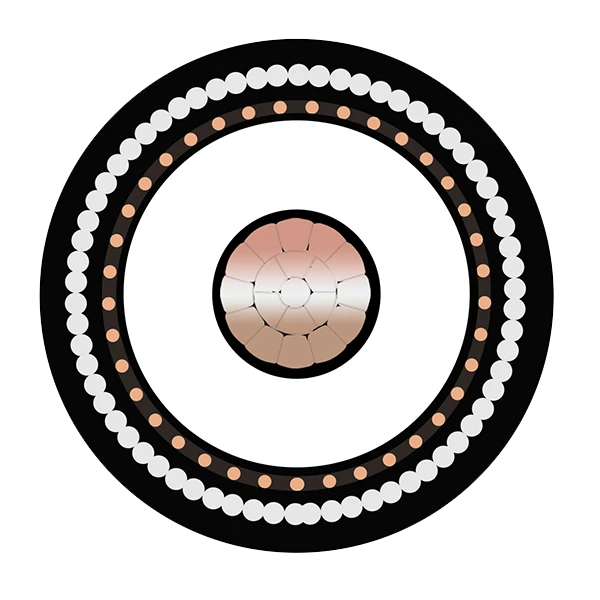

Conductor: Plain annealed copper conductor
Conductor Screen: Semi-conductive layer for electric field control
Insulation: XLPE with stable thermal and dielectric performance
Insulation Screen: Semi-conductive layer for uniform field distribution
Metallic Screen: Copper Wire screen for grounding and fault current path
Armour: Aluminium wire armour (AWA) for mechanical protection
Outer Sheath: PVC (ST2), resistant to moisture and abrasion

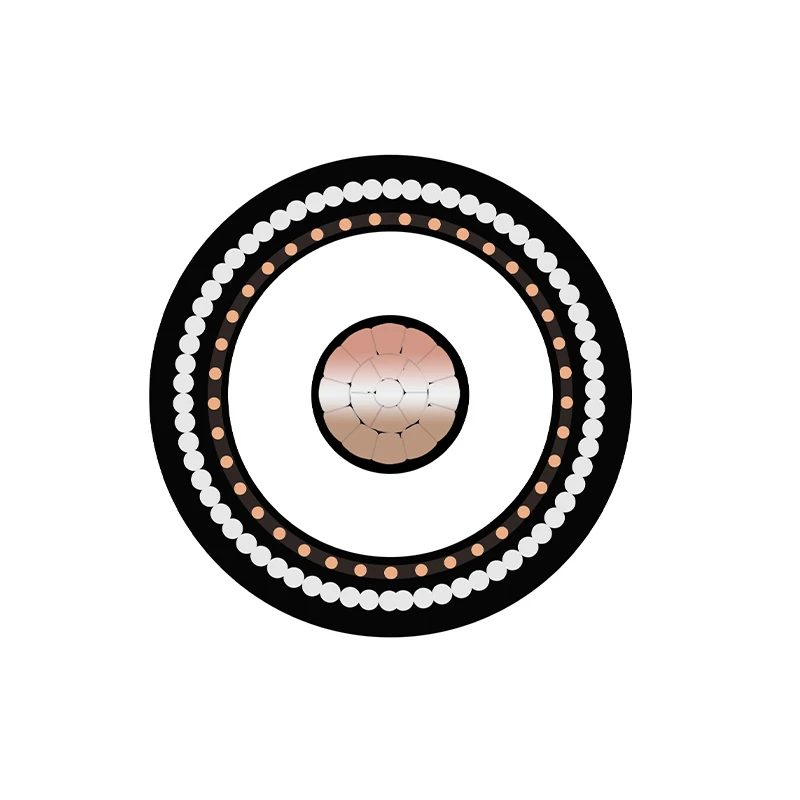

Design: Single-core aluminium wire armoured medium voltage cable (18/30kV)
The CU/XLPE/CWS/AWA/PVC single-core cable 18/30kV is designed for medium-voltage networks requiring higher insulation levels, reliable grounding, and mechanical protection.
Typical applications:
Underground MV distribution networks
Industrial power supply systems
Utility sub-transmission projects
Renewable energy collection systems
Power plant auxiliary and feeder connections
Substation interconnection cables
Cable tunnels, ducts, and protected underground routes
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
AWA provides mechanical protection while avoiding the magnetic losses that can occur with steel armour in single-core AC cable systems.
The CWS provides a low-resistance grounding path and helps control the electric field around the XLPE insulation.
Yes. The AWA layer improves resistance to external mechanical forces and is suitable for underground installation with proper cable laying conditions.
The recommended minimum bending radius is generally 15 × overall cable diameter during installation and 12 × diameter for fixed installation.
The XLPE insulation allows continuous conductor operation up to 90°C, with a short-circuit temperature of 250°C for 5 seconds.
Correct cable arrangement, phase spacing, and suitable fixing methods are important to ensure heat dissipation and long-term operating reliability.
Yes. The AWA layer provides mechanical protection for underground applications when installed with proper trench preparation.
Cable arrangement and phase spacing should be considered carefully to reduce heating effects and ensure stable operation.
