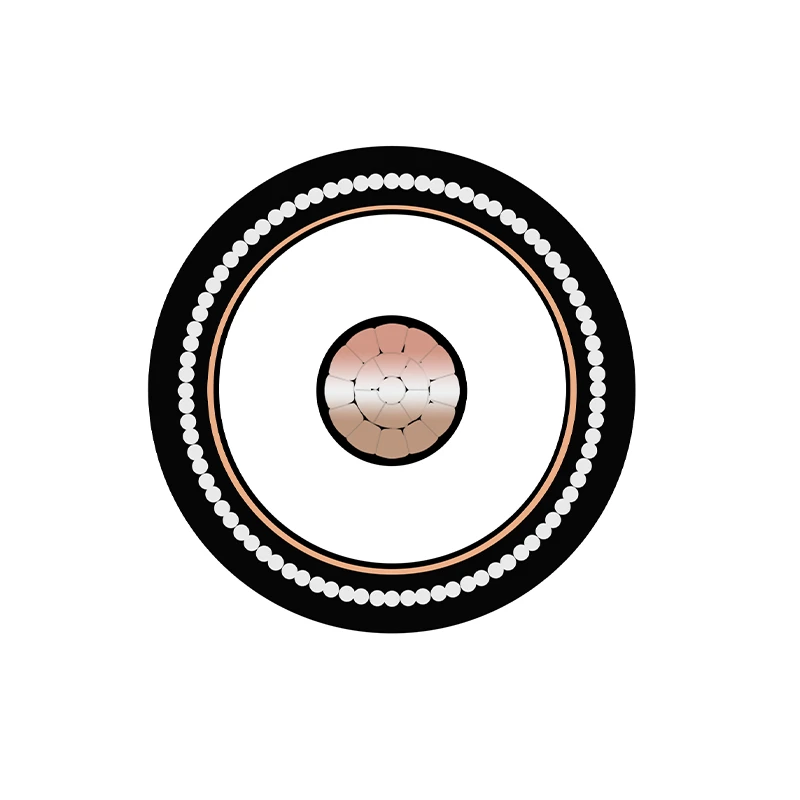

The CU/XLPE/CTS/AWA/PVC single-core power cable 8.7/15kV manufactured by Zhongdong Cable is designed in accordance with IEC 60502-2 and IEC 60228 (Class 1 or Class 2 copper conductor). It features copper conductor, XLPE insulation, copper tape screen (CTS), aluminium wire armour (AWA), and PVC outer sheath, providing reliable electrical performance with additional mechanical protection for medium-voltage applications.
The aluminium wire armour offers good mechanical protection while maintaining a lighter structure compared with steel armoured cables, making it suitable for underground installations where weight control and protection are both important.
|
Type |
Aluminium Wire Armoured Medium Voltage Power Cable |
Voltage Rating |
8.7/15 kV |
|
Cores |
Single Core |
Conductor |
Copper, Class 1 / Class 2 (IEC 60228) |
|
Insulation |
XLPE |
Screen |
Copper Tape Screen (CTS) |
|
Armour |
Aluminium Wire Armour (AWA) |
Sheath |
PVC ST2 |
|
Standards |
IEC 60502-2 / IEC 60228 |
Cross Reference |
YJV72 / N2XSRY Equivalent |

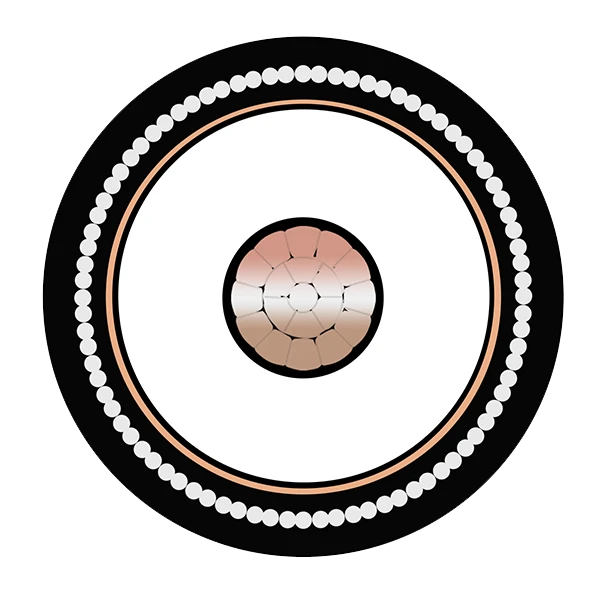

Conductor: Plain annealed copper conductor
Conductor Screen: Semi-conductive layer for electric field control
Insulation: XLPE with stable thermal and dielectric performance
Insulation Screen: Semi-conductive layer for uniform field distribution
Metallic Screen: Copper Tape screen for grounding and fault current path
Armour: Aluminium wire armour (AWA) for mechanical protection
Outer Sheath: PVC (ST2), resistant to moisture and abrasion
Design: Single-core aluminium wire armoured medium voltage cable (8.7/15kV)
The CU/XLPE/CTS/AWA/PVC single-core cable 8.7/15kV is suitable for medium-voltage systems requiring electrical shielding and mechanical protection with reduced cable weight.
Typical applications:
Underground MV distribution networks
Power plant auxiliary systems
Industrial electrical installations
Renewable energy collection systems
Substation feeder connections
Cable trench and duct installations
Projects requiring non-magnetic armouring solutions
IEC: IEC 60502-2 / IEC 60228 / IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034
DIN VDE: DIN VDE 0276-620
BS: BS 6622 / BS 7835
NF: NF C 33-220
AS/NZS: AS/NZS 1429.1
ASTM: ASTM B3 / ASTM B8
|
No. of Cores and Nominal Cross Section (mm) |
Nominal Insulation Thickness (mm) |
Nominal Aluminum Wire Diameter (mm) |
Nominal Sheath Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx. Weight Cu (kg/km) |
Approx. Weight Al (kg/km) |
Max. D.C. Resistance of Conductor at 20℃ Cu (Ω/km) |
Max. D.C. Resistance of Conductor at 20℃ Al (Ω/km) |
|
1×25 |
4.5 |
1.6 |
1.9 |
29.7 |
1225 |
1072 |
0.727 |
1.2 |
|
1×35 |
4.5 |
1.6 |
1.9 |
30.7 |
1355 |
1144 |
0.524 |
0.868 |
|
1×50 |
4.5 |
1.6 |
1.9 |
31.8 |
1511 |
1225 |
0.387 |
0.641 |
|
1×70 |
4.5 |
1.6 |
2 |
33.7 |
1785 |
1371 |
0.268 |
0.443 |
|
1×95 |
4.5 |
2 |
2.1 |
36.5 |
2201 |
1627 |
0.193 |
0.32 |
|
1×120 |
4.5 |
2 |
2.1 |
37.7 |
2477 |
1751 |
0.153 |
0.253 |
|
1×150 |
4.5 |
2 |
2.2 |
39.4 |
2895 |
1990 |
0.124 |
0.206 |
|
1×185 |
4.5 |
2 |
2.2 |
41.1 |
3312 |
2175 |
0.0991 |
0.164 |
|
1×240 |
4.5 |
2 |
2.3 |
43.6 |
3932 |
2458 |
0.0754 |
0.125 |
|
1×300 |
4.5 |
2.5 |
2.4 |
47.2 |
4765 |
2919 |
0.0601 |
0.1 |
|
1×400 |
4.5 |
2.5 |
2.5 |
50.1 |
5784 |
3408 |
0.047 |
0.0778 |
|
1×500 |
4.5 |
2.5 |
2.6 |
54 |
6947 |
3932 |
0.0366 |
0.0605 |
|
1×630 |
4.5 |
2.5 |
2.7 |
57.9 |
8463 |
4551 |
0.0283 |
0.0469 |
Aluminium wire armour provides mechanical protection with lower weight and avoids magnetic losses, which is especially suitable for single-core AC cables.
Yes, but proper spacing and installation methods should be considered to maintain current carrying capacity and thermal performance.
The recommended minimum bending radius is generally 15 × overall cable diameter during installation and 12 × diameter for fixed installation.
The XLPE insulation allows continuous conductor operation up to 90°C, with short-circuit temperature up to 250°C for 5 seconds.
Yes. The AWA layer provides mechanical protection for underground applications when installed with proper trench preparation.
Cable arrangement and phase spacing should be considered carefully to reduce heating effects and ensure stable operation.
