The ACSR Bare Conductor (Aluminium Conductor Steel Reinforced) manufactured by Zhongdong Cable is designed for overhead transmission and distribution networks requiring high mechanical strength, long span capability, and reliable electrical performance.

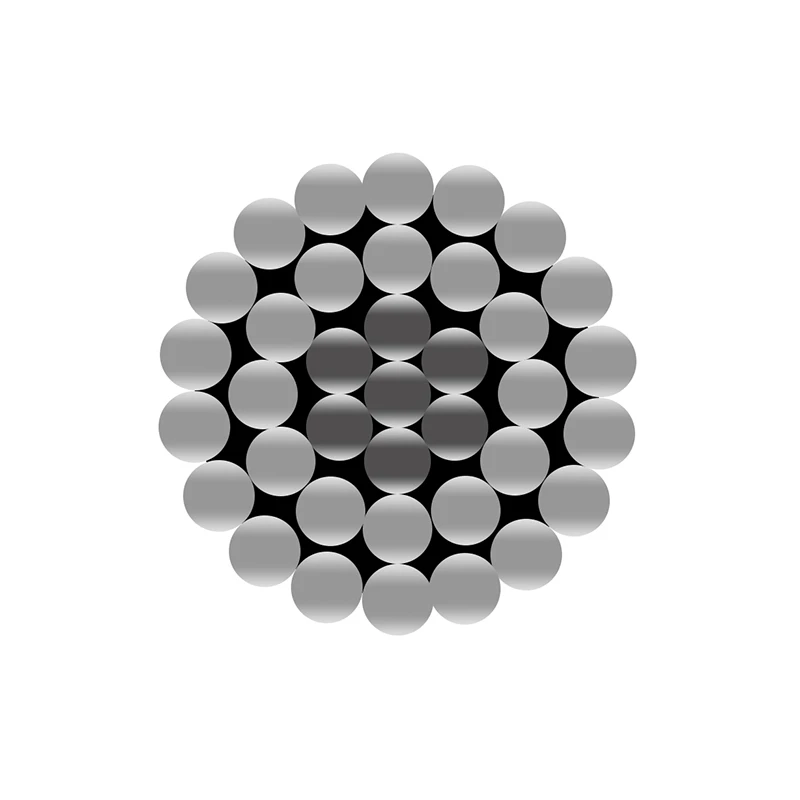

ACSR consists of stranded aluminium wires surrounding a galvanized steel core, combining the excellent conductivity of aluminium with the high tensile strength of steel. This structure makes ACSR suitable for long-distance overhead transmission lines, large-span crossings, and areas exposed to high mechanical loads such as strong wind or heavy ice conditions.
|
Type |
ACSR (Aluminium Conductor Steel Reinforced) |
Conductor Material |
Aluminium strands + galvanized steel core |
|
Construction |
Concentric stranded aluminium wires around steel core |
Stranding |
6/1, 26/7, 30/7, 54/7 and other configurations |
|
Steel Core |
Galvanized steel wire |
Standards |
IEC 61089 / ASTM B232 / EN 50182 |
|
Application |
Overhead transmission and distribution lines |
Installation |
Outdoor aerial networks |
|
Operating Temperature |
Up to 75°C (standard design) |
|
|

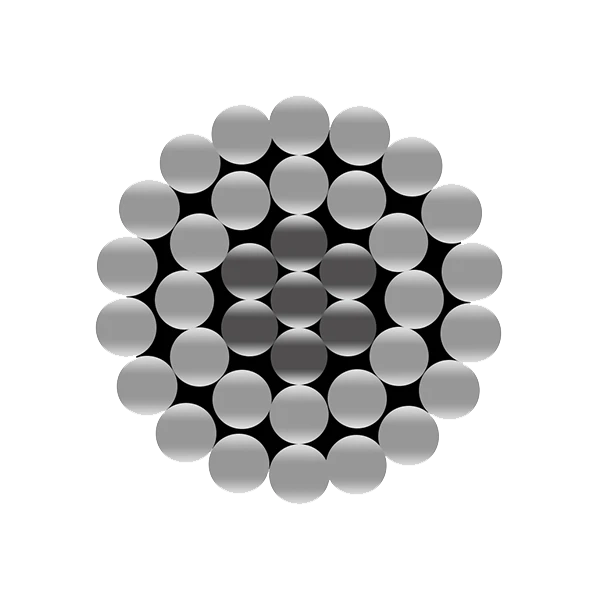

Steel Core:
Galvanized steel wires provide high tensile strength and mechanical support for long-span applications.
Aluminium Strands:
Hard-drawn aluminium wires are stranded around the steel core to provide electrical conductivity.
Concentric Stranding:
Aluminium and steel wires are arranged in concentric layers to achieve the required electrical and mechanical performance.
Surface:
Bare conductor design suitable for overhead line installation.
ACSR conductors are widely used in overhead power networks where high tensile strength and long-distance transmission capability are required.
Typical applications include:
High-voltage overhead transmission lines
Medium and high-voltage distribution networks
Long-span river and valley crossings
Power transmission corridors
Renewable energy grid connection lines
Areas with high wind or mechanical loading requirements
Utility grid expansion projects
IEC 61089
ASTM B 232
BS EN 50182
BS 215-2
AS 3607
GB/T 1179
GOST 839
|
Code Number |
Steel Ratio |
Aluminium mm2 |
Steel mm2 |
Total mm2 |
Aluminium mm |
Steel mm |
Core mm |
Conductor mm |
Weight kg/km |
Breaking Load |
Max.DC Resistance |
Current |
|
at 20℃ |
Rating |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
KN |
Ohm/km |
A |
|
16 |
17 |
16 |
2.67 |
18.7 |
6/1.84 |
1/1.84 |
1.84 |
5.53 |
64.6 |
6.08 |
1.7934 |
85 |
|
25 |
17 |
25 |
4.17 |
29.2 |
6/2.30 |
1/2.30 |
2.3 |
6.91 |
100.9 |
9.13 |
1.1478 |
112 |
|
40 |
17 |
40 |
6.67 |
46.7 |
6/2.91 |
1/2.91 |
2.91 |
8.74 |
161.5 |
14.4 |
0.7174 |
150 |
|
63 |
17 |
63 |
10.5 |
73.5 |
6/3.66 |
1/3.66 |
3.66 |
11 |
254.4 |
21.63 |
0.4555 |
198 |
|
100 |
17 |
100 |
16.7 |
117 |
6/4.61 |
1/4.61 |
4.61 |
13.8 |
403.8 |
34.33 |
0.2869 |
263 |
|
125 |
6 |
125 |
6.94 |
132 |
18/2.97 |
1/2.97 |
2.97 |
14.9 |
397.9 |
29.17 |
0.2304 |
299 |
|
160 |
6 |
160 |
8.89 |
169 |
18/3.36 |
1/3.36 |
3.36 |
16.8 |
509.3 |
36.18 |
0.18 |
347 |
|
200 |
6 |
200 |
11.1 |
211 |
18/3.76 |
1/3.76 |
3.76 |
18.8 |
636.7 |
44.22 |
0.144 |
398 |
|
250 |
10 |
250 |
24.6 |
275 |
22/3.80 |
7/2.11 |
6.34 |
21.6 |
880.6 |
68.72 |
0.1154 |
458 |
|
315 |
7 |
315 |
21.8 |
337 |
45/2.99 |
7/1.99 |
5.97 |
23.9 |
1039.6 |
79.03 |
0.0917 |
526 |
|
400 |
7 |
400 |
27.7 |
428 |
45/3.36 |
7/2.24 |
6.73 |
26.9 |
1320.1 |
98.36 |
0.0722 |
607 |
|
450 |
7 |
450 |
31.1 |
481 |
45/3.57 |
7/2.38 |
7.14 |
28.5 |
1485.2 |
107.47 |
0.0642 |
651 |
|
500 |
7 |
500 |
34.6 |
535 |
45/3.76 |
7/2.51 |
7.52 |
30.1 |
1650.2 |
119.41 |
0.0578 |
693 |
|
560 |
7 |
560 |
38.7 |
599 |
45/3.98 |
7/2.65 |
7.96 |
31.8 |
1848.2 |
133.74 |
0.0516 |
741 |
|
630 |
7 |
630 |
43.6 |
674 |
45/4.22 |
7/2.81 |
8.44 |
33.8 |
2079.2 |
150.45 |
0.0459 |
794 |
|
710 |
7 |
710 |
49.1 |
759 |
45/4.48 |
7/2.99 |
8.96 |
35.9 |
2343.2 |
169.56 |
0.0407 |
851 |
|
800 |
4 |
800 |
34.6 |
835 |
72/3.76 |
7/2.51 |
7.52 |
37.6 |
2480.2 |
167.41 |
0.0361 |
910 |
|
800 |
8 |
800 |
66.7 |
867 |
84/3.48 |
7/3.48 |
10.4 |
38.3 |
2732.7 |
205.33 |
0.0362 |
912 |
|
900 |
4 |
900 |
39.9 |
939 |
72/3.99 |
7/2.66 |
7.98 |
39.9 |
2790.2 |
188.33 |
0.0321 |
972 |
|
1000 |
4 |
1000 |
43.2 |
1043 |
72/4.21 |
7/2.80 |
8.41 |
42.1 |
3100.3 |
209.26 |
0.0289 |
1031 |
|
1120 |
4 |
1120 |
47.3 |
1167 |
72/4.45 |
19/1.78 |
8.9 |
44.5 |
3464.9 |
234.53 |
0.0258 |
1096 |
|
1250 |
8 |
1250 |
102 |
1352 |
84/4.35 |
19/2.61 |
13.1 |
47.9 |
4253.9 |
316.04 |
0.0232 |
1165 |
AAC is made of pure aluminium and offers the highest conductivity with lower mechanical strength, suitable for short and medium-span distribution lines. AAAC uses aluminium alloy strands, providing higher tensile strength and better corrosion resistance. ACSR combines aluminium strands with a steel core, offering the highest mechanical strength for long-span transmission lines and areas with high mechanical loads.
The galvanized steel core increases tensile strength and mechanical stability, allowing ACSR to withstand higher pulling tension and longer spans.
Yes. The reinforced steel core provides better resistance to mechanical stress, making it suitable for harsh weather conditions and long-span overhead lines.
Yes. ACSR is widely used in high-voltage overhead transmission systems due to its combination of conductivity and mechanical strength.
Common constructions include 6/1, 7/1, 18/1, 26/7, and 54/7, where the first number indicates aluminium strands and the second indicates steel core strands.
Typical accessories include suspension clamps, tension fittings, splice joints, connectors, and other overhead line hardware selected according to conductor size and project requirements.
