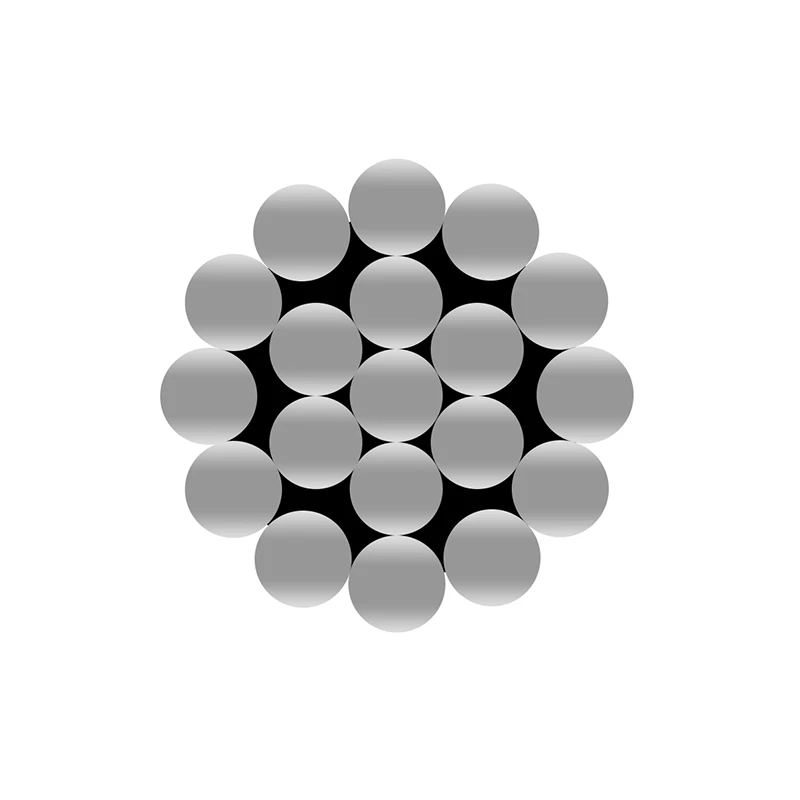

The AAAC Bare Conductor (All Aluminium Alloy Conductor) manufactured by Zhongdong Cable is designed for overhead power transmission and distribution networks requiring higher mechanical strength, excellent corrosion resistance, and reliable long-term outdoor performance.
AAAC is made entirely of aluminium alloy wires stranded concentrically to form a lightweight bare conductor. Compared with AAC, AAAC provides improved tensile strength and better resistance to environmental conditions while maintaining good electrical conductivity. It is widely used in overhead distribution and transmission systems, especially in coastal, industrial, and high-humidity areas.
|
Type |
AAAC (All Aluminium Alloy Conductor) |
Conductor Material |
Aluminium Alloy |
|
Construction |
Concentric stranded aluminium alloy wires |
Stranding |
7 / 19 / 37 / 61 strands (according to conductor size) |
|
Standard |
IEC 61089 / EN 50182 / ASTM B399 |
Application |
Overhead transmission and distribution lines |
|
Installation |
Outdoor aerial networks |
Operating Temperature |
Up to 75°C (standard design) |

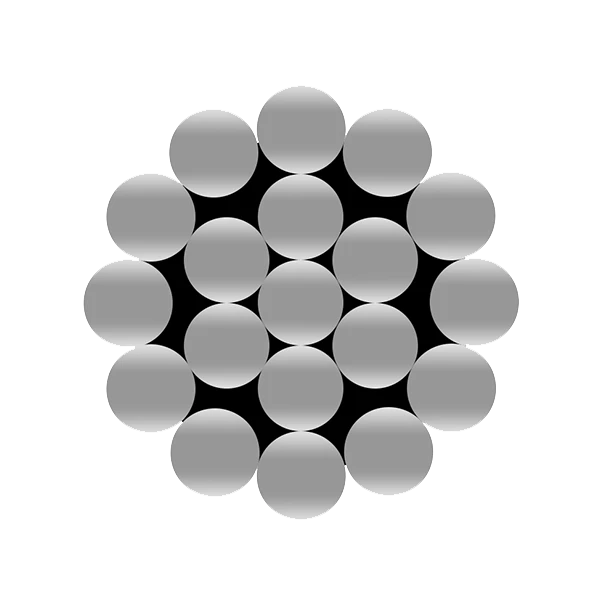

Conductor:
Stranded aluminium alloy wires provide higher tensile strength and improved mechanical performance compared with pure aluminium conductors.
Stranding:
Concentric layers of aluminium alloy wires are stranded together to achieve the required electrical and mechanical characteristics.
Surface:
Bare aluminium alloy surface suitable for overhead line installation and connection hardware.
AAAC bare conductors are widely used in overhead power systems where a balance between conductivity, strength, and corrosion resistance is required.
Typical applications include:
Medium and high-voltage overhead distribution lines
Urban and rural electrification networks
Coastal area power transmission lines
Industrial power supply networks
Long-span overhead crossings
Renewable energy grid connection lines
Areas with high humidity or corrosive environments
IEC 61089
ASTM B 399
BS EN 50182
AS 1531
GB/T 1179
AAAC/A2 IEC 61089
|
Code Number |
Area (mm2) |
No.of Wires |
Diameter (mm) |
Linear Mass (kg/km) |
Rated Strength (kN) |
DC Resistance (Ω/km) |
|
|
Wire |
Cond. |
||||||
|
16 |
18.4 |
7 |
1.83 |
5.49 |
50.4 |
5.43 |
1.7896 |
|
25 |
28.8 |
7 |
2.29 |
6.86 |
78.7 |
8.49 |
1.1453 |
|
40 |
46 |
7 |
2.89 |
8.68 |
125.9 |
13.58 |
0.7158 |
|
63 |
72.5 |
7 |
3.63 |
10.9 |
198.3 |
21.39 |
0.4545 |
|
100 |
115 |
19 |
2.78 |
13.9 |
316.3 |
33.95 |
0.2877 |
|
125 |
144 |
19 |
3.1 |
15.5 |
395.4 |
42.44 |
0.2302 |
|
160 |
184 |
19 |
3.51 |
17.6 |
506.1 |
54.32 |
0.1798 |
|
200 |
230 |
19 |
3.93 |
19.6 |
632.7 |
67.91 |
0.1439 |
|
250 |
288 |
19 |
4.39 |
22 |
790.8 |
84.88 |
0.1151 |
|
315 |
363 |
37 |
3.53 |
24.7 |
998.9 |
106.95 |
0.0916 |
|
400 |
460 |
37 |
3.98 |
27.9 |
1268.4 |
135.81 |
0.0721 |
|
450 |
518 |
37 |
4.22 |
29.6 |
1426.9 |
152.79 |
0.0641 |
|
500 |
575 |
37 |
4.45 |
31.2 |
1585.5 |
169.76 |
0.0577 |
|
560 |
645 |
61 |
3.67 |
33 |
1778.4 |
190.14 |
0.0516 |
|
630 |
725 |
61 |
3.89 |
35 |
2000.7 |
213.9 |
0.0458 |
|
710 |
817 |
61 |
4.13 |
37.2 |
2254.8 |
241.07 |
0.0407 |
|
800 |
921 |
61 |
4.38 |
39.5 |
2540.6 |
271.62 |
0.0361 |
|
900 |
1036 |
91 |
3.81 |
41.8 |
2861.1 |
305.58 |
0.0321 |
|
1000 |
1151 |
91 |
4.01 |
44.1 |
3179 |
339.53 |
0.0289 |
|
1120 |
1289 |
91 |
4.25 |
46.7 |
3560.5 |
380.27 |
0.0258 |
|
1250 |
1439 |
91 |
4.49 |
49.4 |
3973.7 |
424.41 |
0.0231 |
AAAC/A3 IEC 61089
|
Code Number |
Area (mm2) |
No.of Wires |
Diameter (mm) |
Linear Mass (kg/km) |
Rated Strength (kN) |
DC Resistance ((Ω/km) |
|
|
Wire |
Cond. |
||||||
|
16 |
18.6 |
7 |
1.84 |
5.52 |
50.8 |
6.04 |
1.7896 |
|
25 |
29 |
7 |
2.3 |
6.9 |
79.5 |
9.44 |
1.1453 |
|
40 |
46.5 |
7 |
2.91 |
8.72 |
127.1 |
15.1 |
0.7158 |
|
63 |
73.2 |
7 |
3.65 |
10.9 |
200.2 |
23.06 |
0.4545 |
|
100 |
116 |
19 |
2.79 |
14 |
319.3 |
37.76 |
0.2877 |
|
125 |
145 |
19 |
3.12 |
15.6 |
399.2 |
47.2 |
0.2302 |
|
160 |
186 |
19 |
3.53 |
17.6 |
511 |
58.56 |
0.1798 |
|
200 |
232 |
19 |
3.95 |
19.7 |
638.7 |
73.2 |
0.1439 |
|
250 |
290 |
19 |
4.41 |
22.1 |
798.4 |
91.5 |
0.1151 |
|
315 |
366 |
37 |
3.55 |
24.8 |
1008.4 |
115.29 |
0.0916 |
|
400 |
465 |
37 |
4 |
28 |
1280.5 |
146.4 |
0.0721 |
|
450 |
523 |
37 |
4.24 |
29.7 |
1440.5 |
164.7 |
0.0641 |
|
500 |
581 |
37 |
4.47 |
31.3 |
1600.6 |
183 |
0.0577 |
|
560 |
651 |
61 |
3.69 |
33.2 |
1795.3 |
204.96 |
0.0516 |
|
630 |
732 |
61 |
3.91 |
35.2 |
2019.8 |
230.58 |
0.0458 |
|
710 |
825 |
61 |
4.15 |
37.3 |
2276.2 |
259.86 |
0.0407 |
|
800 |
930 |
61 |
4.4 |
39.6 |
2564.8 |
292.8 |
0.0361 |
|
900 |
1046 |
91 |
3.83 |
42.1 |
2888.3 |
329.4 |
0.0321 |
|
1000 |
1162 |
91 |
4.03 |
44.4 |
3209.3 |
366 |
0.0289 |
|
1120 |
1301 |
91 |
4.27 |
46.9 |
3594.4 |
409.92 |
0.0258 |
AAC is made of pure aluminium and offers the highest conductivity with lower mechanical strength, suitable for short and medium-span distribution lines. AAAC uses aluminium alloy strands, providing higher tensile strength and better corrosion resistance. ACSR combines aluminium strands with a steel core, offering the highest mechanical strength for long-span transmission lines and areas with high mechanical loads.
AAAC provides higher mechanical strength and better corrosion resistance while maintaining good conductivity, making it suitable for areas requiring improved line reliability.
Yes. The aluminium alloy construction provides excellent resistance to corrosion and is commonly used in coastal and high-humidity areas.
In some applications, yes. AAAC can be used when corrosion resistance and reduced weight are important, while ACSR is preferred where maximum tensile strength is required.
Typical accessories include suspension clamps, tension clamps, connectors, and other overhead line fittings selected according to conductor size and installation conditions.
